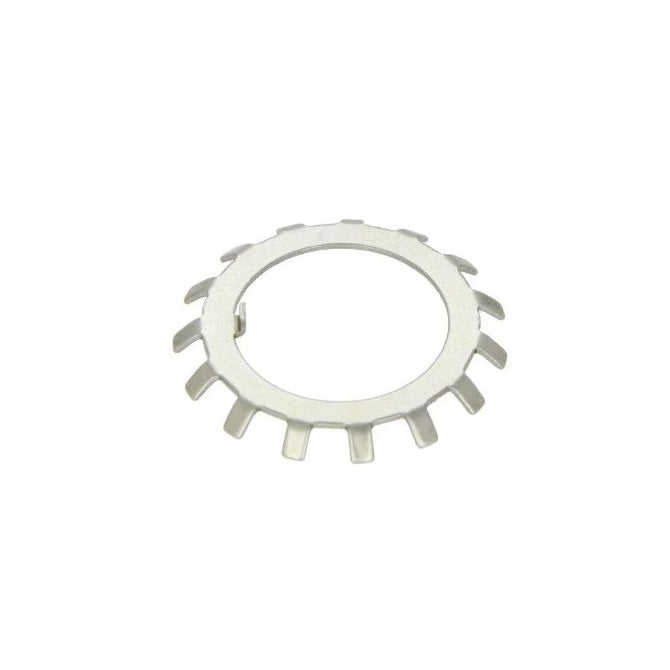

Washers - 75 mm x 98.03 mm x 19 Nr.
WLB075-098-17-BO (1000 Pcs)
Screws
Out Of Stock
Order 50 or more (50000 pcs) for $15,380.71 AUD per 1000
Base Category: Washers - Lock
Top Level Category: Washers - Lock - Tabbed - for Bearing Locknuts

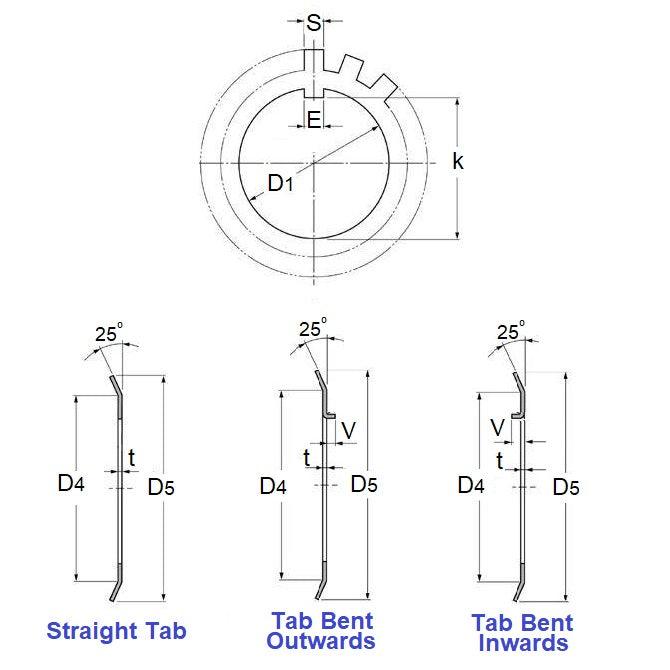

Product Details:Approx. ID (D1): 75.00mm
Spring Steel
- Approx OD (D5): 98.03mm
- Tabs: 19Nr.
- Inner Face (D4): 86.2mm
- thickness (t): 1.7mm
- Matching Locknut: NT-15
- Inner Tab Type: Bent Outwards
- Series: WT / Thin Type
Brand: MBA
Country of Origin: DE
Alternatives: WT15
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
