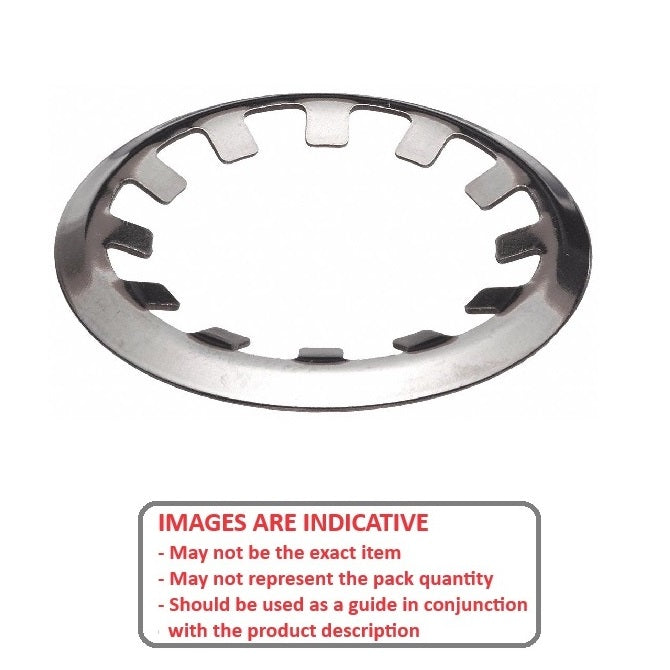

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

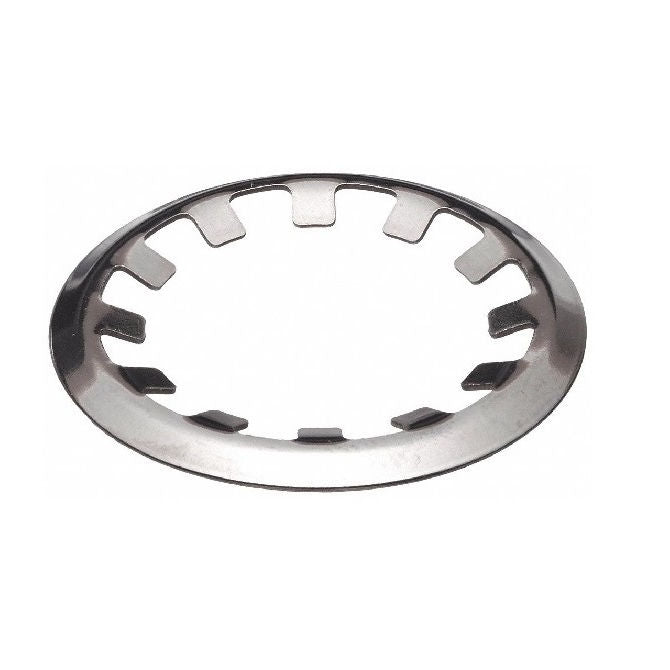

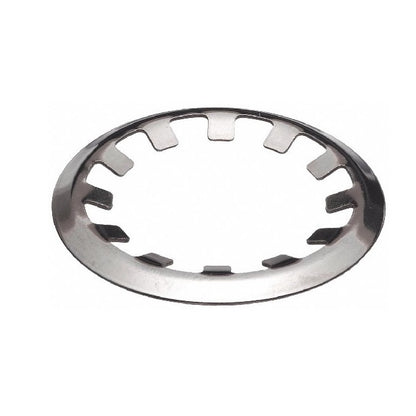

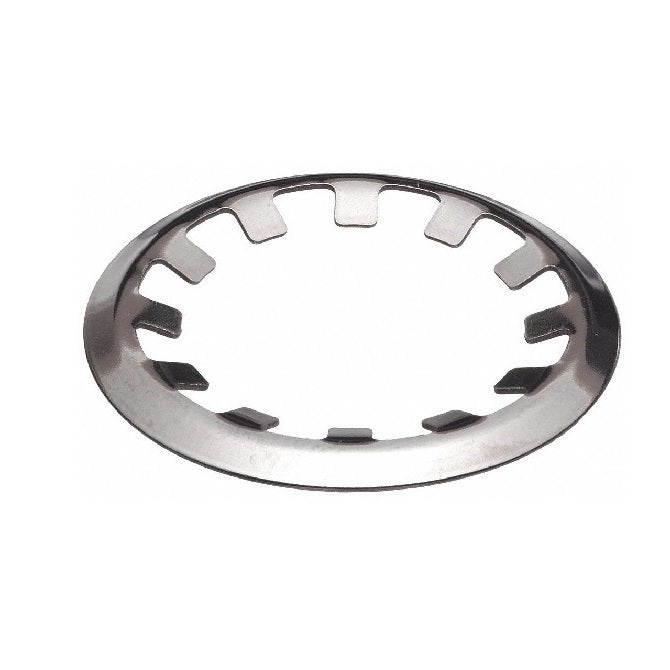

Push - 7.9 mm x 7.95 mm x 15.29 mm
RPO-079-080A-SP15 (20 Pcs)

MBA

Price:
$7.32 AUD
$7.32 AUD
per 20
Qty: 20 available now (400 pcs)
Order 50 or more (1000 pcs) for $6.59 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 06, 2025

Base Category: Push On Retaining Rings - Stainless Steel

Top Level Category: Push On Retaining Rings - Stainless Steel

Product Details:

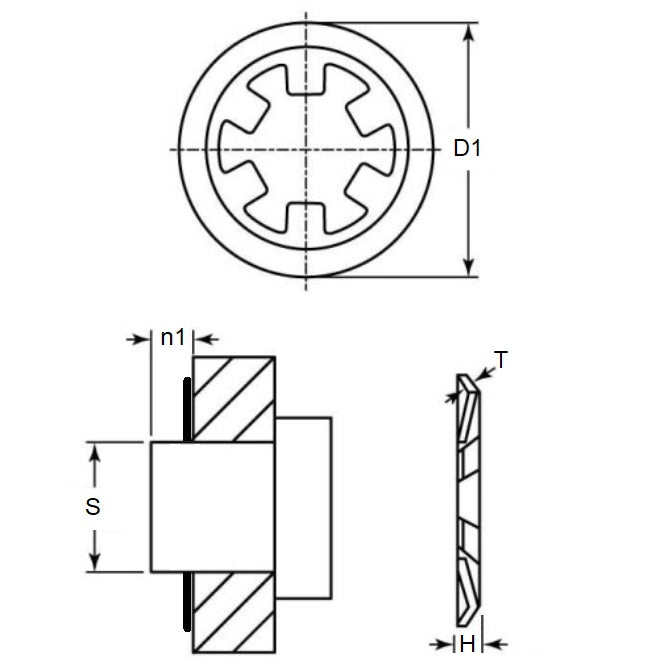

Min shaft size (s1): 7.90mm
Stainless PH 15-7-17-7
  • Max Shaft Size (s2): 7.95mm
  • Outside diameter (D1): 15.29mm
  • Min shaft extension (n1): 1.88mm
  • Material Thickness (t): 0.25mm
  • Approx. Thrust Load: 80kg
  • Number of prongs: 6
  • Approx. Push On Force: 22kg

Brand: MBA
Country of Origin: GB

Alternatives: S5821

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
