W0040-D-008-004-S4 (PK-100)

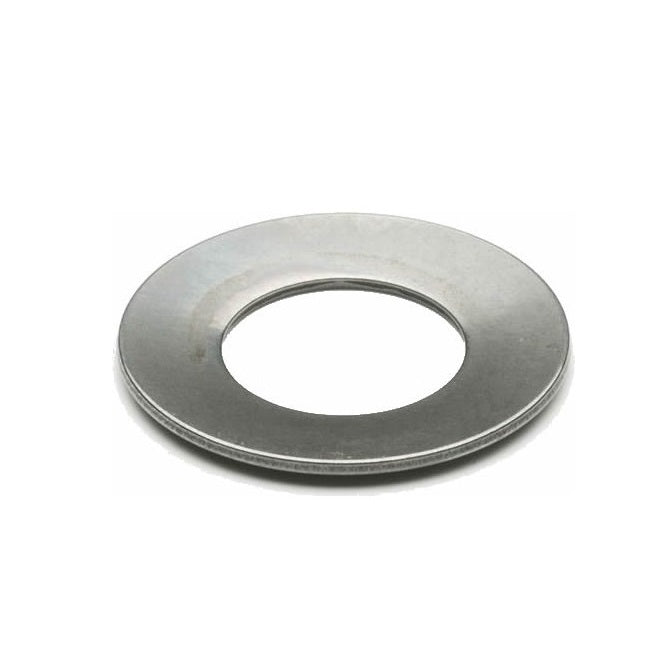

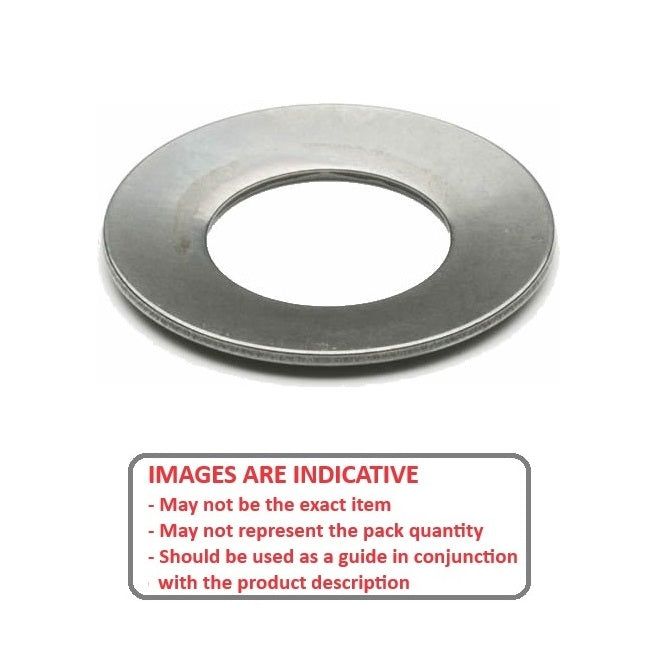

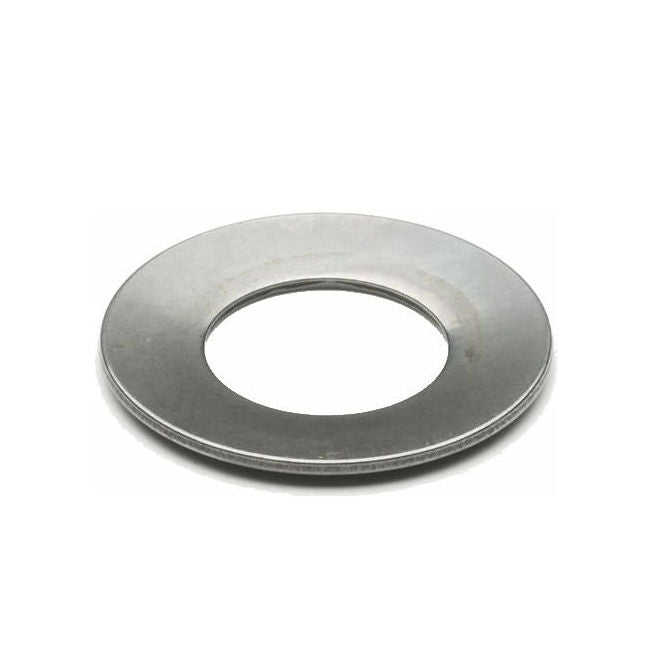

Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more packs of 100 (5000 pcs)
for $5.61 AUD per 100 pack
5/16x5/32 inch Washer - 7.94x3.96x0.41 mm Disc Spring Washers - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per pack of 100:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Standard - Stainless Steel
Product Details

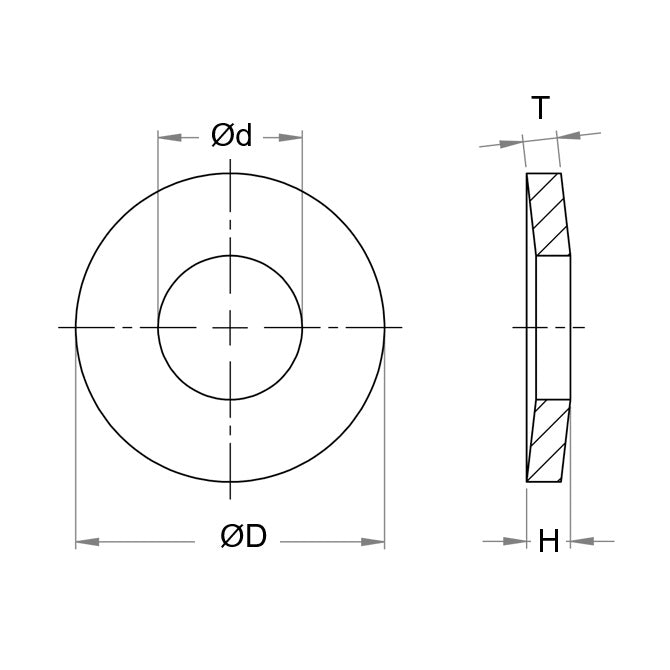

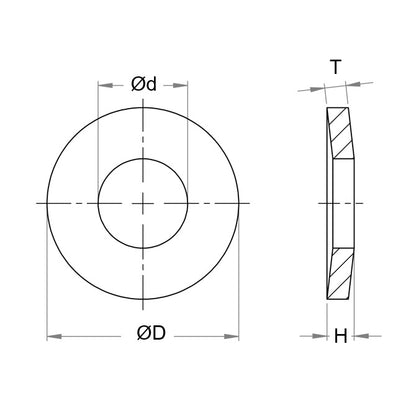

Nominal Outside Diameter (A): 7.94mm+ 0.01 / + 0.07
(7.94mm is 0.313 in.)
Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Nominal Outside Diameter (A): 7.94mm
+ 0.01 / + 0.07
(7.94mm is 0.313 in.)
- Nominal Inside Diameter (B): 3.96mm
+ 0.10 / - 0.00
(3.96mm is 0.156 in.)
- Stock Thickness (C): 0.41mm
(0.41mm is 0.016 in.)
- Load to flatten: 33.48kg
- Loaded Height (L1): 0.53mm
- Load at L1: 18.3kg
- Free Height (E): 0.64mm
- Inside Height (D): 0.23mm
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- A7X910016
- A7X9-10016
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0040D008004S4, W0040D008
