REF-079-R-CN (PK-100)

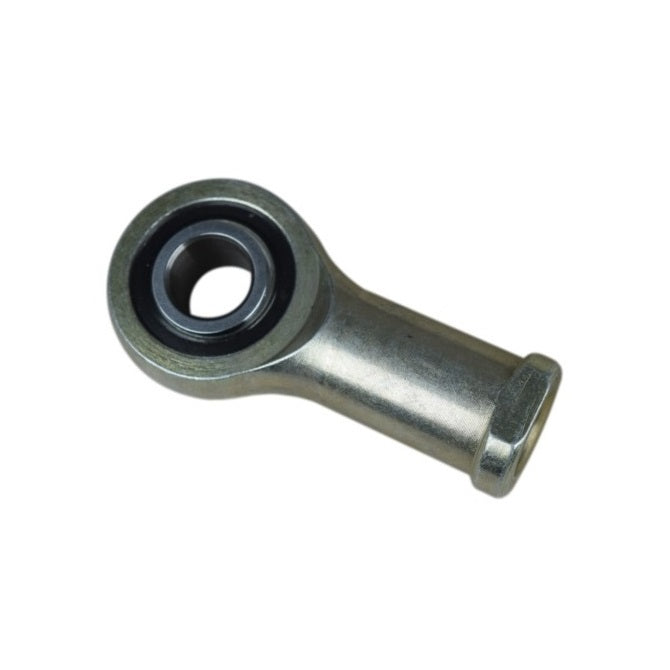

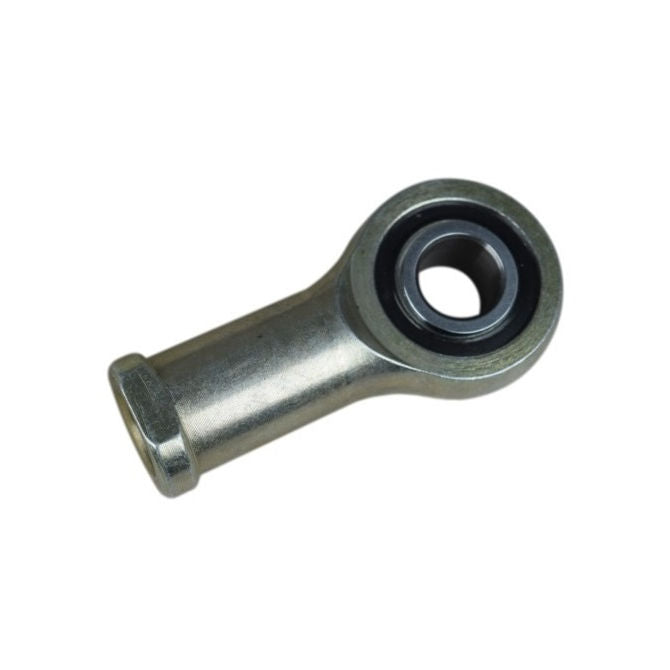

Female Rod Ends - 7.938x46.02 mm - 5/16-24 UNF Right - Steel with Nylon Raceway Rod End
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 100 (5000 pcs)
for $1,823.53 AUD per 100 pack
5/16x1-13/16 inch Rod End - 7.938x46.02 mm - 5/16-24 UNF Right Female Rod Ends - Steel with Nylon Raceway - Sold per pack of 100:
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Steel - Plain - Nylon Raceway

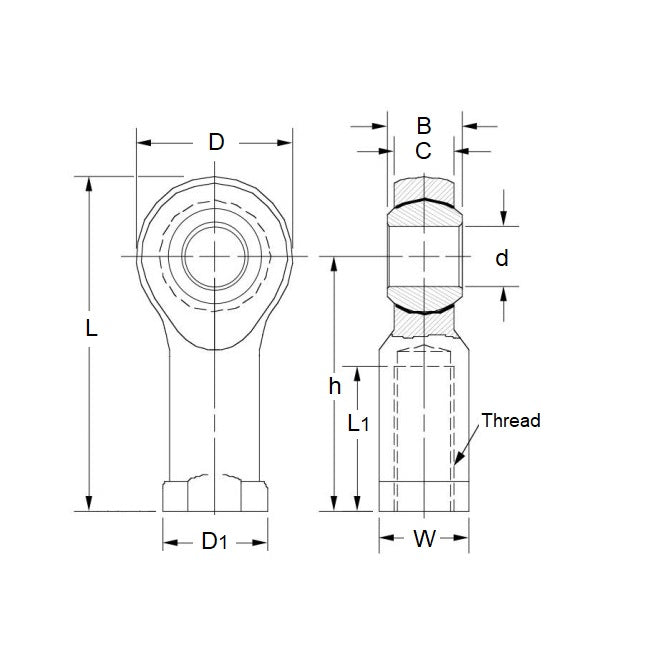

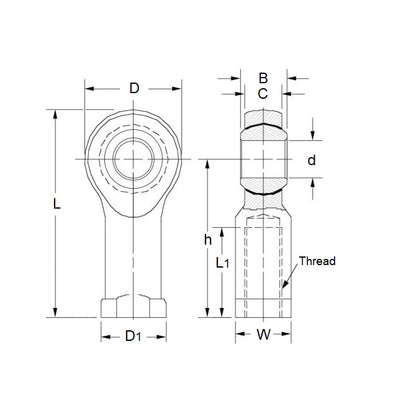

Product Details
Eye Size (d1): 7.938mm(7.938mm is 0.313 in.)
Steel with Nylon Raceway
- Eye Size (d1): 7.938mm
(7.938mm is 0.313 in.)
- Overall Length (L): 46.02mm
(46.02mm is 1.812 in.)
- Thread Size: 5/16-24 UNF Right
- Thread Length (l2): 19.05mm
- Head Width (W): 8.74mm
- Eye Width (W1): 11.10mm
- Head Diameter (D): 22.23mm
- Centre Height (l1): 34.93mm
- Body Width/Flange Width(W2/D3): 11.10 / 12.70mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Small Parts REJF-5
- Reid Tool® SPF-5
- REJF5
- SPF5
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF079RCN, REF079
