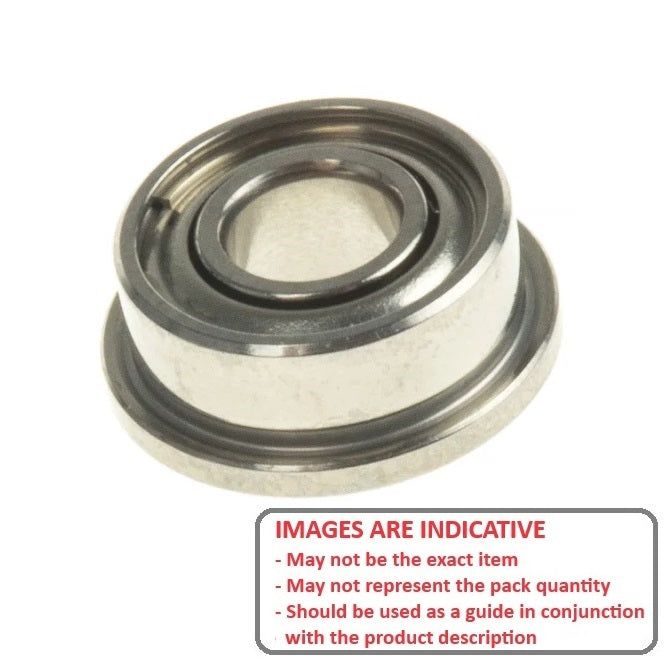

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

Bearings - 6 mm x 10 mm x 3 mm
FMR106A-ZZS-MC3

Name: 1067607 | FMR106A-ZZS-MC3 --- Bearings - 6 mm x 10 mm x 3 mm
Brand: MBA
SKU: FMR106AZZSMC3
Price: 4.86 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.86 AUD

Each
Qty: 330 available now
Order 50 or more for $4.37 AUD Each

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 02, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

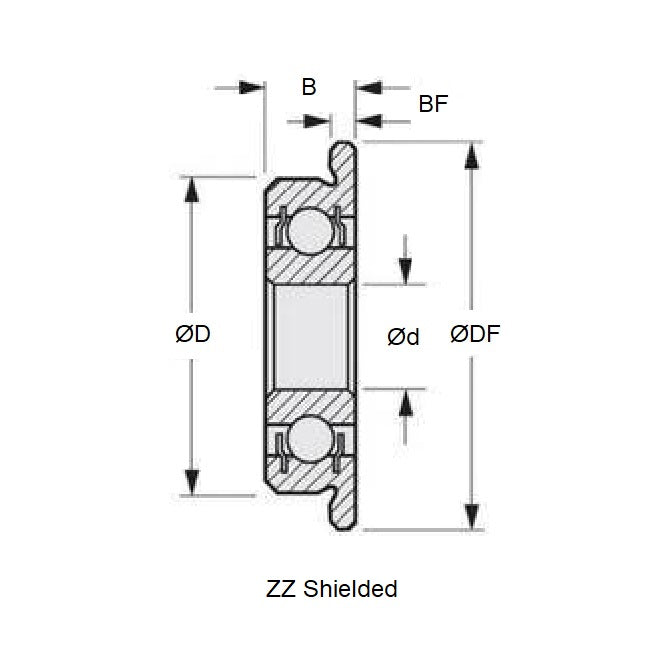

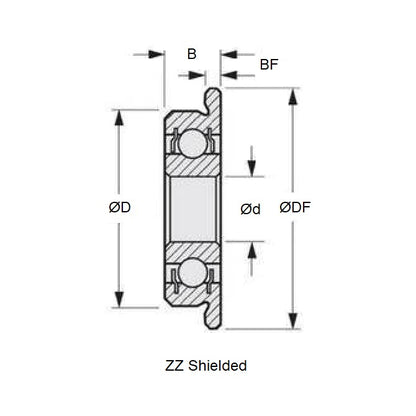

Product Details:

ID (d): 6.000mm
_{+0.000/-0.0075}

SAE52100 Chrome Steel

OD (D): 10.000mm
_{+0.000/-0.0075}
Width (B): 3.000mm
_{+0.000/-0.125}
Flange Diameter (DF): 11.200mm
Flange Width (BF): 0.600mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Alternatives: 1320, 2500-065, 435, 487B, 57155K584, 6112, 6x10, F6M10-ZZ, FLAW676-ZZA, LF1060-ZZ, MF106-ZZ, MLF6010-ZZ

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for RC Car Parts, RC Helicopter Parts. Brands: Academy and MRC, Century, Cox, Cross Fire Force, GMP, GS / General Silicone, Hirobo, HPI, Kyosho, Miniature Aircraft, NEO, Picco, Royal, Serpent, XTM Racing. Models: 1-10 Scale Attack 4WD, 4WD Sport, 835 1-10 2WD, 835 1-10 4WD, 9000, 950, 950R, 950R With Front Wheel Upgrade, 950R With STE Ten and Front Wheel UP, 950R With Steering and Tensioner, 960, 960 FD, Assault, Bandito, Beetle, Cobra, Competition, Cricket, Eli.
