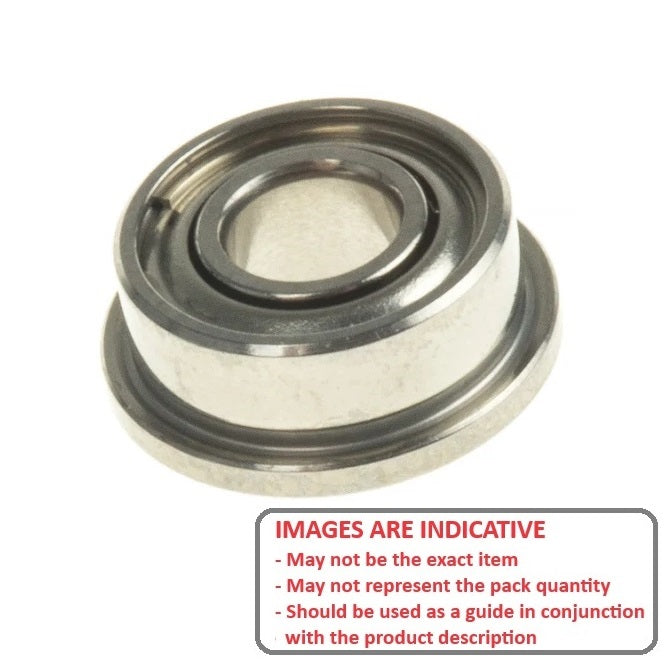

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

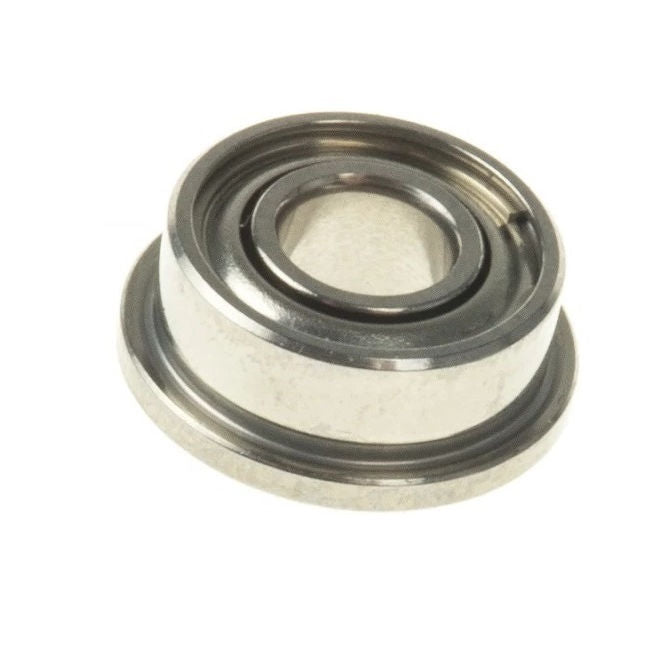

Bearings - 6 mm x 10 mm x 3 mm
FMR106A-CSN-ZZS-ACO-ECO

MBA

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.01 AUD
$7.62 AUD $4.01 AUD
Each
Qty: 257 available now
Order 50 or more for $3.61 AUD Each
Only 257 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

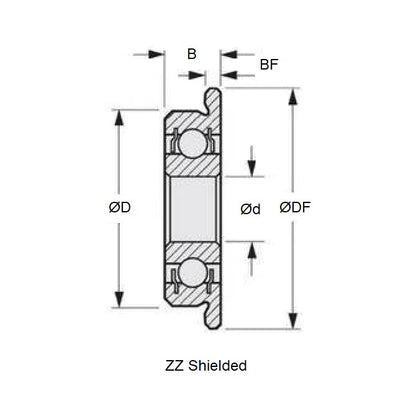

Product Details:

ID (d): 6.000mm
SAE52100 Chrome Steel / Si3N4 Ceramic Balls
  • OD (D): 10.000mm
  • Width (B): 3.000mm
  • Flange Diameter (DF): 11.200mm
  • Flange Width (BF): 0.600mm
  • Precision Grade: Abec 1
  • Closure Type: ZZS
  • Bearing Type: Radial Flanged

Brand: ECO
Country of Origin: TW

Alternatives: MF106-ZZC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for RC Car Parts. Brands: Academy and MRC, Cox, Cross Fire Force, GS / General Silicone, HPI, Kyosho, NEO, Picco, Royal, Serpent, XTM Racing. Models: 4WD Sport, 835 1-10 2WD, 835 1-10 4WD, 950, 950R, 950R With Front Wheel Upgrade, 950R With STE Ten and Front Wheel UP, 950R With Steering and Tensioner, 960, 960 FD, Bandito, Excel 1/8 Gas, F1 Electric, Impact 10 M2 Challenger, Impact 10 Pro 2, Impact M.
