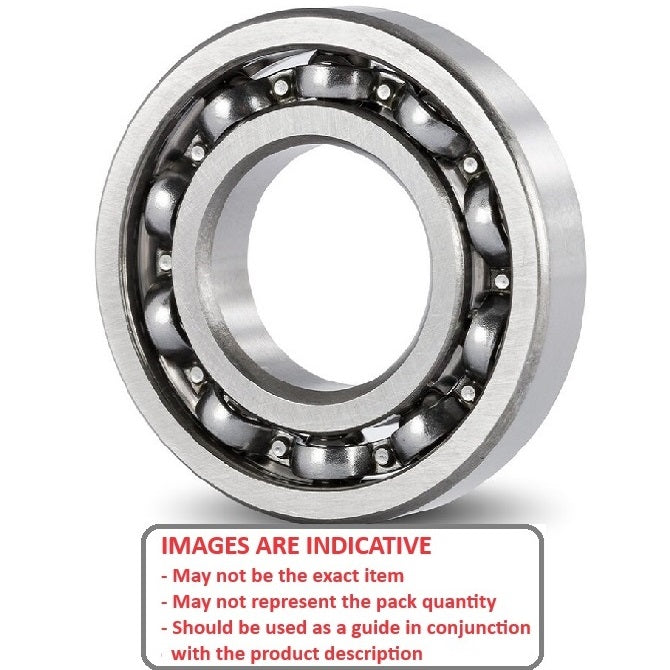

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

Bearings - 6 mm x 10 mm x 2.5 mm
MR106-MC3-AF12

Name: 1067563 | MR106-MC3-AF12 --- Bearings - 6 mm x 10 mm x 2.5 mm
Brand: MBA
SKU: MR106MC3AF12
Price: 6.23 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$6.23 AUD

Each
Qty: 2 available now
Order 50 or more for $5.61 AUD Each

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 02, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details:

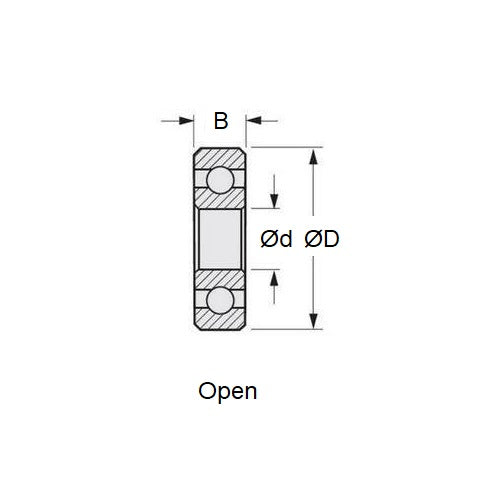

ID (d): 6.000mm
_{+0.000/-0.0075}

SAE52100 Chrome Steel

OD (D): 10.000mm
_{+0.000/-0.0075}
Width (B): 2.500mm
_{+0.000/-0.125}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Alternatives: 617-6, 676, 676A, 6M10, L1060, ML6010, MR106, W676

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for RC Helicopter Parts, RC Nitro Engine Parts. Brands: Cox, Kyosho, Mikado, Miniature Aircraft. Models: CONCEPT 30 SR-T, Fury, Logo 10, Logo 10 3D Version, Logo 14, Logo 14 Carbon, Logo 20, TD049, X-Cell 30-40, X-Cell 30-40 All, X-Cell 50-60, X-Cell 50-60 All.
