B-025T-0064-0060-PSA (Each)

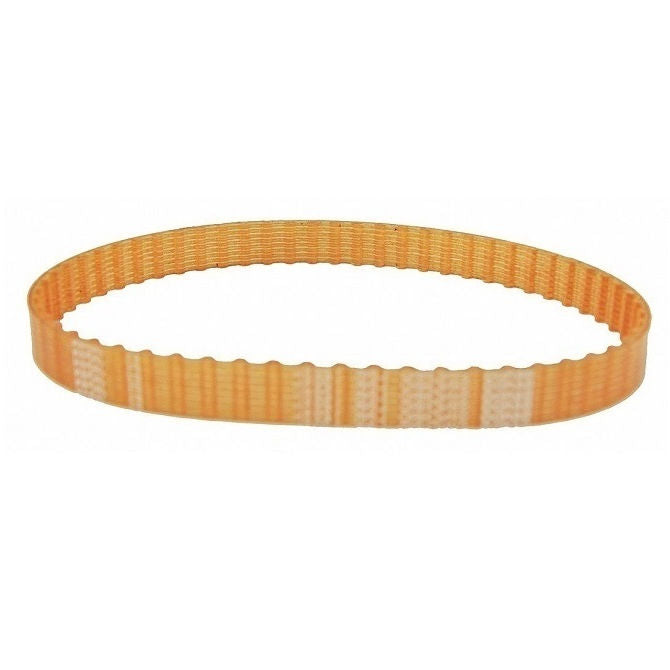

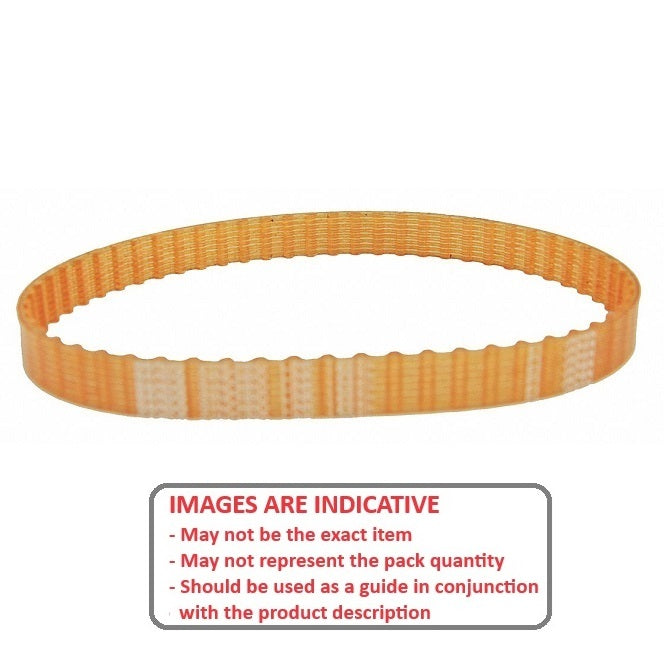

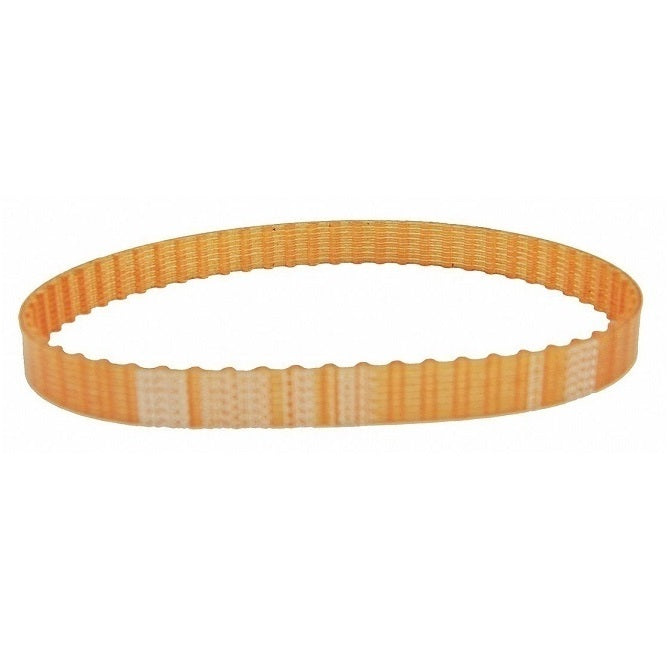

Timing 2.5mm Pitch T2.5 Belts - 64 tooth - 160x6 mm 6mm Wide - Polyurethane with Steel Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Timing Belts Catalogue PDF
Idler Pulleys
2.5mm T2.5 Timing Pulleys
Order 50 or more
for $16.57 AUD Each
64 tooth - 160x6 mm Timing 2.500mm Pitch T2.5 Belts - Polyurethane with Steel Cords - Sold per Each:
Base Category: Belts - Timing 2.500mm Pitch T2.5
Top Level Category: Belts - Timing 2.500mm Pitch T2.5 - 6mm Wide
Product Details
Number of Teeth: 64Polyurethane with Steel Cords
- Number of Teeth: 64
- Length: 160mm
(160mm is 6.299 in.)
- Width: 6.0mm
(6.0mm is 0.236 in.)
- Reinforcement: Steel
- Appearance: Amber
- Breaking Strength: 234N
- Min Temperature: -18Deg C
- Max Temperature: 82Deg C

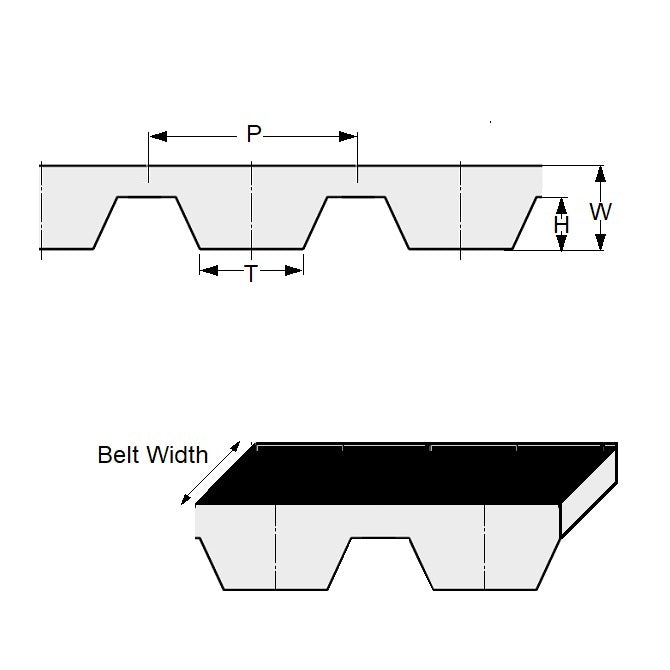

- Tooth Angle (A): 40°
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® 6T2.5-160
- 6T25160
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
B025T00640060PSA, B025T0064
