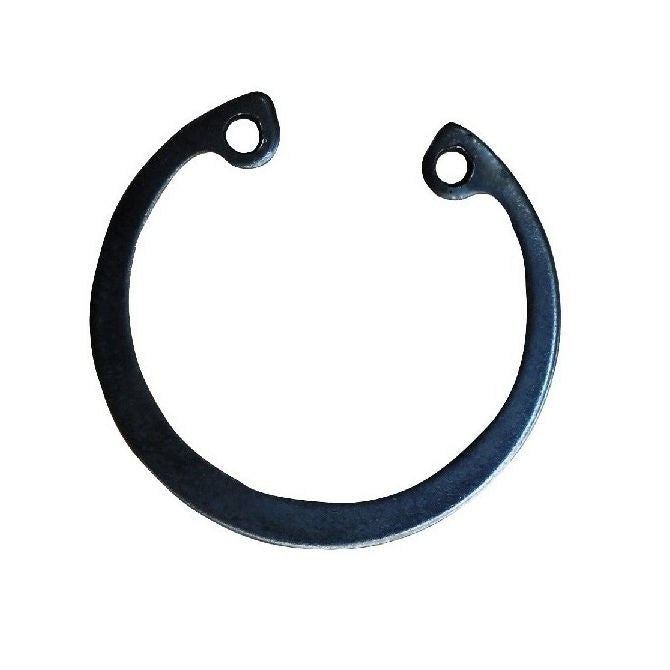

Circlips - 63 mm x 2 mm x 66 mm
CCI-06300-C (2 Pcs)
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Qty: 16 available now (32 pcs)
Order 50 or more (100 pcs) for $4.55 AUD per 2
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Product Details:Additional stock available from USA subject to Prior Sale = 269

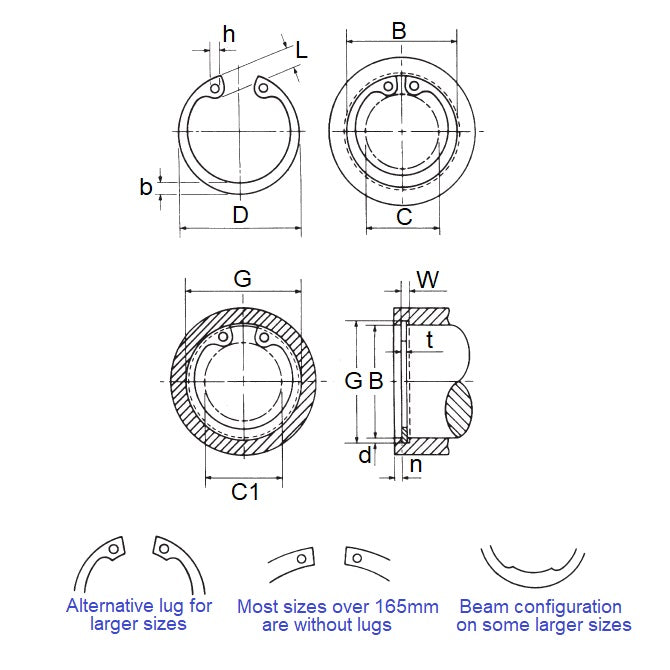

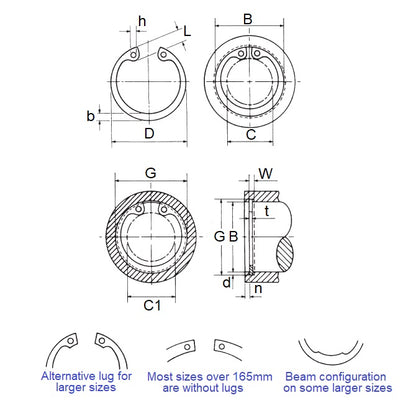

Housing Bore (B): 63.00mm
Carbon Steel
- Clip Thickness (T): 2.00mm
+0.30/-0.00
- Groove Dia. (Dg): 66.00mm
+0.00/-0.07
- Approx. Loose Circlip OD (Dr): 67.20mm
+1.10/-0.46
- Groove Width (W): 2.15mm
+0.13/-0.00
- Clearance in Bore (C): 47.70mm
- Clearance in Groove (C1): 51.40mm
- Min. Lug Diameter (h): 2.50mm
- Min. Extension (n): 4.50
- Standard: DIN472
Brand: MBA
Country of Origin: US
Alternatives: 1300-0630, 1300-0630APP, D1300-0630, D1300-0630APP, DHO-063, J63, J63-S, J63X2, NZT.J
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
