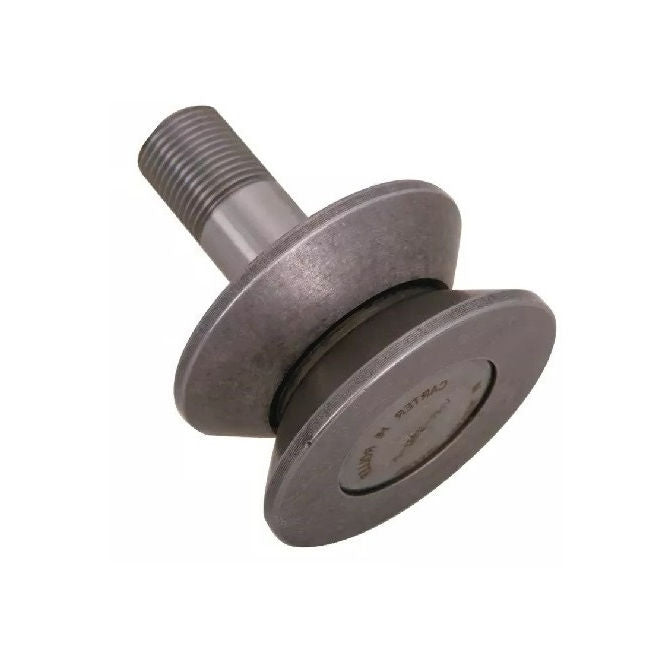

CCF305RS (Each)
V-Groove Cam Followers - 63.5x77.8 mm - 3/4-16 UNF - Steel Cam Follower
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $309.89 AUD Each
2-1/2x3-1/16 inch Cam Follower - 63.5x77.8 mm - 3/4-16 UNF V-Groove Cam Followers - Steel - Sold per Each:
Base Category: Cam Followers - V-Groove
Top Level Category: Cam Followers - V-Groove
Product Details
Diameter (A): 63.500mm(63.500mm is 2.5 in.)
Steel
- Diameter (A): 63.500mm
(63.500mm is 2.5 in.)
- Length: 77.800mm
(77.800mm is 3.063 in.)
- Thread: 3/4-16 UNF
- Thread Length (M): 22.225mm
- Roller Width (B): 33.350mm
- Groove Diameter (F): 38.100mm
- Centre of Groove (G): 17.475mm
- Dyanmic Radial Load: 1250kg
- Dynamic Thrust Load: 770kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 6318K63
- Reid Tool® CCF-305
- CCF305
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
