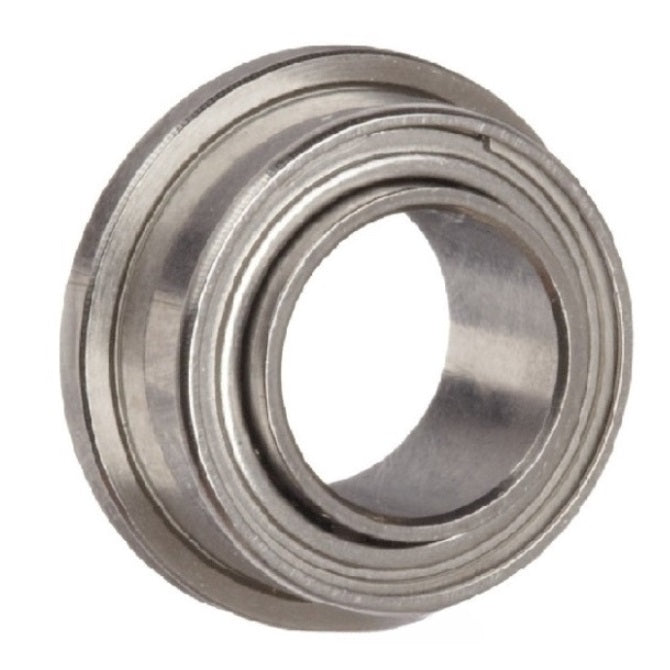

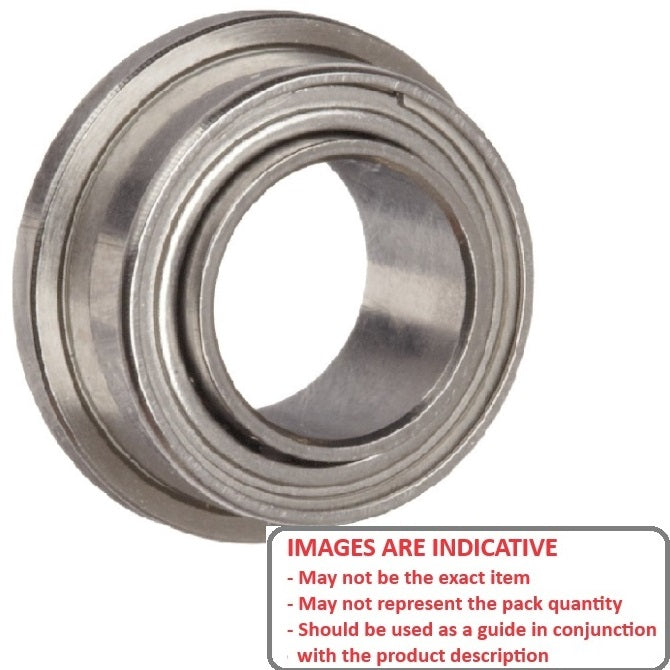

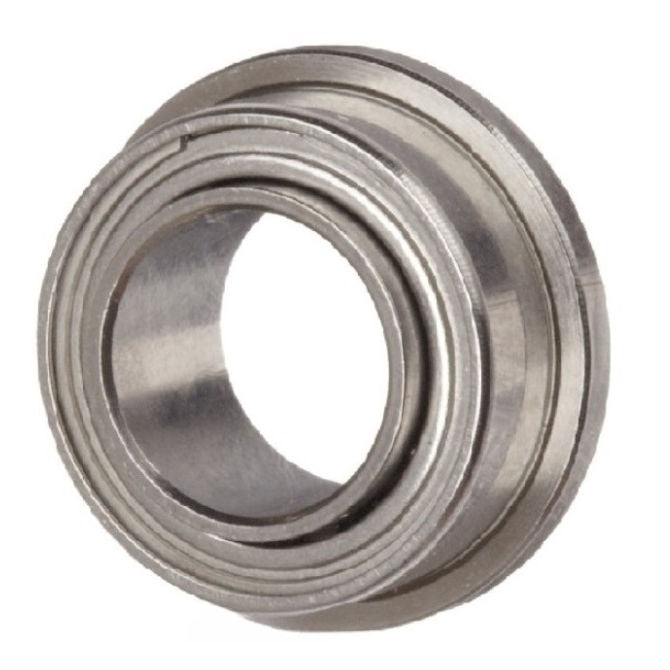

Bearings - 6.35 mm x 9.525 mm x 3.175 mm
SFWR168-ZZS-MC3-JP6 (5 Pcs)
Tolerances
Standard Bearings PDF Catalogue
Shafting
Qty: 20 available now (100 pcs)
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

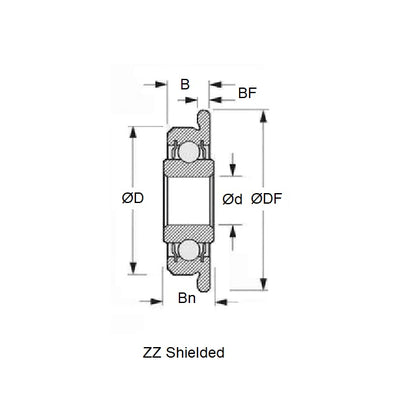

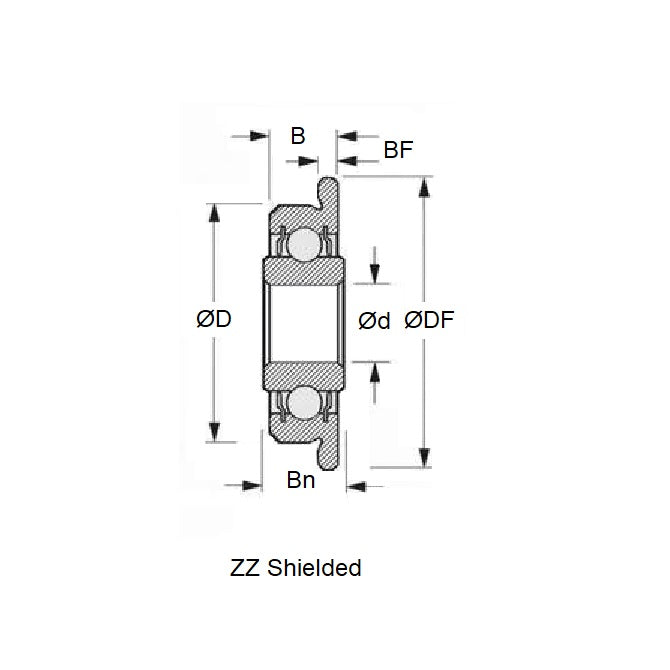

Product Details:ID (d): 6.350mm
+0.000/-0.007
AIS I 440C Stainless Steel
- OD (D): 9.525mm
+0.000/-0.007
- Width (B): 3.175mm
+0.000/-0.120
- Inner Ring Width (Bn): 3.969mm
- Flange Diameter (DF): 10.719mm
- Flange Width (BF): 0.914mm
- Precision Grade: P6
- Closure Type: ZZS
- Bearing Type: Radial Flanged with Extended Inner
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: A7Y55-GSS3725G, P6-SFRW168SS, SFE6350A-2Z-P6, SFRW168-ZZ-P6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
