KW-064-078-185-CH (PK-9)

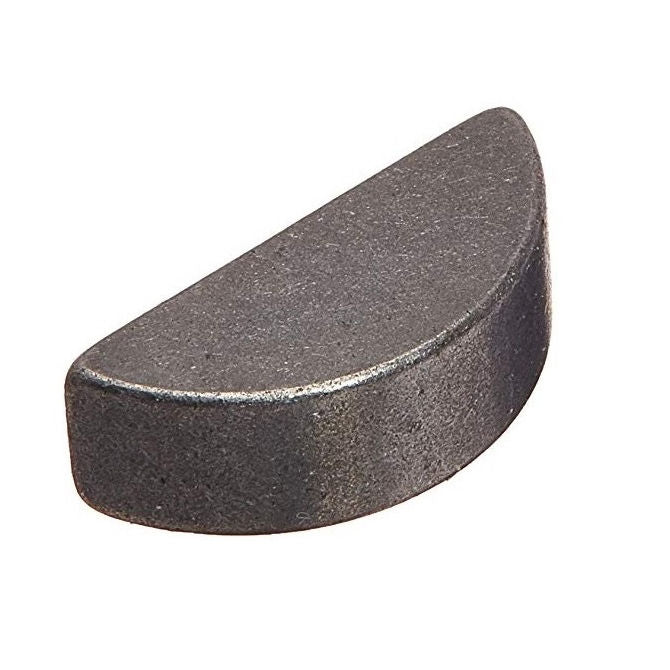

Woodruff Keys - 6.35x7.8x18.54 mm Plain - Carbon Steel C45 Hardened Key
ExaktKey
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportKeysteel Catalogue PDF
Order 50 or more packs of 9 (450 pcs)
for $11.75 AUD per 9 pack
1/4 inch Key - 6.35x7.8x18.54 mm Woodruff Keys - Carbon Steel C45 Hardened - Sold per pack of 9:
Base Category: Keys - Woodruff
Top Level Category: Keys - Woodruff - Plain
Product Details
Additional stock available from USA subject to Prior Sale = 2080
Thickness (S): 6.35mm
+/- 0.025
(6.35mm is 0.25 in.)
Carbon Steel C45 Hardened
- Thickness (S): 6.35mm
+/- 0.025
(6.35mm is 0.25 in.)
- Approx. Height (H): 7.8mm
+/- 0.250
(7.8mm is 0.307 in.)
- Approx. Length (L): 18.54mm
(18.54mm is 0.73 in.)
- Basis Diameter (D): 19.05mm
- Finish: Plain
- Hardness: HRC 40-50
Brand: ExaktKey
Country of Origin: US
Product Compliance and Data
Similar to
- NoCor® 806H
- ANSI 806-H
- Key Size 91 Hardened
- Huyett® WKA-091
- NoCor® WKA091
- KW064191CH
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
KW064078185CH, KW064078
