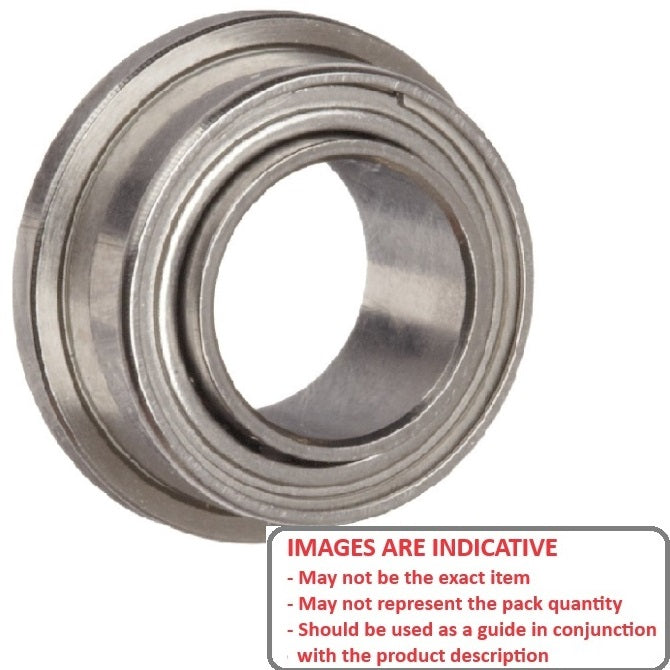

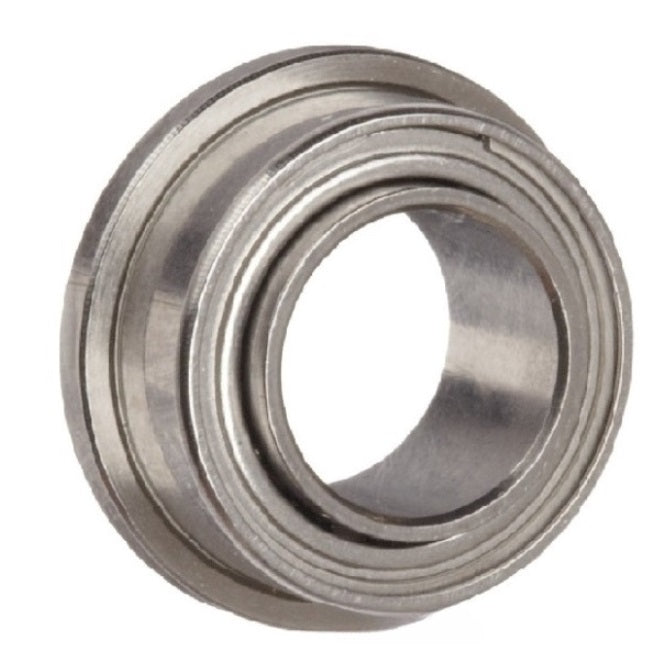

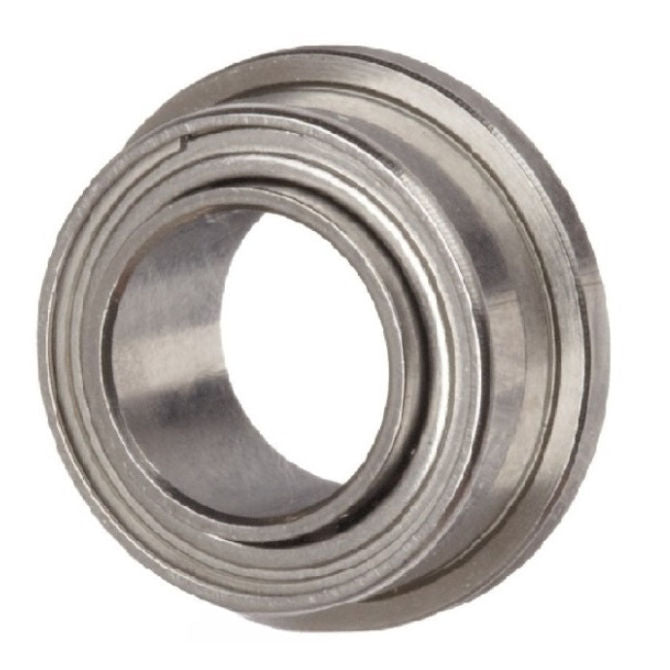

Single Row Ball Bearings - 6.35 mm x 12.7 mm x 4.762 mm / 6 mm
SFWR188A-ZZS-MC34-U3-G5

Name: 1073324 | SFWR188A-ZZS-MC34-U3-G5 --- Single Row Ball Bearings - 6.35 mm x 12.7 mm x 4.762 mm / 6 mm
Brand: MBA
SKU: SFWR188AZZSMC34u3G5
Price: 54.77 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$54.77 AUD

Each
Out Of Stock
Order 50 or more for $49.29 AUD Each

Pre-Order now! Backorders for more than the stock quantity are expected before Feb 15, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

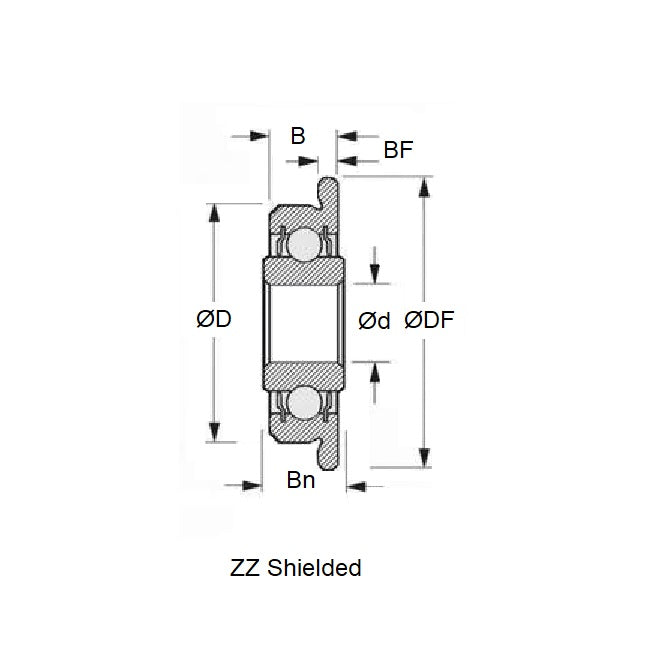

Product Details:

ID (d): 6.350mm
_{+0.000/-0.005}

AIS I 440C Stainless Steel

OD (D): 12.700mm
_{+0.000/-0.0075}
Width (B): 4.762mm
_{+0.000/-0.125}
Inner Ring Width (Bn): 5.558mm
Flange Diameter (DF): 13.894mm
Flange Width (BF): 1.143mm
Precision Grade: Abec 3
Closure Type: ZZS
Bearing Type: Radial Flanged with Extended Inner

Brand: MBA
Country of Origin: US

Alternatives: A7Y55-GSS5025G

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
