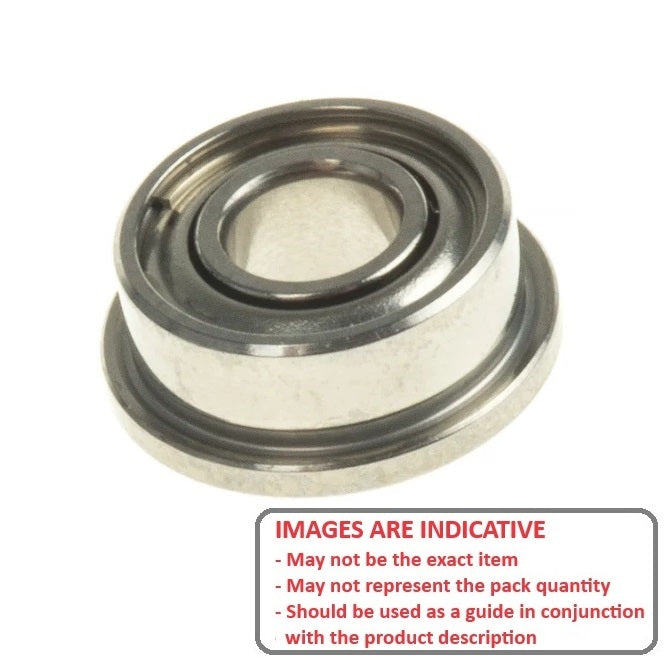

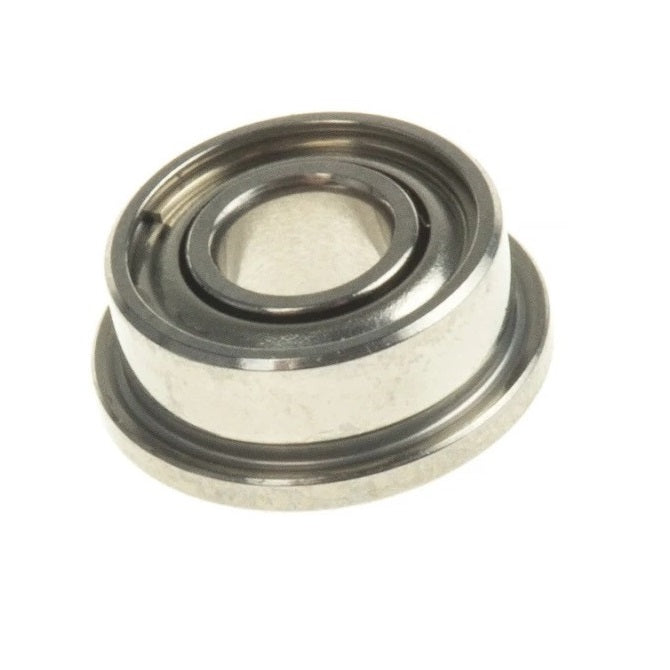

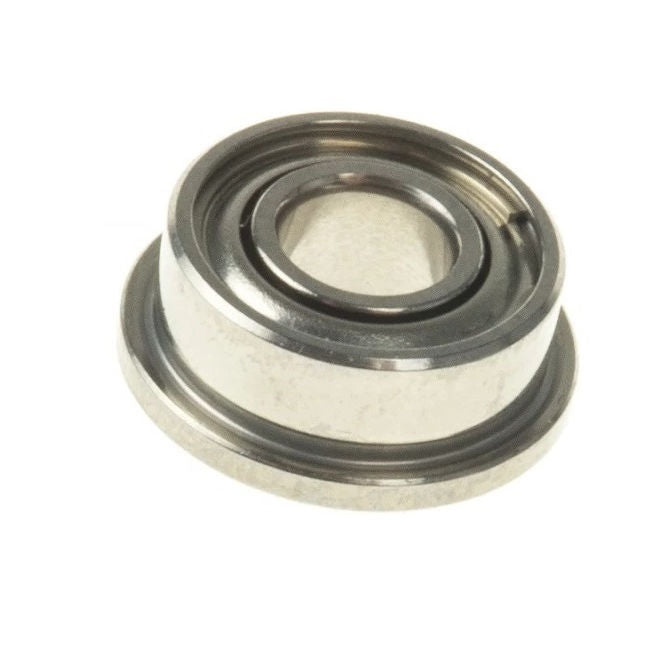

FR188A-ZZS-ECO (2 Pcs)
Tolerances
Standard Bearings PDF Catalogue
Shafting
Qty: 286 available now (572 pcs)
Order 50 or more (100 pcs) for $3.97 AUD per 2
Base Category: Bearings - Single Row Ball Flanged
Top Level Category: Bearings - Single Row Ball Flanged - Standard - Chrome Steel

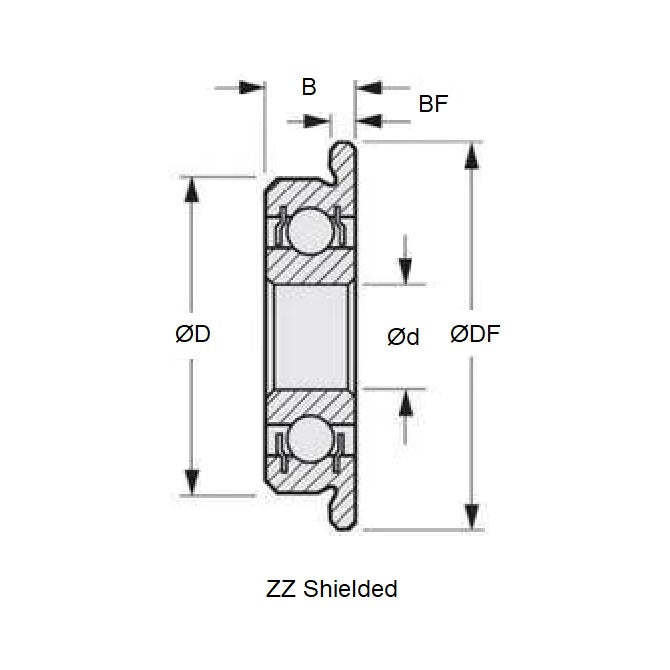

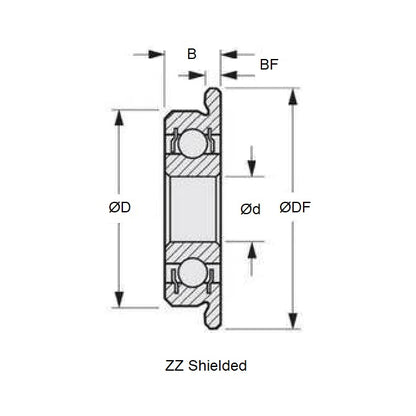

ID (d): 6.350mm
SAE52100 Chrome Steel
- OD (D): 12.700mm
- Width (B): 4.762mm
- Flange Diameter (DF): 13.894mm
- Flange Width (BF): 1.143mm
- Precision Grade: Economy
- Closure Type: ZZS
- Bearing Type: Radial Flanged
Brand: ECO
Country of Origin: TW
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
Used for RC Car Parts. Brands: Associated, Duratrax. Models: GT10, RC500 Gas, RC500 Gas 4WD.
