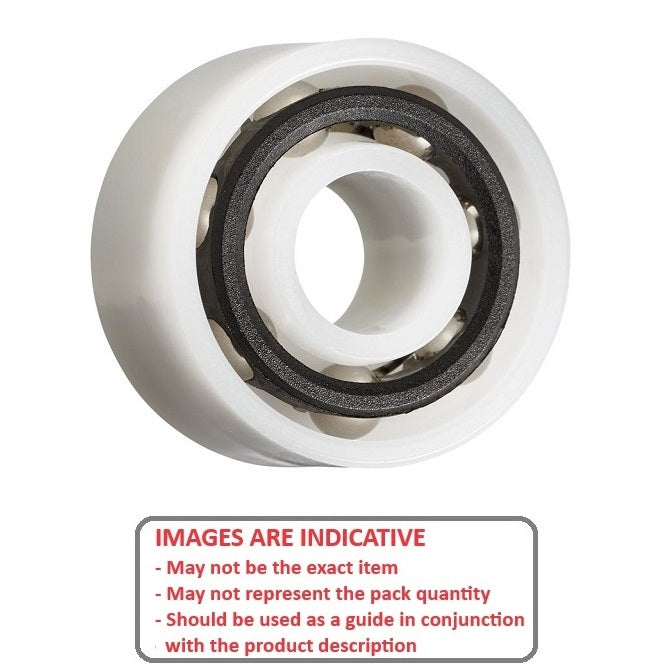

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

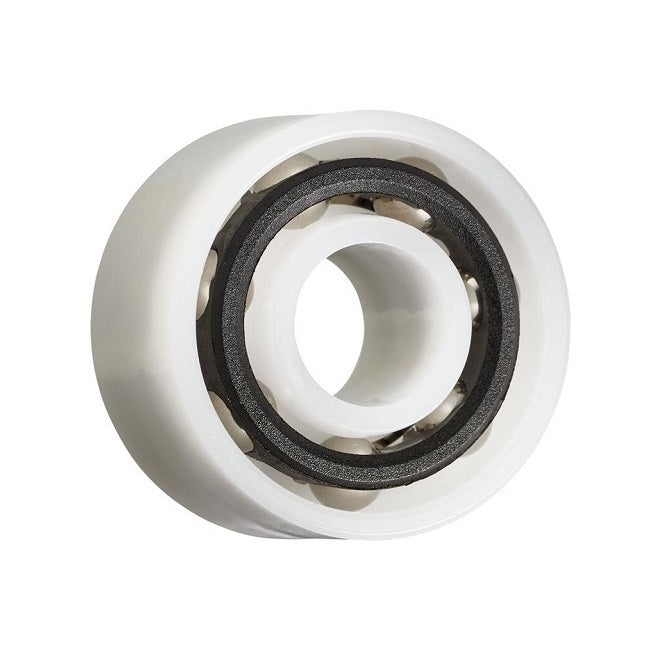

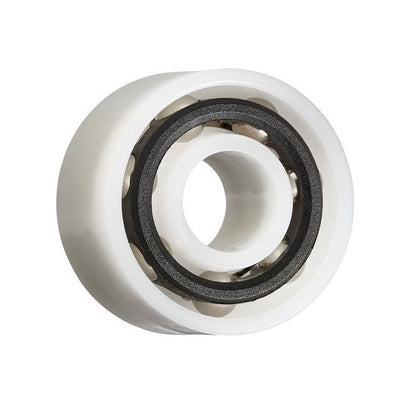

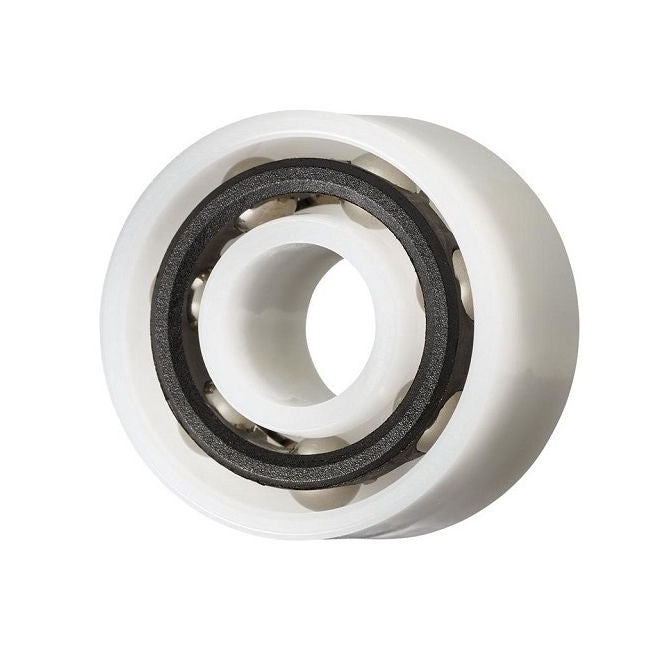

Bearings - 6.35 mm x 15.875 mm x 9.525 mm
P-DR-R4G-AS6

MBA

Additional resources:
Tolerances
Acetal Bearings PDF Catalogue
Shafting
Price:
$77.14 AUD
$77.14 AUD
Each
Qty: 1 available now
Order 50 or more for $69.43 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 16, 2025

Base Category: Bearings - Double Row Ball Semi Precision

Top Level Category: Bearings - Double Row Ball Semi Precision - Acetal with Stainless Balls

Product Details:

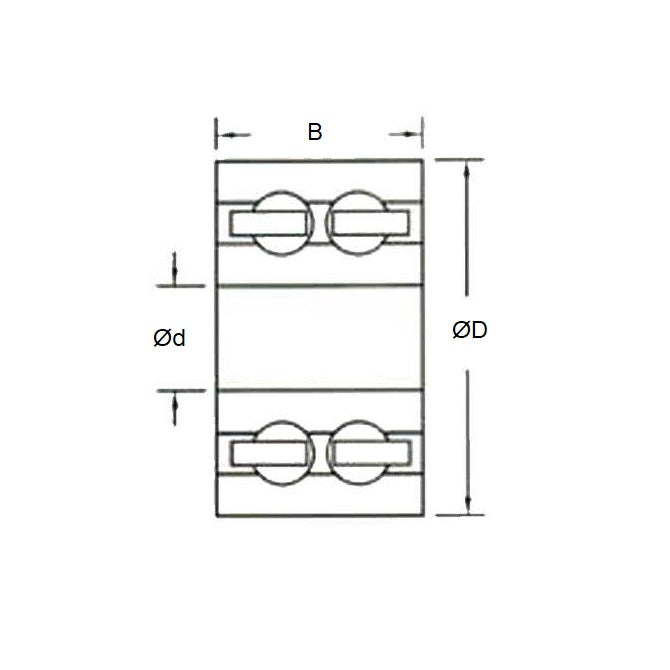

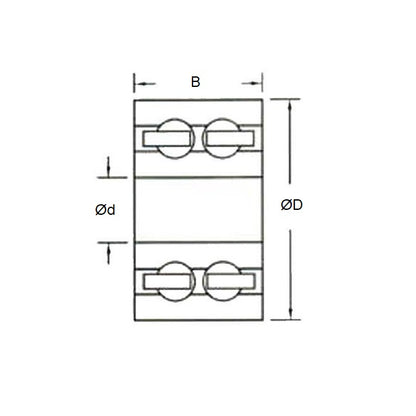

ID (d): 6.350mm
+0.076/-0.000

Acetal with 316 Stainless Balls
  • OD (D): 15.875mm
    +0.000/-0.076
  • Width (B): 9.525mm
    +0.127/-0.000
  • Lubrication: Unlubricated
  • Max RPM in Air: 1881
  • Precision Grade: Semi Precision
  • Open
  • Type: Double Row Radial
  • Dynamic Load Rating: 22.7Kg
  • Static Load Rating: 15Kg

Brand: KMS
Country of Origin: US

Alternatives: AR4DR-6, AS6DRR4G

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
