HF2-250-N (Each)

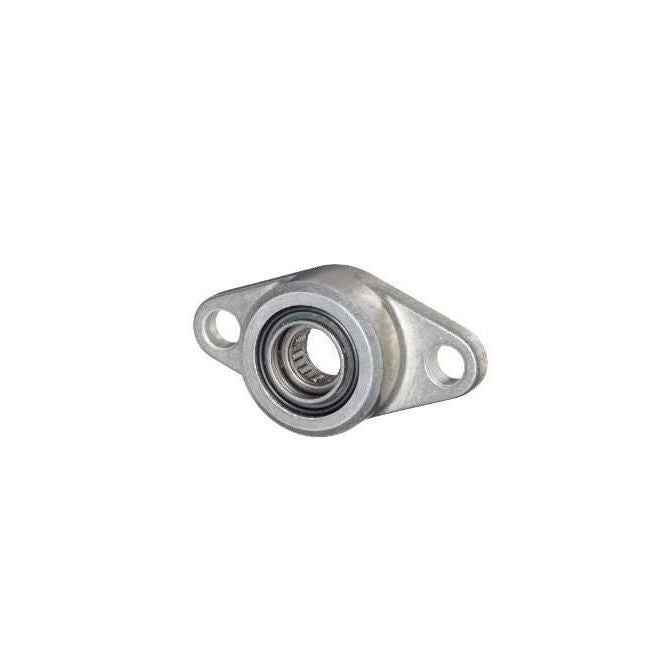

Flanged 2 Bolt Housing and Bearing Assembly - 6.35x44.45x57.15 mm Aligning - Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged 2 Bolt Housing Assembly - 6.35x44.45x57.15 mm - Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 4 available now
Only 4 may be ordered online. If you need a large quantity, please contact us.

1/4x1-3/4x2-1/4 inch Housing - 6.35x44.45x57.15 mm Flanged 2 Bolt Housing and Bearing Assembly - Steel - Sold per Each:

Base Category: Housing and Bearing Assembly - Flanged 2 Bolt

Top Level Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller

Product Details


Deleted Item. Available while stocks last.

Nominal Shaft Size: 6.350mm
(6.350mm is 0.25 in.)

Steel
  • Nominal Shaft Size: 6.350mm
    (6.350mm is 0.25 in.)

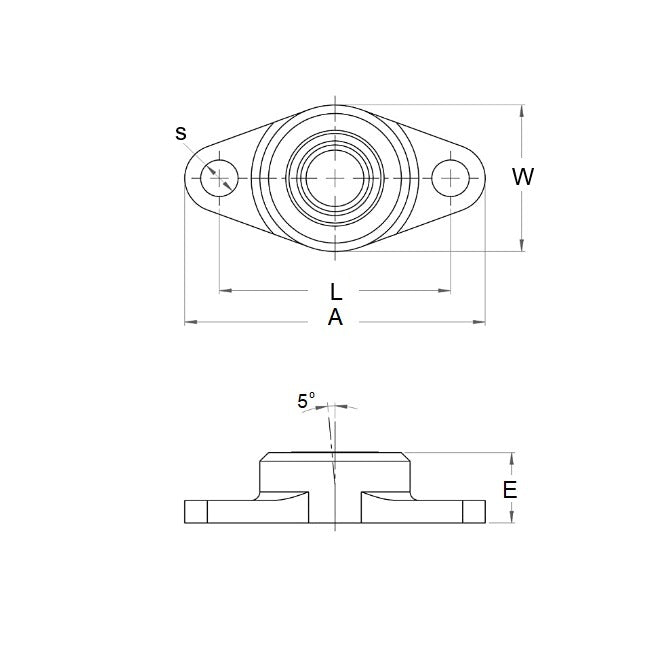

  • Width (W): 44.45mm
    (44.45mm is 1.75 in.)
  • Overall Length (A): 57.15mm
    (57.15mm is 2.25 in.)
  • Overall Height (E): 28.70mm
  • Min to Max Shaft Dia.: 6.342 to 6.350mm
  • Max. Radial Dynamic Load: 2180N
  • Bolt Hole Centres (L): 11.18mm
  • Max Speed: 4400

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.
