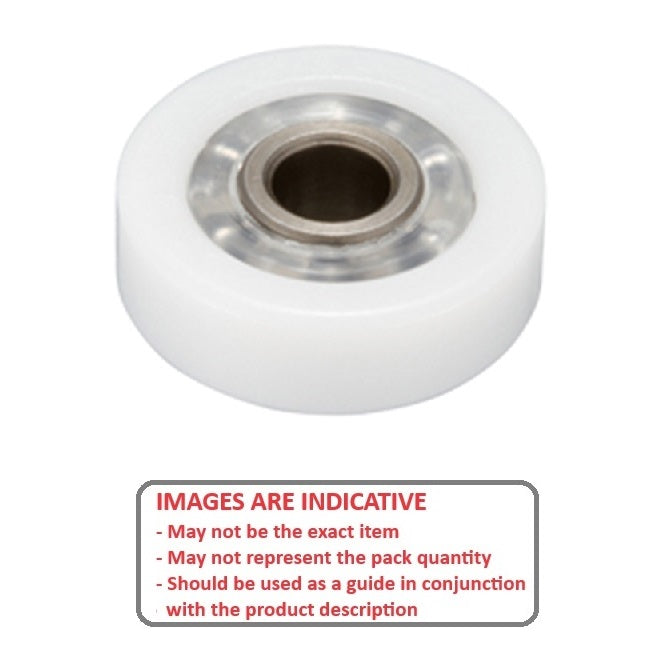

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

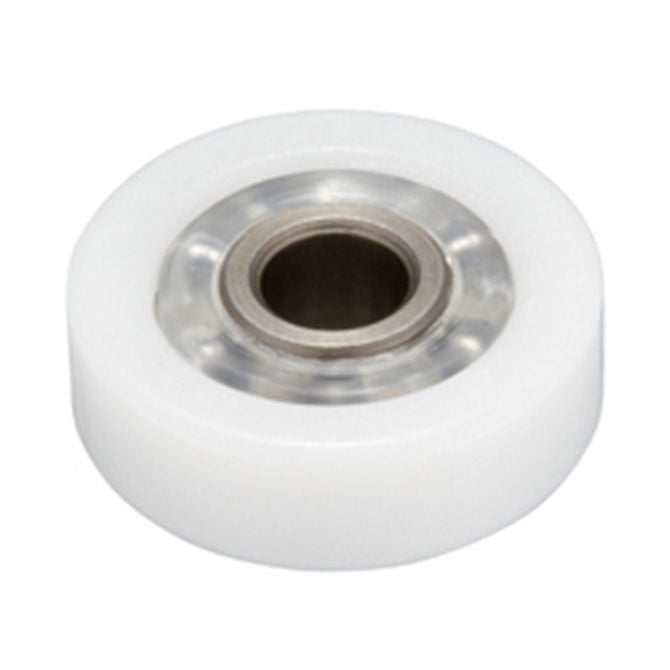

Bearings - 6 mm x 22 mm 7.000 / 9.000
TOK-DR-22-H6W1 (2 Pcs)

MBA

Price:
$3.56 AUD
$5.35 AUD $3.56 AUD
per 2
Qty: 30 available now (60 pcs)
Only 30 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Special Designs

Top Level Category: Bearings - Special Designs - Acetal

Product Details:

ID (d): 6.000mm
+0.10/-0.00

Acetal with Mild Steel Inner Race
  • OD (D): 22.000mm
    +0.00/-0.10
  • Width (W): 7.000 / 9.000mm
    +0.00/-0.20
  • W1: 1.000mm
  • W2: 1.000mm
  • N: 9.50mm
  • Type: 4
  • Special Features: Mild steel inner race 9mm wide extends 1mm each side.
  • Dynamic Load Rating: 20Kg
    at 300 RPM

  • at 300 RPM

Brand: MBA
Country of Origin: JP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
