DP050-014-CH-1 (10 Pcs)

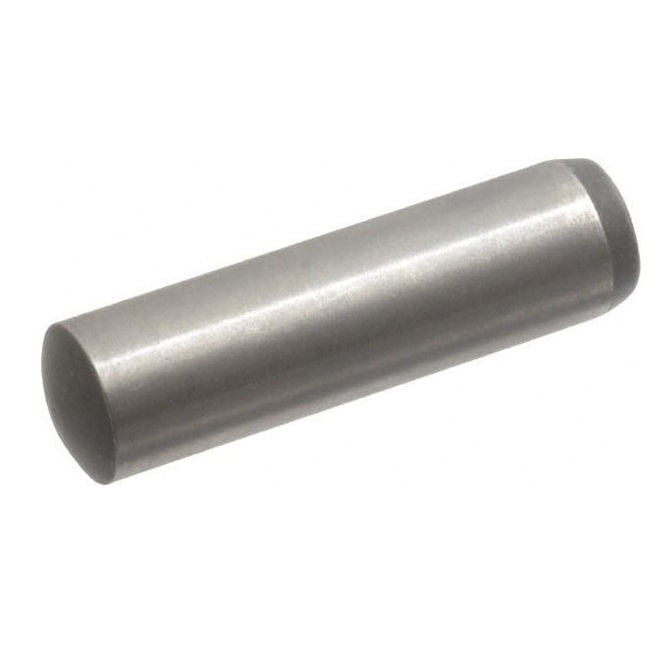

Dowel Pins - 5x14x14 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62

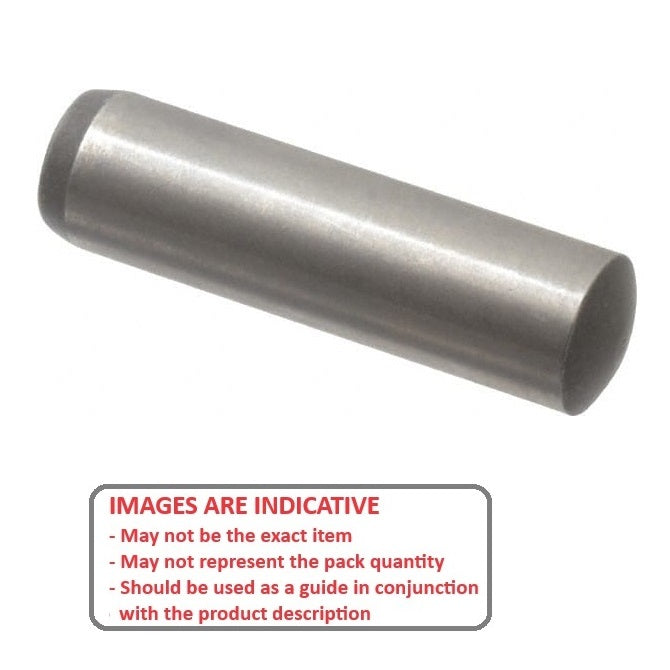

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$11.32 AUD
$11.32 AUD
per 10
Qty: 14 available now (140 pcs)
Order 50 or more (500 pcs) for $10.19 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 27, 2025

Pickup available at Shop location

Usually ready in 4 hours

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 4594


Diameter (D): 5.000mm
+ 0.004 / + 0.012
(5.000mm is 0.197 in.)

Steel 100Cr6 - Heat Treated and Ground Rc 58-62
  • Length (L): 14.00mm
    +/- 0.350
    (14.00mm is 0.551 in.)
  • Approx. Overall Length: 14.00mm
    +/ - 0.350
    (14.00mm is 0.551 in.)

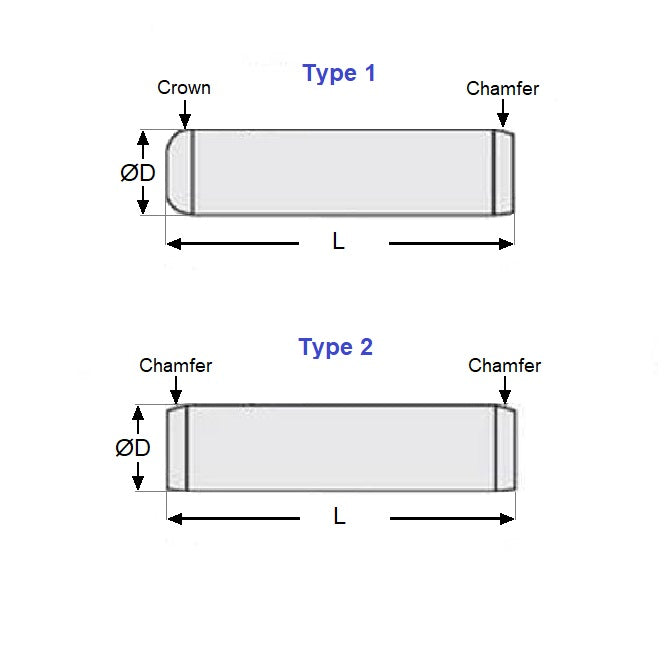

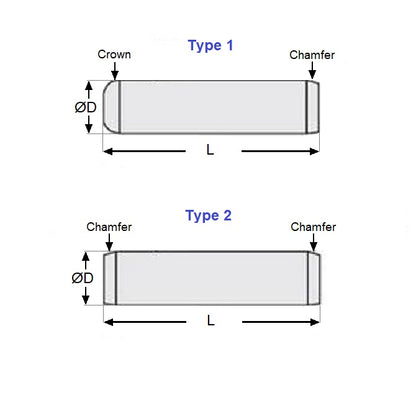

  • Type: 1 (Chamfer One End)
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternative Parts Include: DH5-14, DH514, DOWMH-050-014, DOWMH050014, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
