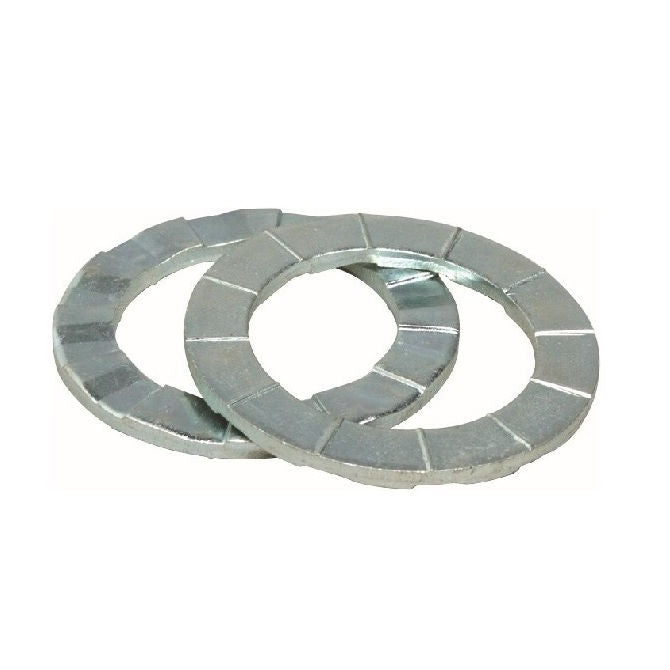

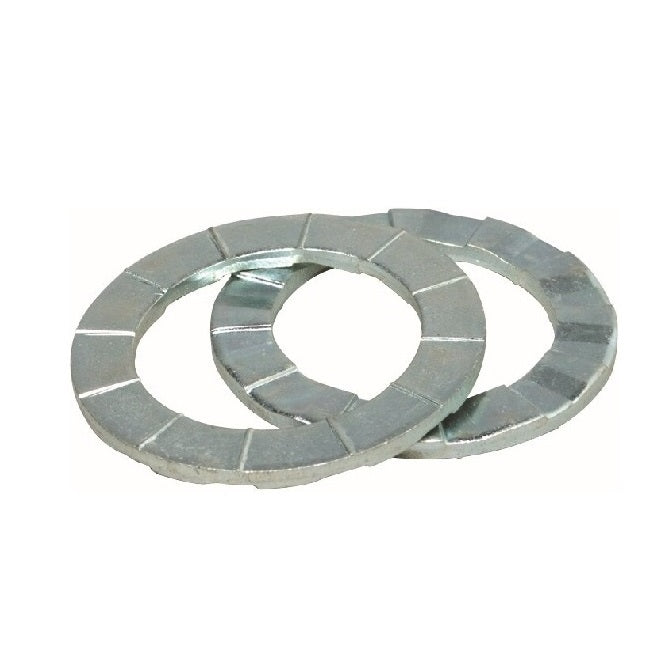

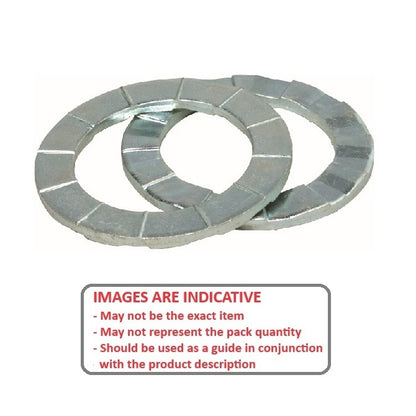

W0050-LK-010-020-D-S2 (PAIR)

Disk Lock Washers - 5x10.18x2.03 mm - Stainless Steel 302 Similar to A2, 304, 18-8

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Screws
Price:
$4.00 AUD
$7.60 AUD $4.00 AUD
Per PAIR
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Pickup available at Shop location

Usually Ready in 4 Hours (If ordered Mon-Fri 8am to 1pm)

Base Category: Washers - Disk Lock

Top Level Category: Washers - Disk Lock

Product Details:

Nominal ID: 5mm
(5mm is 0.197 in.)

Stainless Steel 302 (Similar to A2, 304, 18-8)
  • Nominal OD: 10.18mm
    (10.18mm is 0.401 in.)
  • Thickness: 2.03mm
    (2.03mm is 0.08 in.)
  • To Suit Thread Size: M5 (5x0.8mm)
  • No. of Cams: 6.00
  • Actual ID (Ref): 5.15mm

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: DIS-M5, DISM5

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
