CIB-05874-C (3 Pcs)

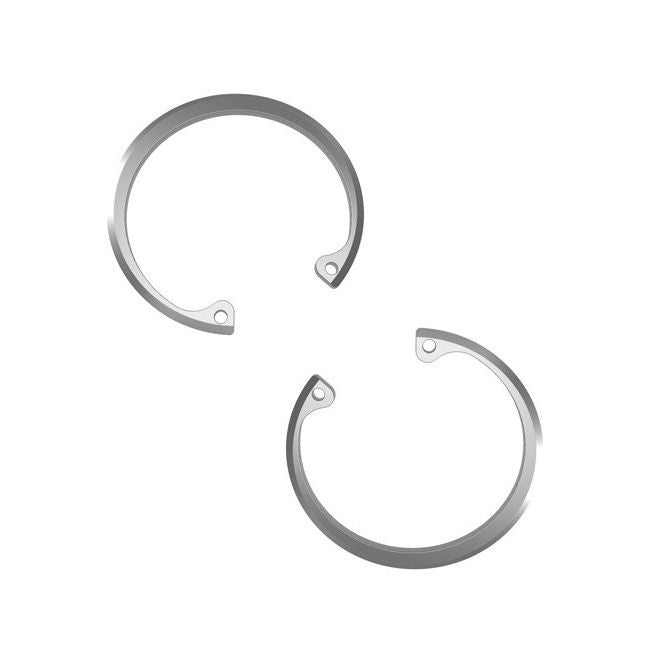

Internal Retaining Rings - 58.74x1.91x63.01 mm - Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$8.50 AUD
$19.19 AUD $8.50 AUD
per 3
Backorder
Order 50 or more (150 pcs) for $7.65 AUD per 3
Backorder now! Backorders for more than the stock quantity are expected before Jul 15, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Bevelled

Product Details:

Additional stock available from USA subject to Prior Sale = 614


Housing Bore (B): 58.74mm
(58.74mm is 2.313 in.)

Carbon Steel
  • Clip Thickness (T): 1.91mm
    + 0.15 / - 0.00
    (1.91mm is 0.075 in.)
  • Groove Dia. (Dg): 63.01mm
    +/- 0.08
    (63.01mm is 2.481 in.)
  • Approx. Loose Circlip OD (Dr): 63.63mm
    + 1.78 / - 0.00
  • Radial Wall (S) min/max: 2.54 - 5.23
  • Groove Width (W): 1.60mm
    + 0.04 / - 0.00
  • Tool: PRS-I090

Brand: MBA
Country of Origin: US

Alternative Parts Include: VHO-231, VHO231, N13020231, N1302-0231, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
