CCI-05700-C (2 Pcs)

Name: CCI-05700-C (2 Pack) - Internal Retaining Rings - 57x2x60 mm - Carbon Steel
Brand: MBA
SKU: CCI05700C
Price: 4.23 AUD
Availability: InStock

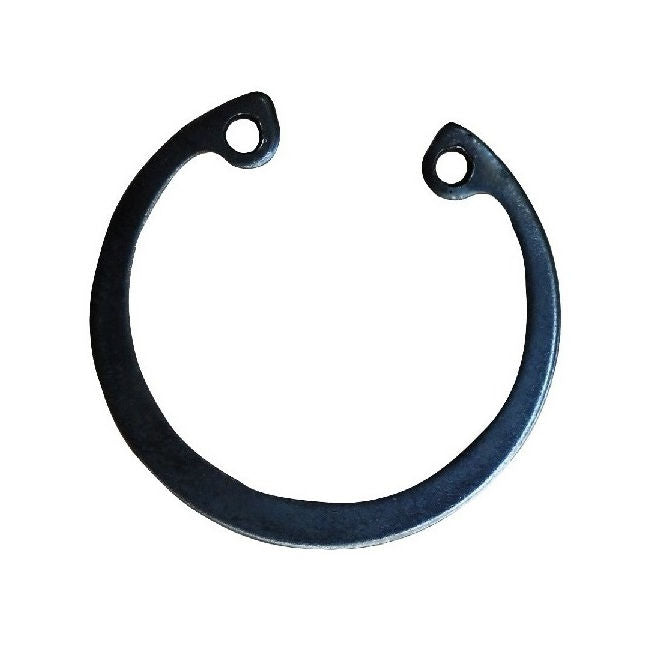

Internal Retaining Rings - 57x2x60 mm - Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

NaN -Infinity

MBA

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$4.23 AUD

per 2
Qty: 124 available now (248 pcs)
Order 50 or more (100 pcs) for $3.81 AUD per 2

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 09, 2025

Quantity

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

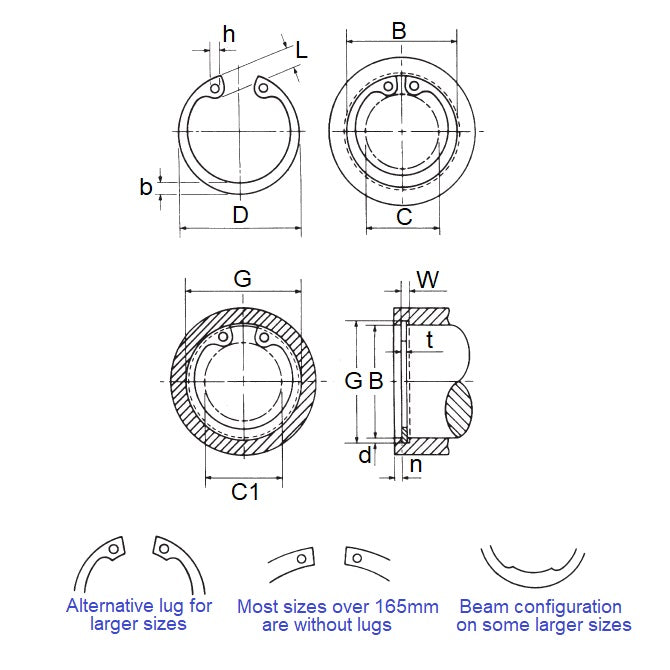

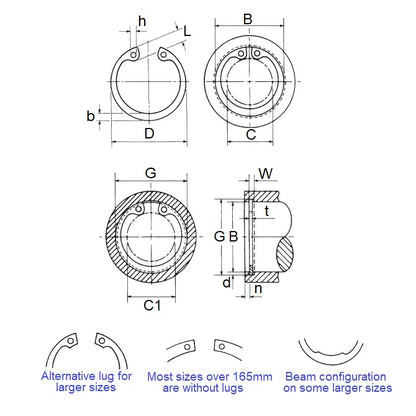

Product Details:

Additional stock available from USA subject to Prior Sale = 200

Housing Bore (B): 57.00mm
_{(57.00mm is 2.244 in.)}

Carbon Steel

Clip Thickness (T): 2.00mm
_{+ 0.30 / - 0.00}
_{(2.00mm is 0.079 in.)}
Groove Dia. (Dg): 60.00mm
_{+ 0.00 / - 0.07}
_{(60.00mm is 2.362 in.)}
Approx. Loose Circlip OD (Dr): 62.20mm
_{+ 1.10 / - 0.46}
Groove Width (W): 2.15mm
_{+ 0.13 / - 0.00}
Clearance in Bore (C): 42.70mm
Clearance in Groove (C1): 46.40mm
Min. Lug Diameter (h): 2.50mm
Min. Extension (n): 4.50
Standard: DIN472

Brand: MBA
Country of Origin: US

Alternative Parts Include: D1300-057, D13000570, D1300-0570, D13000570APP, D1300-0570APP, D1300057, NZT.J57, DHO-057, DHO057, BN-822-057, BN822057, 1300-0570APP, 13000570APP, 13000570, 1300-0570, J57S, J057, J57-S, J-057, J57X2, J57, 472057, 472-057, Ellison, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
