MMI-5443-H (Each)

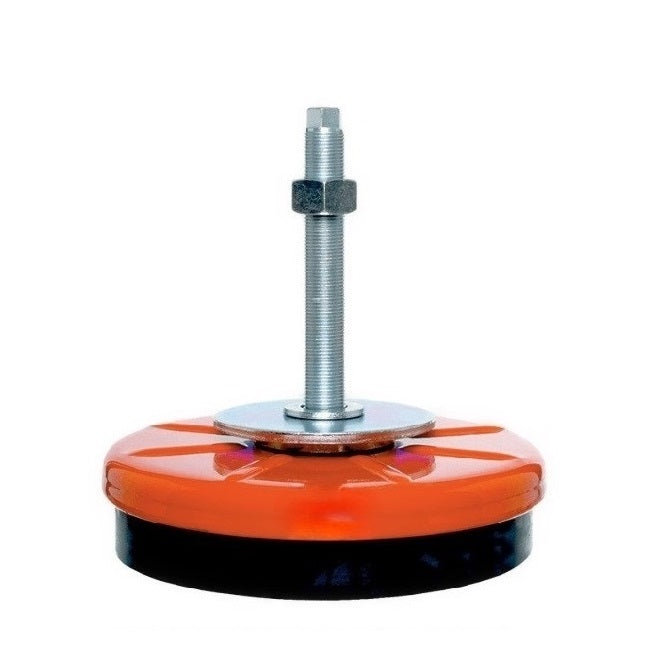

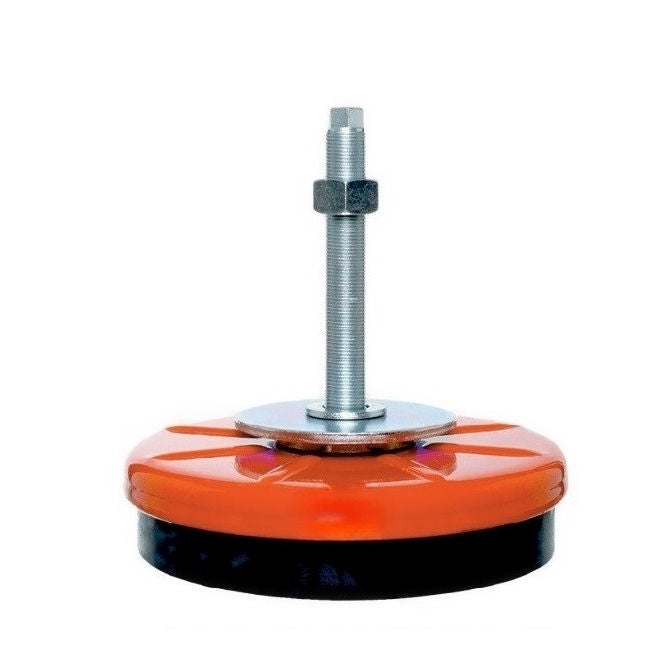

Machinery Industrial Mounts - 5443.1 Kg - 197.612x100.076 mm Heavy Duty - Rubber and Steel Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Cylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $887.61 AUD Each
5443.1 Kg - 197.612x100.076 mm Machinery Industrial Mounts - Rubber and Steel - Sold per Each:
Base Category: Mounts - Machinery Industrial
Top Level Category: Mounts - Machinery Industrial - Heavy Duty
Product Details
Load Capacity: 5443.1KgRubber and Steel

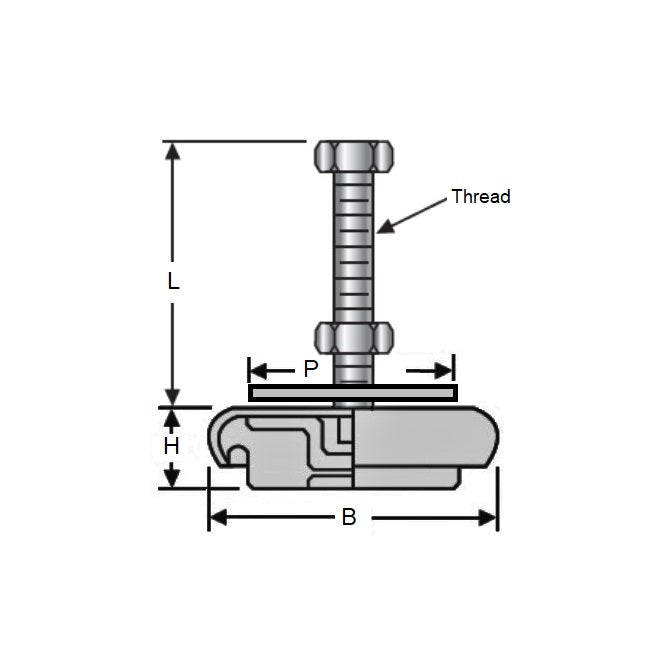

- Load Capacity: 5443.1Kg
- Base Diameter: 197.612mm
(197.612mm is 7.78 in.)
- Plate Diameter: 100.076mm
(100.076mm is 3.94 in.)
- Height: 55.880mm
- Adjustment: 15.240mm
- Thread Size: M20-1.5
- Thread Length: 168.275mm
- Non-Impact Machinery Load: 5443.104Kg
- 125 Strokes per Min Load: 2494.756Kg
- 180 Strokes per Min Load: 1995.805Kg
- 200 Strokes per Min Load: 1496.854Kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® SX-4
- SX4
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MMI5443H, MMI5443
