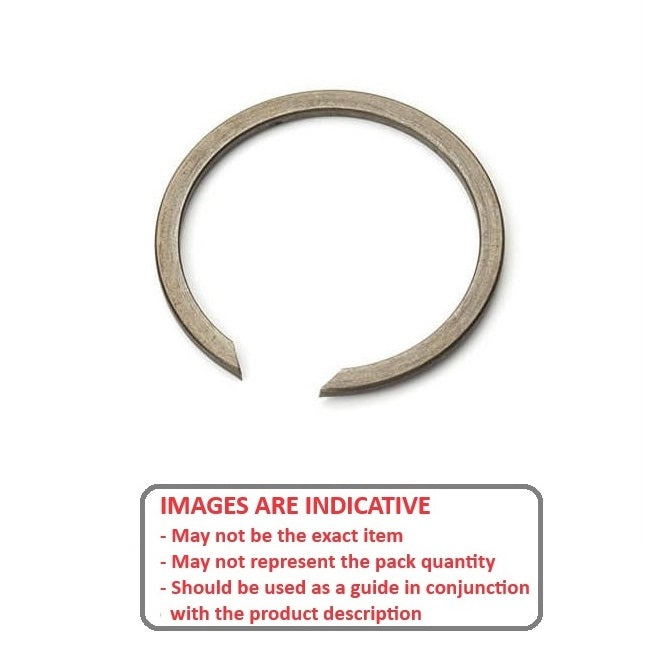

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

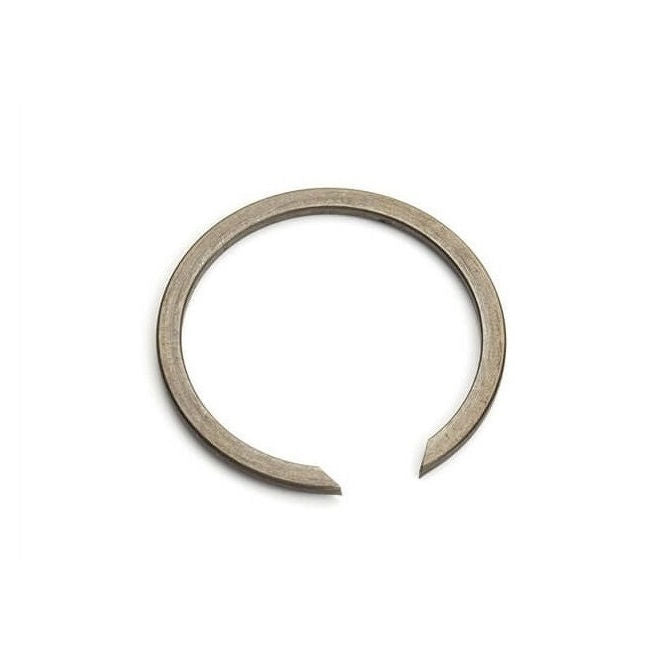

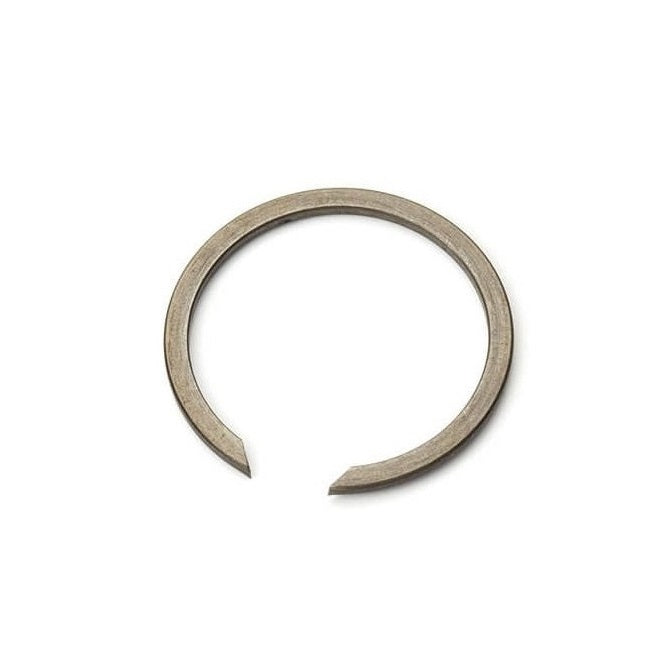

Snap - 52 mm x 1.5 mm x 49.7 mm
WRI-0520-LS (5 Pcs)

MBA

Additional resources:
Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF
Price:
$22.86 AUD
$22.86 AUD
per 5
Qty: 835 available now (4175 pcs)
Order 50 or more (250 pcs) for $20.57 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 03, 2025

Base Category: Snap Rings - Internal

Top Level Category: Snap Rings - Internal - Basic - Carbon Steel

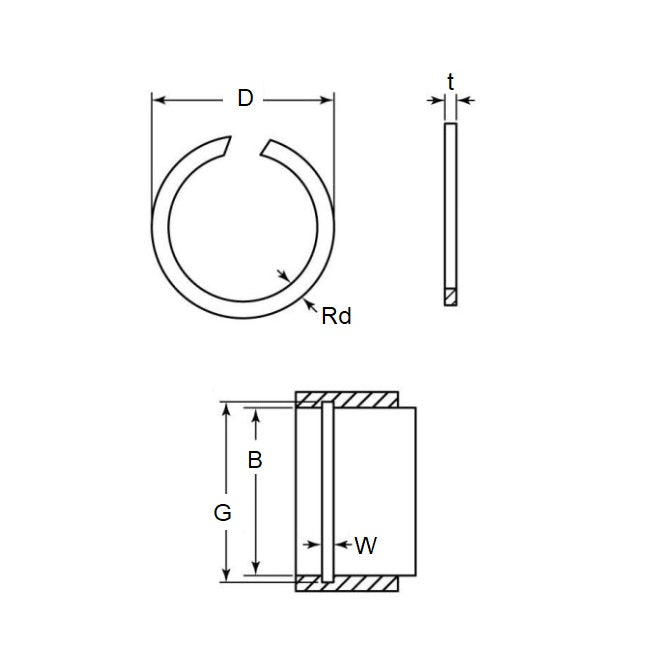

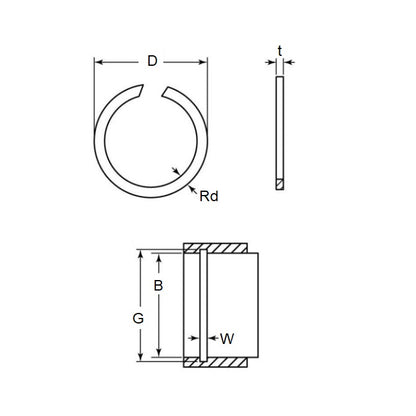

Product Details:

Housing Bore (B): 52.00mm
Spring Steel
  • Clip Thickness (t): 1.50mm
    +0/-0.10
  • Approx. Free ID: 49.7mm
  • Free OD Max (D): 54.30mm
  • Section (Rd): 2.30mm
    +0/-0.10
  • Groove Dia. (G): 53.50mm
    +0.19/-0.00
  • Groove Width (W): 1.60
  • Spring Steel
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: USA

Alternatives: DSB-052, M2300-0520APP, SB52, SB52A501-S, SBM0520, WRI0520SQ

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
