KD-180RS (Each)
Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm Low Profile High Load
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $3,093.59 AUD Each
2x1-5/8 inch Linear - 50.8 mm - 2721.6 Kg - 41.275 mm Slide Assemblies Linear - - Sold per Each:
Base Category: Linear - Slide Assemblies
Top Level Category: Linear - Slide Assemblies - Low Profile High Load
Product Details
Travel: 50.800mm(50.800mm is 2 in.)
- Travel: 50.800mm
(50.800mm is 2 in.)
- Load Capacity: 2721.6Kg

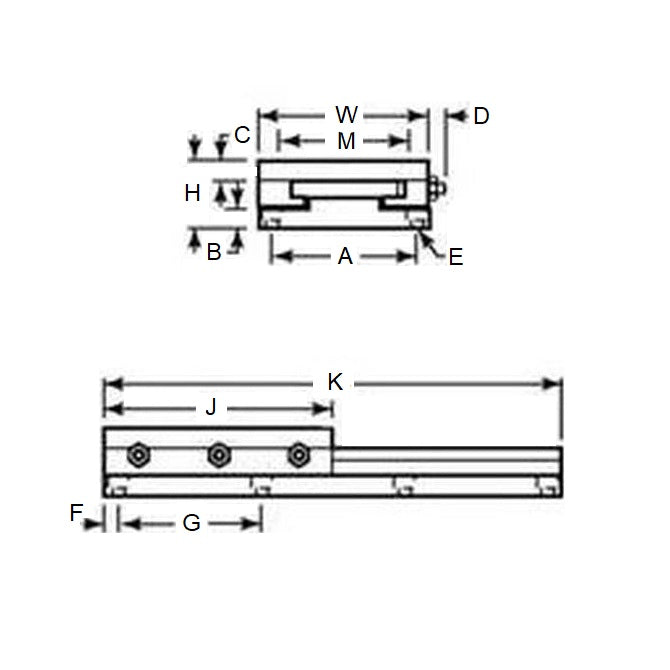

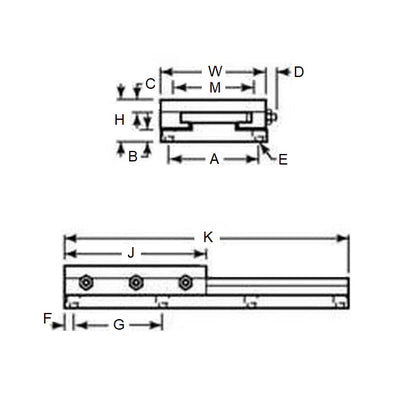

- Bolt Hole Centres (A): 41.275mm
(41.275mm is 1.625 in.)
- Slide Height (B): 6.350mm
- Carriage Height (C): 7.112mm
- Gip Adjustment (D): 5.334mm
- End to Bolt Hole (F): 25.400mm
- Length Between Bolt Holes (G): 38.100mm
- Overall Height (H): 25.400mm
- Carraige Length (J): 152.400mm
- Slide Length (K): 203.200mm
- Overall Width (W): 50.800mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
