DT-307RS (Each)

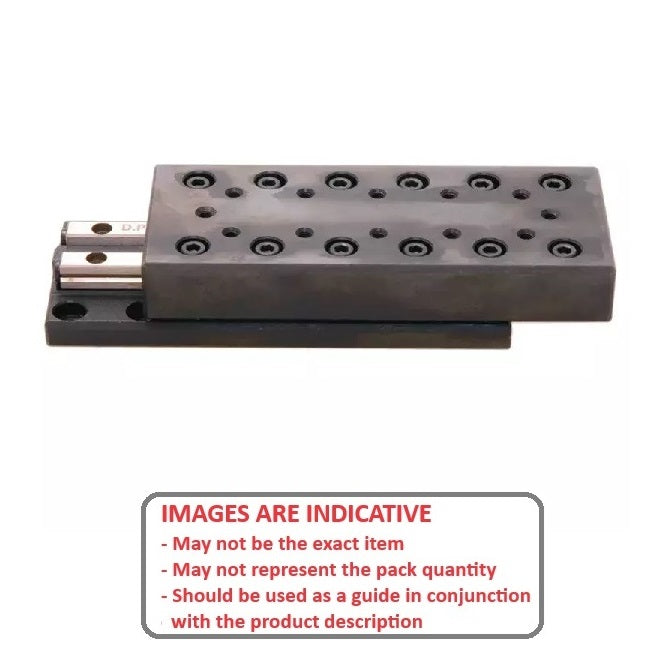

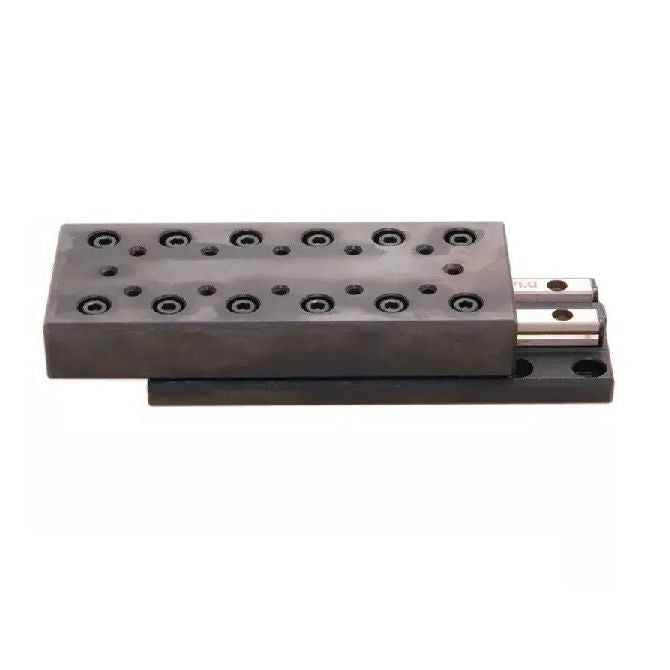

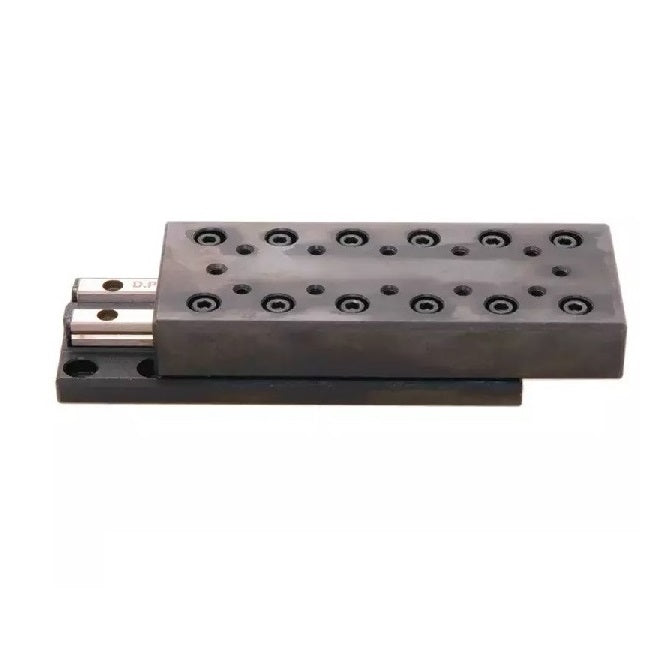

Cross Roller Slide Tables Standard Linear - 50.013 mm - 40 Kg - 84.988 mm - Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Cross Roller Slide Tables Standard Linear - 50.013 mm - 40 Kg - 84.988 mm - Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$2,913.86 AUD
$2,913.86 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $2,622.47 AUD Each
Backorder now! Backorders are expected before Aug 01, 2026

1-31/32 inch Linear - 50.013 mm - 40 Kg - 84.988 mm Cross Roller Slide Tables Standard Linear - Steel - Sold per Each:

Base Category: Linear - Cross Roller Slide Tables Standard

Top Level Category: Linear - Cross Roller Slide Tables Standard - Steel

Product Details

Travel: 50.013mm
(50.013mm is 1.969 in.)

Steel
  • Travel: 50.013mm
    (50.013mm is 1.969 in.)
  • Load Capacity: 40Kg
  • Length: 84.988mm
    (84.988mm is 3.346 in.)

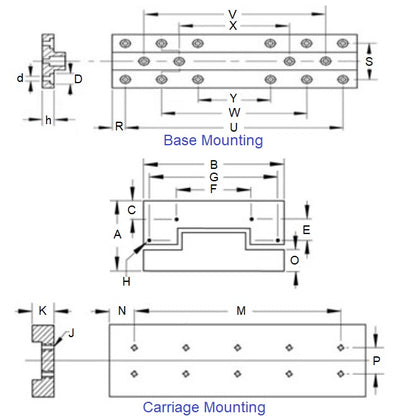

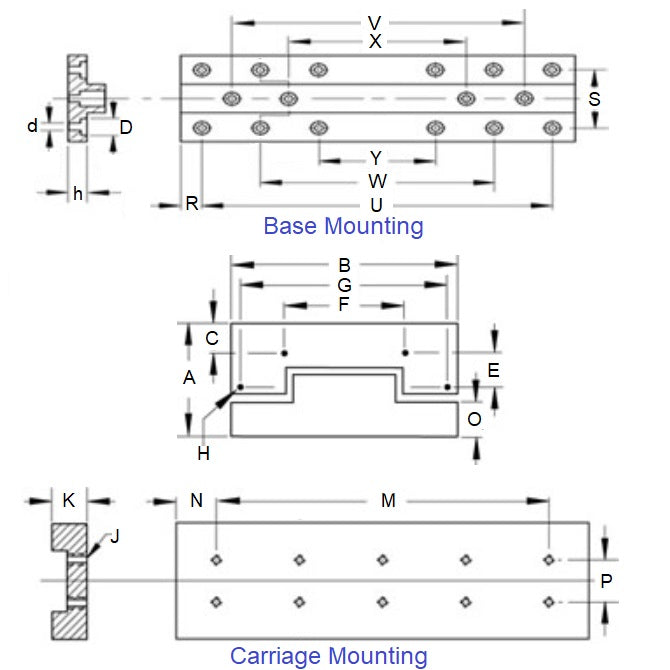

  • Height and Width (A/B): 16.993 / 29.997mm
  • Base Plate Thickness (C): 5.512mm
  • Number of Hole (Base/Carriage): 8 / 14
  • U / W / V / S: 78.0 / 58.0 / - / 22.0mm
  • R: 3.505mm
  • Base Thread: 4.09 x 2.54
  • Carriage Thread: M2 x 6.99
  • P: 10.0
  • Hole Spacing from End (N): 12.5mm

Brand: MBA
Country of Origin: US
