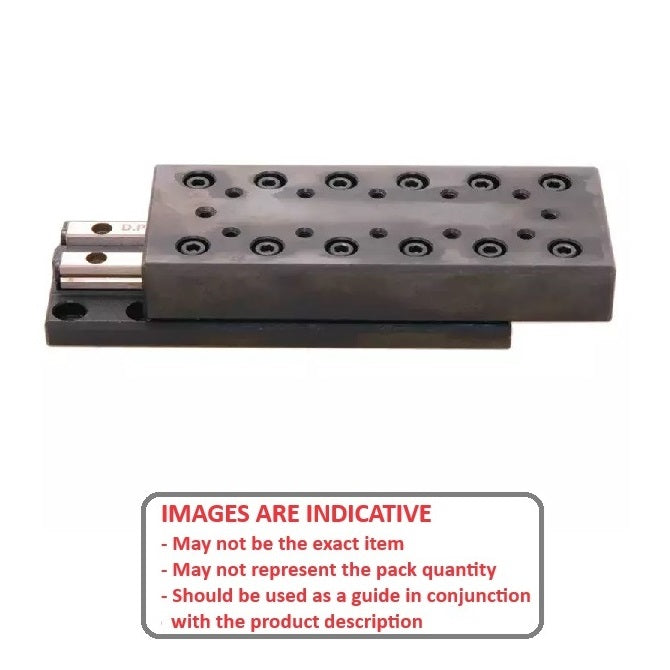

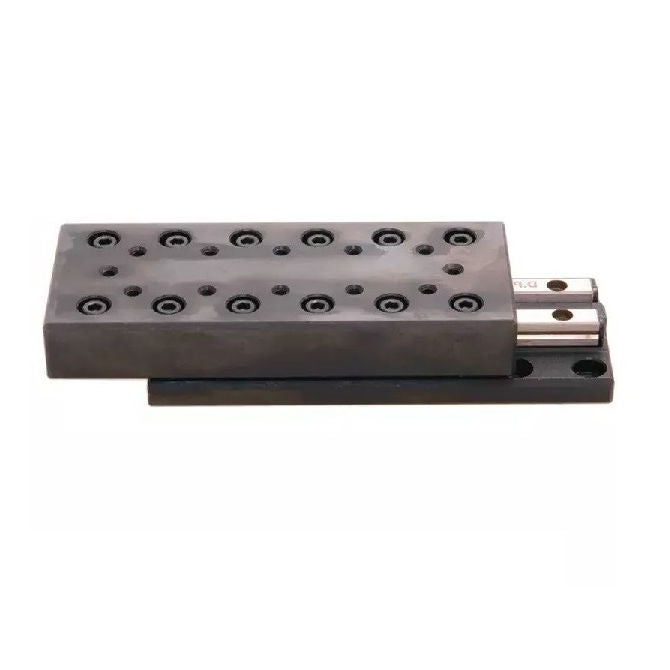

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

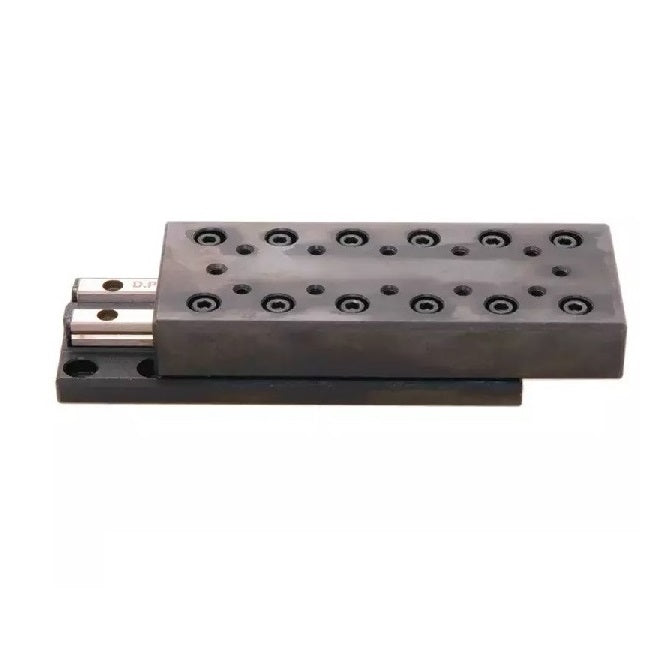

Linear - 50.013 mm x 279 Kg x 84.988 mm
DT-330RS

MBA

Price:
$1,584.77 AUD
$1,584.77 AUD
Each
Out Of Stock
Order 50 or more for $1,426.29 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 21, 2024

Base Category: Linear Slides - Cross Roller Tables

Top Level Category: Linear Slides - Cross Roller Tables - Steel

Product Details:

Travel: 50.013mm
Steel
  • Load Capacity: 279Kg
  • Length: 84.988mm

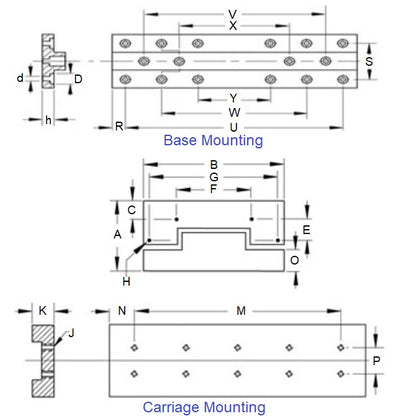

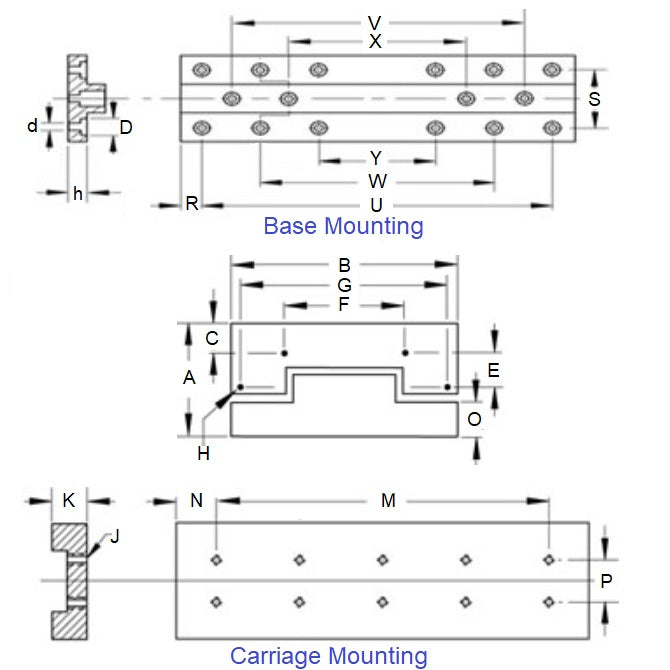

  • Height and Width (A/B): 35.001 / 80.010mm
  • Base Plate Thickness (C): 10.490mm
  • Number of Hole (Base/Carriage): 4 / 2
  • U / W / V / S: 65.0 / - / - / 55.0mm
  • R: 10.008mm
  • Base Thread: 9.50 x 5.51
  • Carriage Thread: M5 x 13.00
  • P: 40.0
  • Hole Spacing from End (N): 42.5mm

Brand: MBA
Country of Origin: US

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
