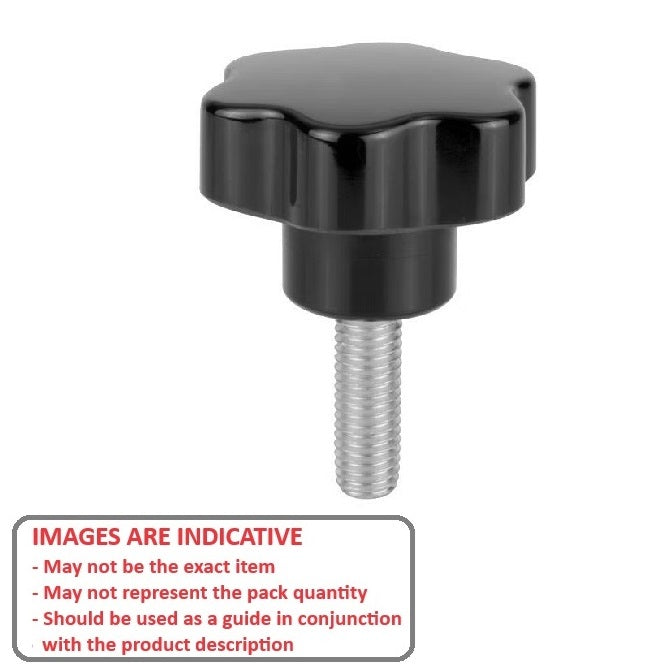

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

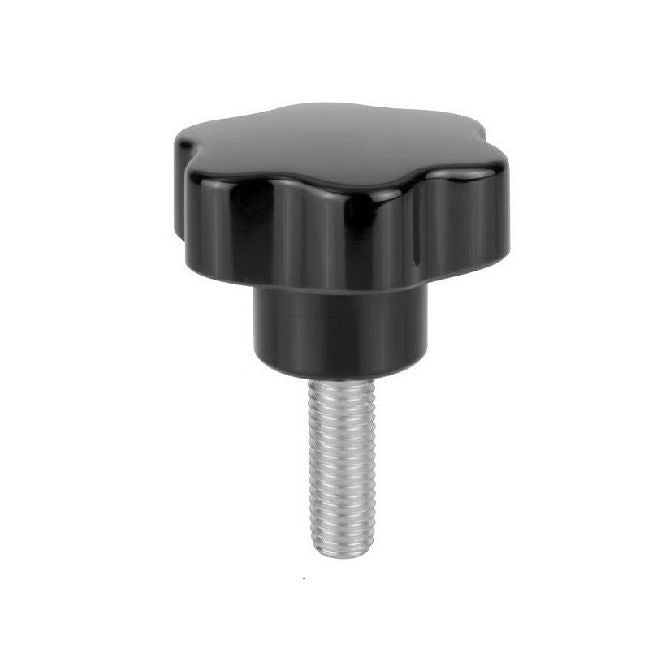

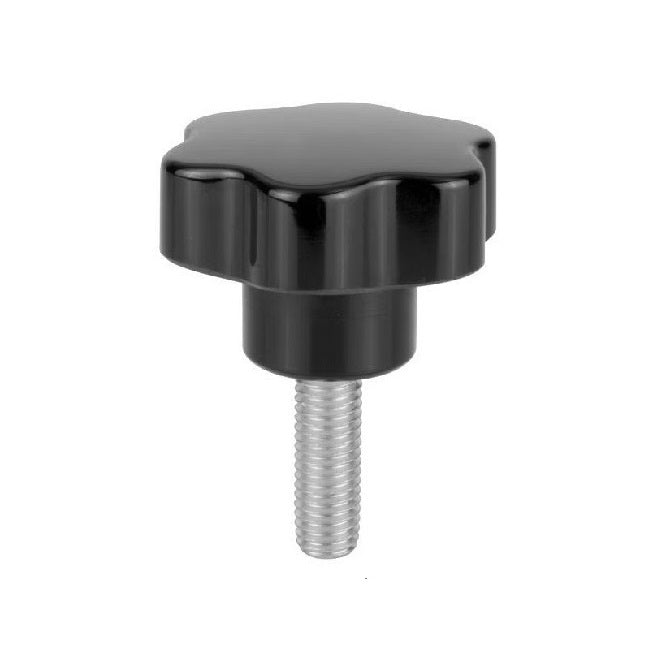

Lobe Knobs - 5/16-18 UNC (7.94mm) x 50 mm x 25 mm
KM079C-050-6L25-S4

MBA

Additional resources:
Knobs PDF Quick Guide by Thread Size
Price:
$26.77 AUD
$26.77 AUD
Each
Out Of Stock
Order 50 or more for $24.09 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Mar 25, 2025

Base Category: Knobs - Lobe

Top Level Category: Knobs - Lobe - Six Lobe - Male

Product Details:

Thread Size: 5/16-18 UNC (7.94mm)
Stainless Steel 304 (Similar to A2, 18-8) HRB80

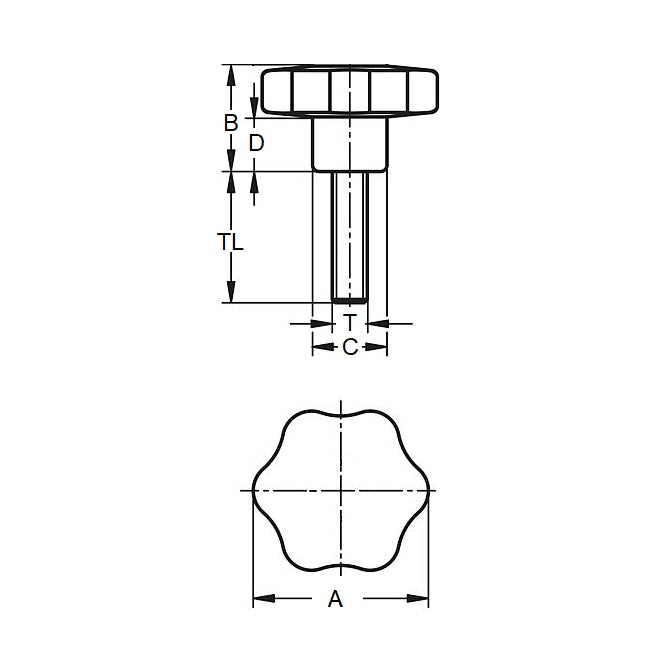

  • Head Diameter (A): 50.00mm
  • Thread Length: 25.0mm
  • Colour: Black
  • Hub Diameter (C): 20.07mm
  • Hub Length (D): 14.48mm
  • Knob Height (B): 28.45mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: JCL-194

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
