Dowel Pins - 4 mm x 28 mm x 28 mm
DP040-028-303-2 (1000 Pcs)
NoCor
Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Out Of Stock
Order 50 or more (50000 pcs) for $847.03 AUD per 1000
Couldn't load pickup availability
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless
Product Details:Diameter (D): 4.000mm
+ 0.004 / + 0.012
Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
- Length (L): 28.00mm
+/- 0.420
- Overall Length: 28.00mm
+/ - 0.420

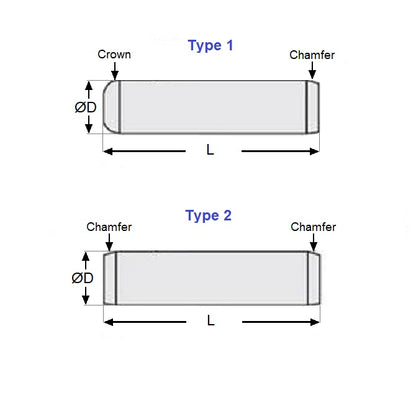

- Type: 2 (See diagram)
- Chamfer: 0.63 x 15 Deg
- Standard: Based on ISO 2338
Brand: NoCor
Country of Origin: IN
Alternatives: DOWMS-040-028
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
