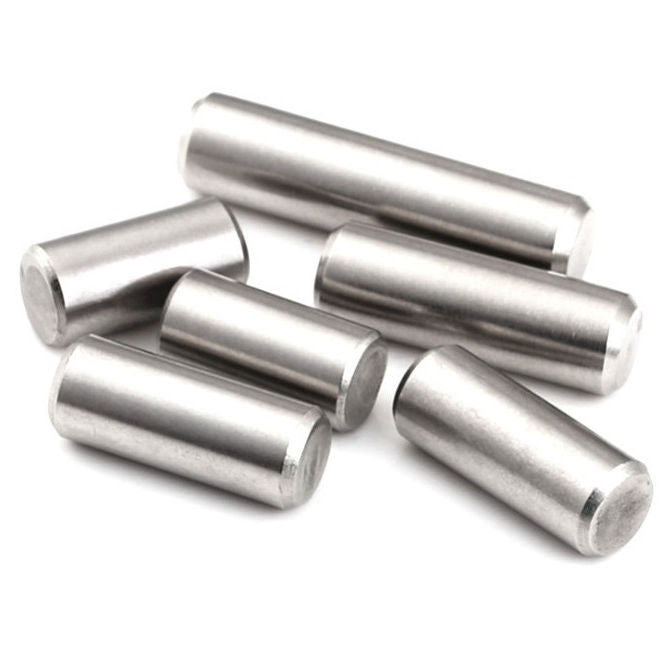

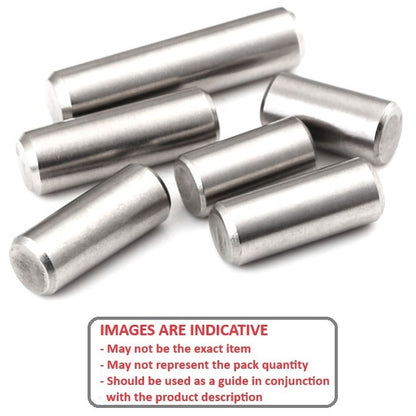

1055264 | DP040-018-303-2 (20 Pcs) --- Dowel Pins - 4 mm x 18 mm x 18 mm

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 4.000mm
_{+ 0.004 / + 0.012}

303 Stainless HRB80

• Length (L): 18.00mm
  _{+/- 0.420}

• Overall Length: 18.00mm
  _{+/ - 0.420}

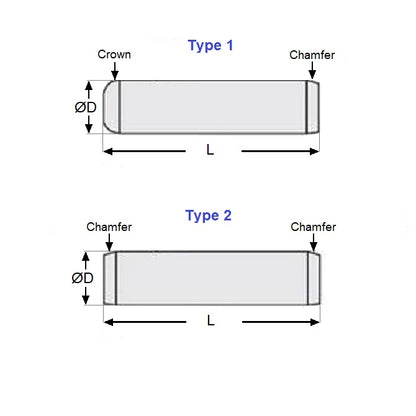

• Type: 2 (See diagram)
• Chamfer: 0.63 x 15 Deg
• Standard: Based on ISO 2338

Brand: NoCor
Country of Origin: IN

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
