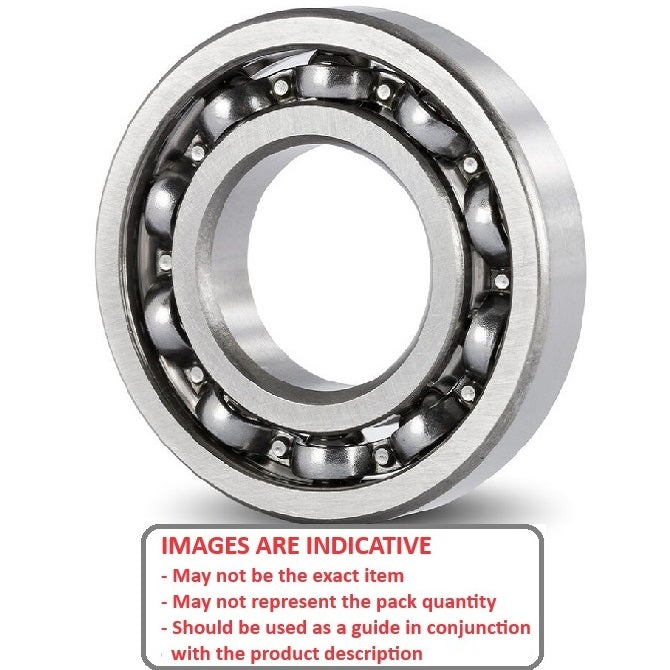

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

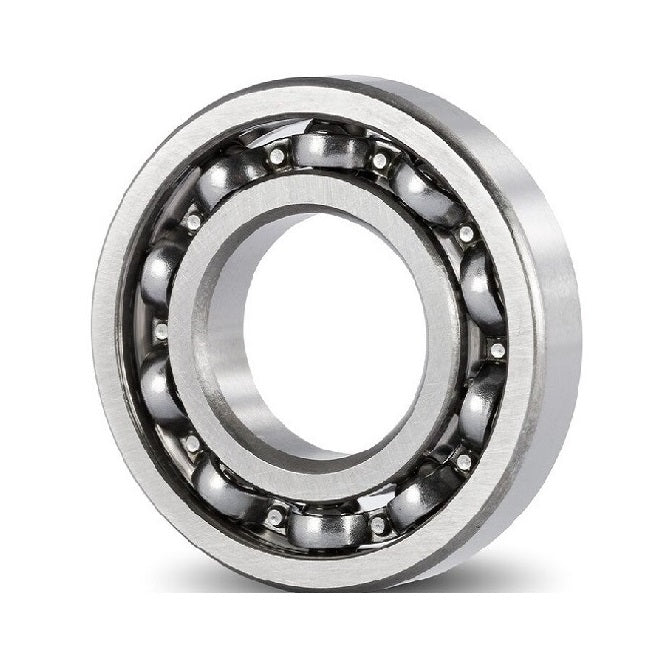

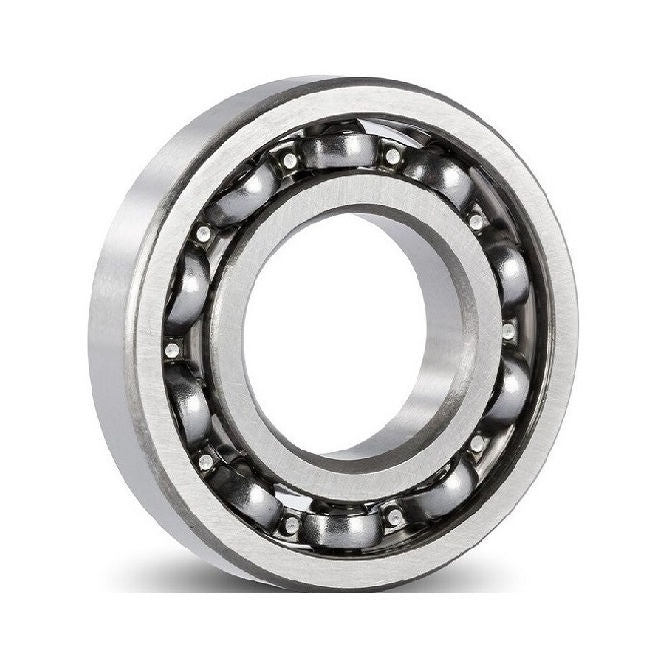

Bearings - 4 mm x 13 mm x 5 mm
S624-MC34-GR5-R-L23 (40 Pcs)

Name: 1054801 | S624-MC34-GR5-R-L23 (40 Pcs) --- Bearings - 4 mm x 13 mm x 5 mm
Brand: MBA
SKU: S624MC34GR5RL23
Price: 1625.77 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Unflanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$1,625.77 AUD

per 40
Out Of Stock
Order 50 or more (2000 pcs) for $1,463.19 AUD per 40

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 26, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - High Precision - Standard

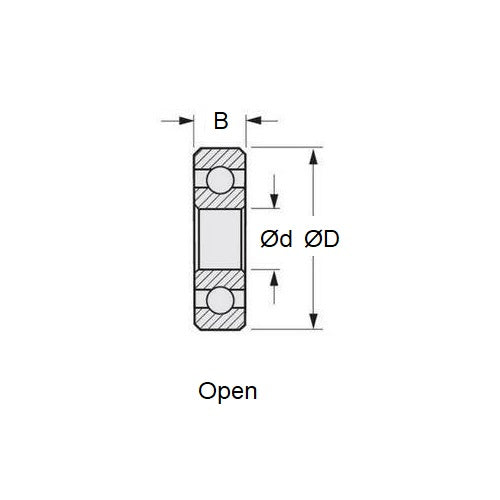

Product Details:

ID (d): 4.000mm
_{+0.000/-0.005}

AIS I 440C Stainless Steel / Low Torque Ribbon Retainer

OD (D): 13.000mm
_{+0.000/-0.005}
Width (B): 5.000mm
_{+0.000/-0.040}
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial
Lubricant: Windsorlube L245X - L23 Oil

Brand: MBA
Country of Origin: DE

Alternatives: P5-624, P5-S624, R-4130X-48-A5P-6/15-L23, R4130X-A5P-L23, S624MC3GR5L23, S624-P5, S624RGR5MC34L23

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
