WRI-0470-LS (PK-5)

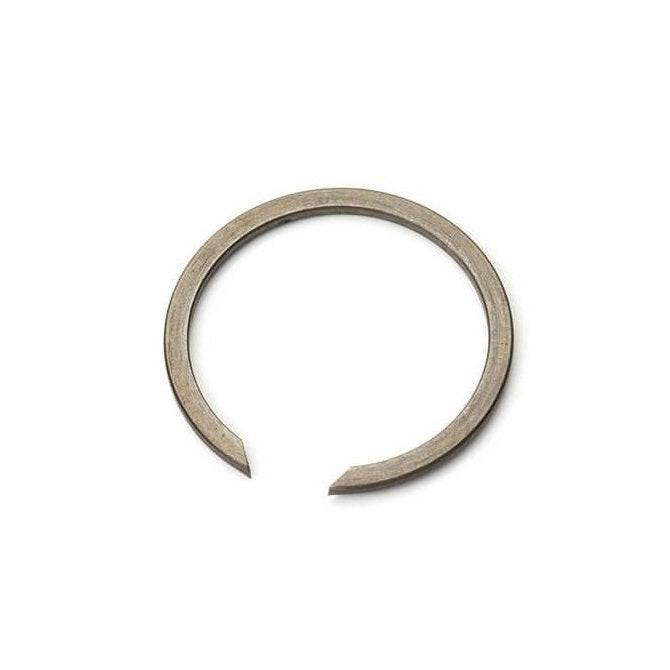

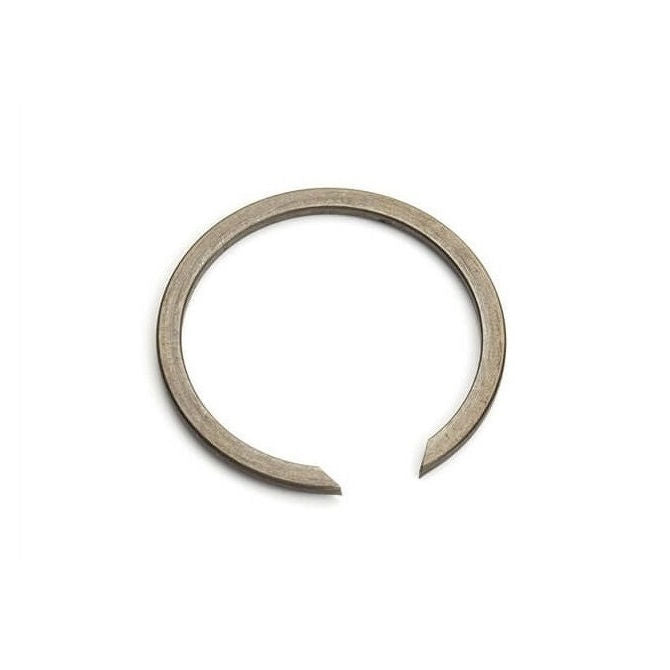

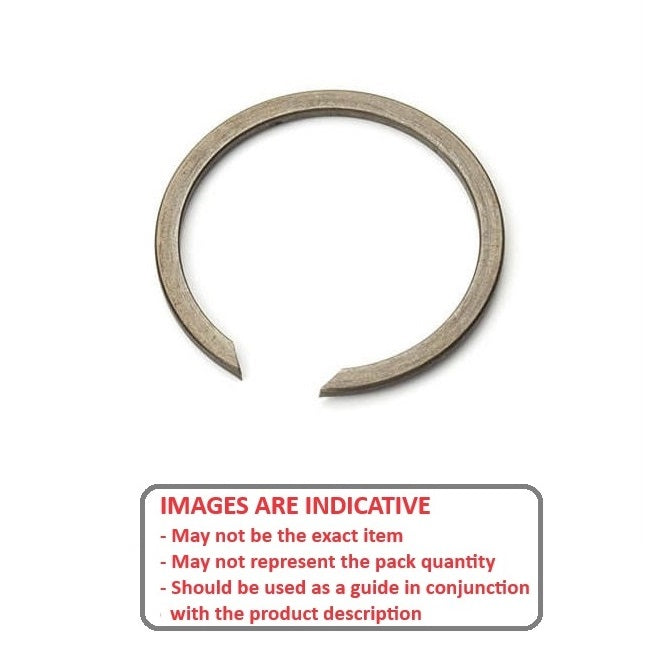

Internal Retaining Rings - 47x1.5x48.2 mm Snap Rings - Carbon Spring Steel Snap Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Snap Rings and Spiral Rings PDF
Order 50 or more packs of 5 (250 pcs)
for $3.23 AUD per 5 pack
Couldn't load pickup availability
47x1.5x48.2 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 5:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

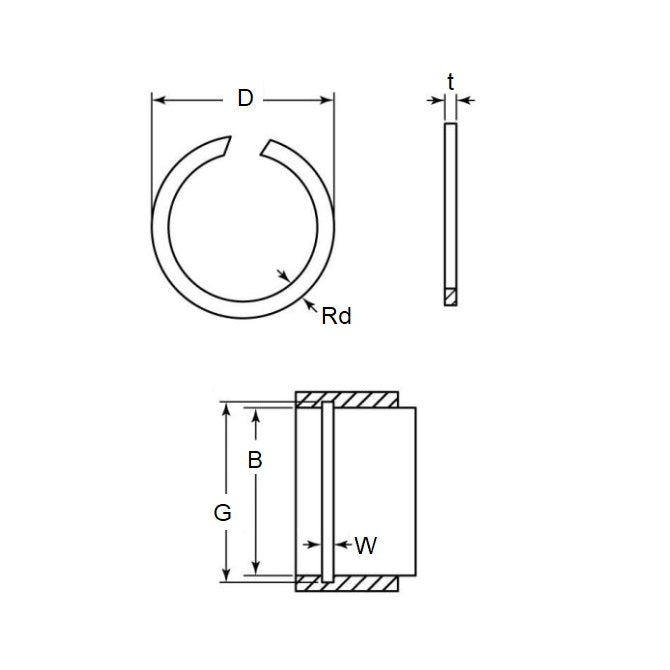

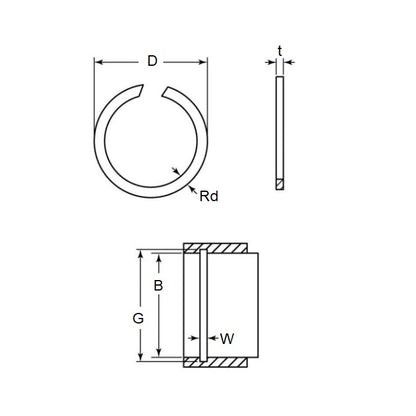

Product Details
Housing Bore (B): 47.00mm(47.00mm is 1.85 in.)
Carbon Spring Steel
- Housing Bore (B): 47.00mm
(47.00mm is 1.85 in.)
- Clip Thickness (T): 1.50mm
+ 0 / - 0.10
(1.50mm is 0.059 in.)
- Groove Dia. (Dg): 48.20mm
+ 0.16 / - 0.00
(48.20mm is 1.898 in.)
- Approx. Loose Circlip OD (Dr): 48.80mm
- Section (Rd): 2.30mm
+ 0 / - 0.10
- Groove Width (W): 1.60mm
- Approx. Loose Clip ID: 44.2
- Section Profile: Rectangular with Square Edge
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- Huyett® DSB-047
- NoCor® DSB-047
- Seeger® SB47
- Seeger® SB47A501-S
- WRI0470SQ
- SB47A501S
- M23000470APP
- M2300-0470APP
- DSB047
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRI0470LS, WRI0470
