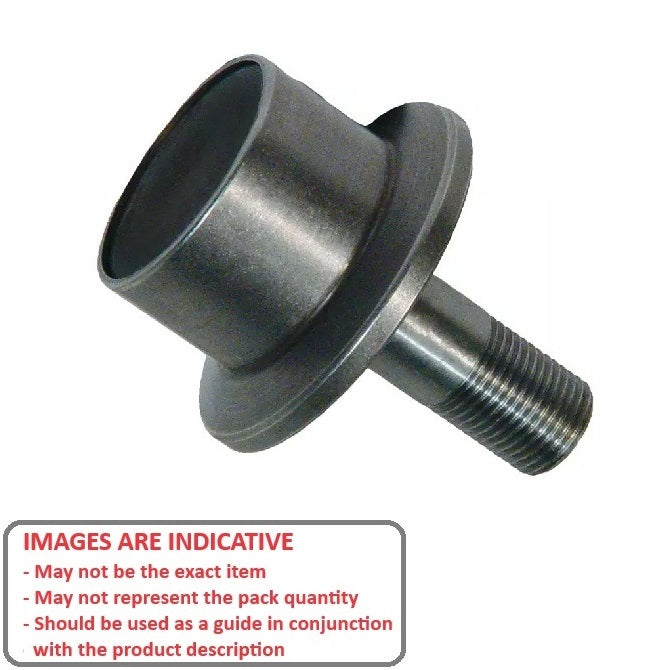

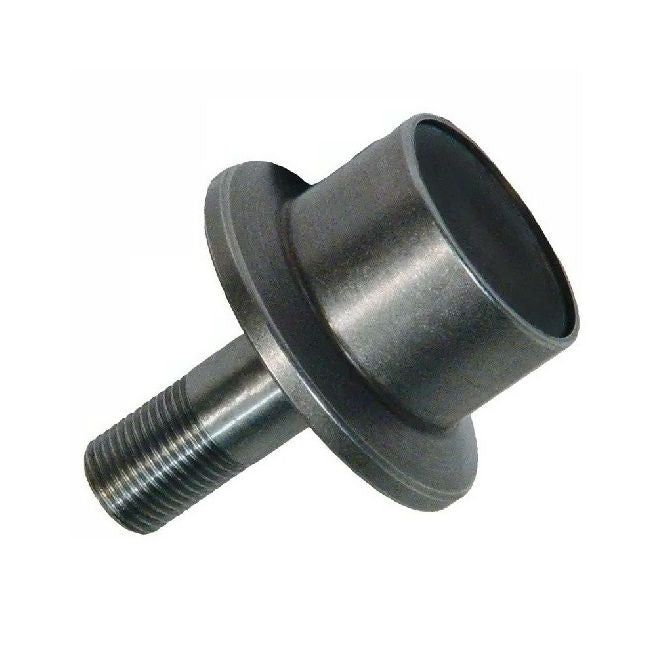

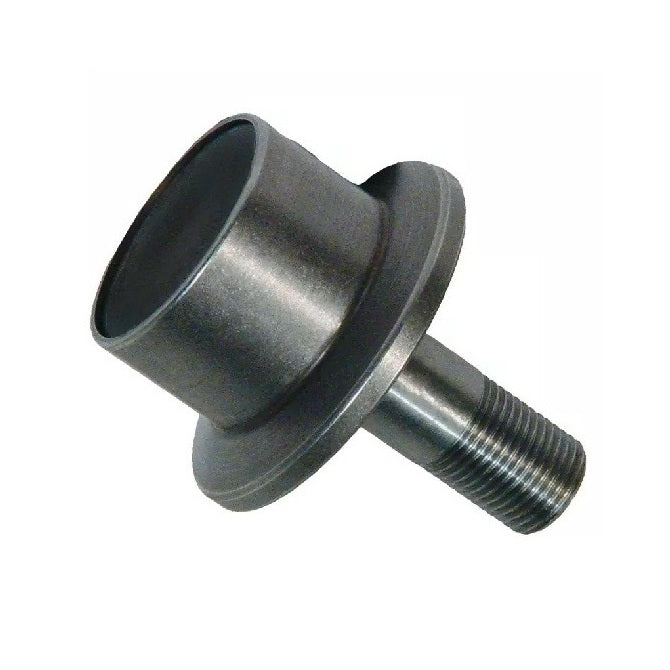

CCF265RS (Each)
Flanged Stud Cam Followers - 44.45x74.625 mm - 3/4-16 UNF - Steel Cam Follower
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $203.03 AUD Each
1-3/4x2-15/16 inch Cam Follower - 44.45x74.625 mm - 3/4-16 UNF Flanged Stud Cam Followers - Steel - Sold per Each:
Base Category: Cam Followers - Flanged Stud
Top Level Category: Cam Followers - Flanged Stud
Product Details

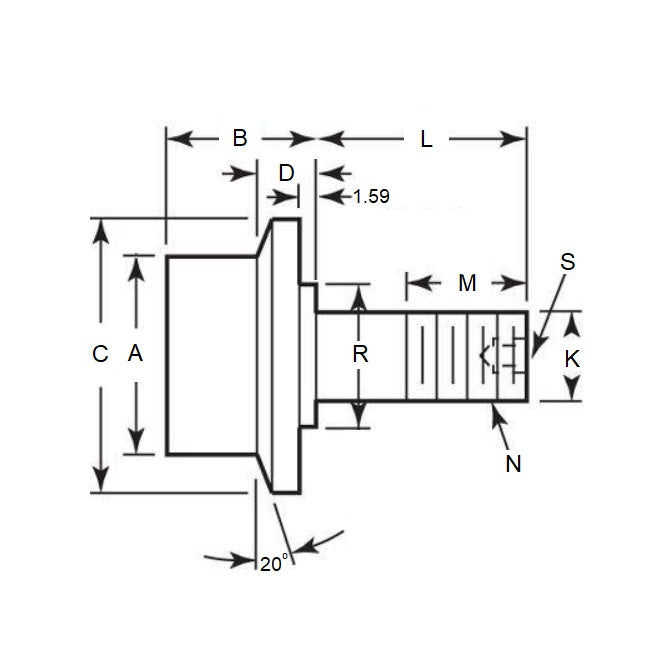

Diameter (A): 44.450mm(44.450mm is 1.75 in.)
Steel
- Diameter (A): 44.450mm
(44.450mm is 1.75 in.)
- Overall Length (B+L): 74.625mm
(74.625mm is 2.938 in.)
- Thread Size: 3/4-16 UNF
- Thread Length (M): 22.225mm
- Roller Width (B): 30.175mm
- Flange Diameter (C): 61.874mm
- Flange Width (D): 8.738mm
- Dyanmic Radial Load: 1250kg
- Dynamic Thrust Load: 770kg
- Thread Length (L): 44.45mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 9318K47
- Reid Tool® CCF-265
- CCF265
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCF265RS,
