WRI-0400-LS (PK-500)

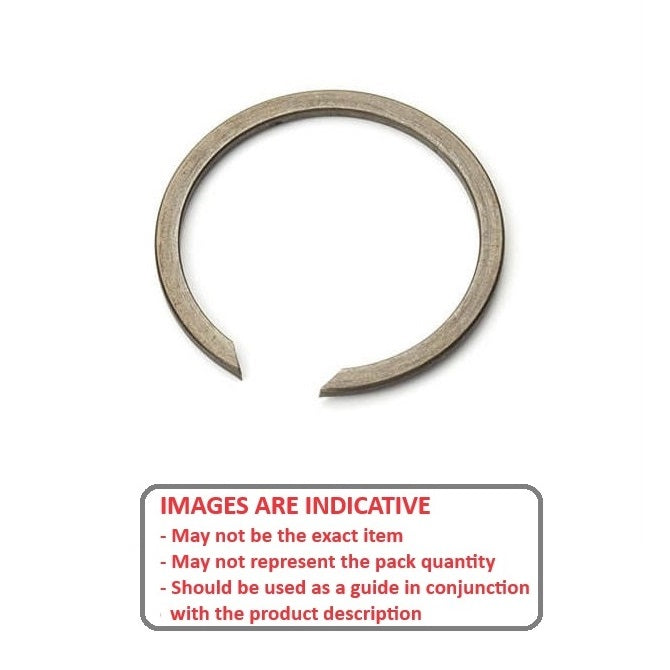

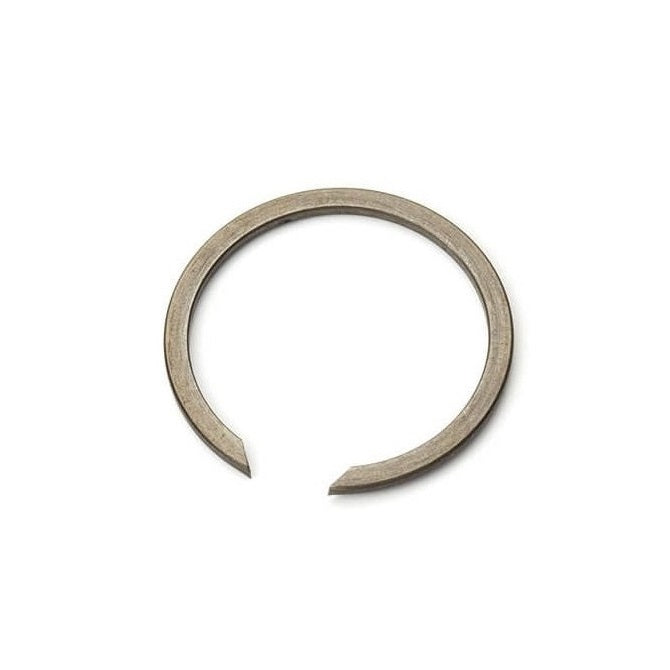

Internal Retaining Rings - 40x1.5x41.2 mm Snap Rings - Carbon Spring Steel Snap Ring
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Snap Rings and Spiral Rings PDF
40x1.5x41.2 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 500:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Product Details

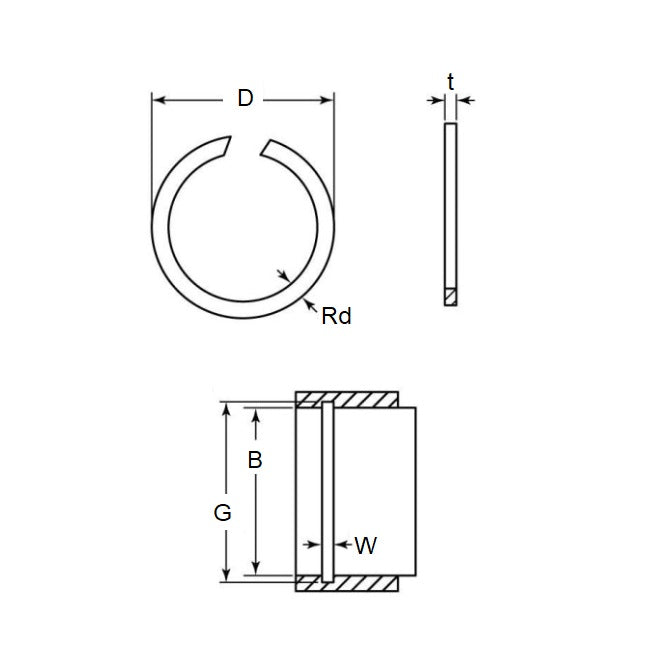

Housing Bore (B): 40.00mm(40.00mm is 1.575 in.)
Carbon Spring Steel
- Housing Bore (B): 40.00mm
(40.00mm is 1.575 in.)
- Clip Thickness (T): 1.50mm
+ 0 / - 0.10
(1.50mm is 0.059 in.)
- Groove Dia. (Dg): 41.20mm
+ 0.16 / - 0.00
(41.20mm is 1.622 in.)
- Approx. Loose Circlip OD (Dr): 41.80mm
- Section (Rd): 2.30mm
+ 0 / - 0.10
- Groove Width (W): 1.60mm
- Approx. Loose Clip ID: 37.2
- Section Profile: Rectangular with Square Edge
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® DSB-040
- NoCor® DSB-040
- Seeger® SB40
- Seeger® SB40A501-S
- WRI0400SQ
- SB40A501S
- M23000400APP
- M2300-0400APP
- DSB040
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRI0400LS, WRI0400
