REF-048-R-CN (PK-100)

Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel with Nylon Raceway Rod End

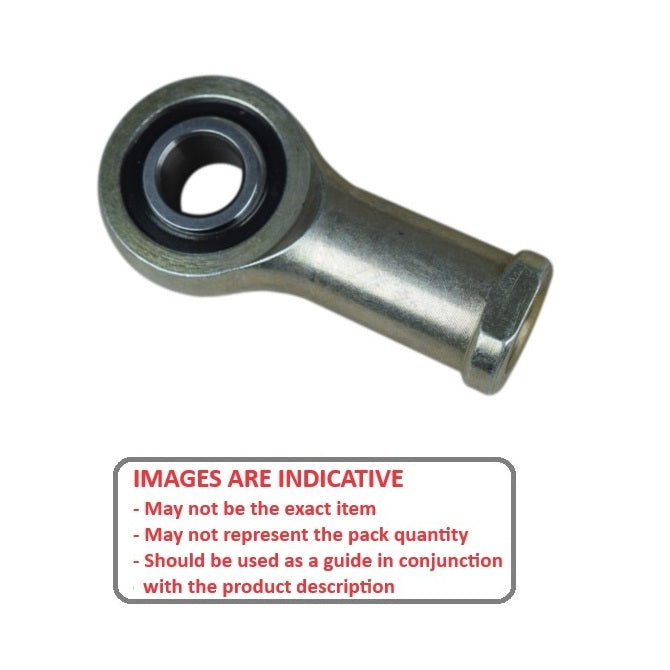

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel with Nylon Raceway
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$1,875.77 AUD
$1,875.77 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more packs of 100 (5000 pcs)
for $1,688.19 AUD per 100 pack
Backorder now! Backorders are expected before Jun 17, 2026

Base Category: Rod Ends - Female

Top Level Category: Rod Ends - Female - Steel - Plain - Nylon Raceway

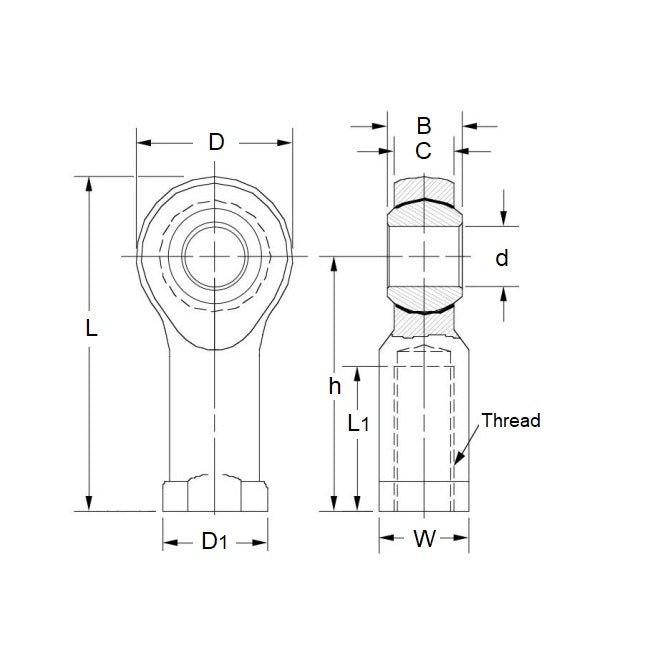

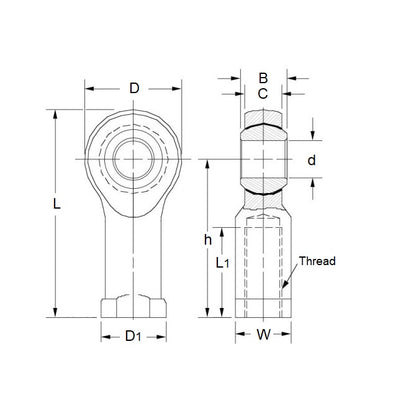

Product Details

Eye Size (d1): 4.826mm
(4.826mm is 0.19 in.)

Steel with Nylon Raceway
  • Eye Size (d1): 4.826mm
    (4.826mm is 0.19 in.)
  • Overall Length (L): 34.93mm
    (34.93mm is 1.375 in.)
  • Thread Size: 10-32 UNF Right
  • Thread Length (l2): 14.28mm
  • Head Width (W): 6.35mm
  • Eye Width (W1): 7.93mm
  • Head Diameter (D): 15.88mm
  • Centre Height (l1): 26.98mm
  • Body Width/Flange Width(W2/D3): 7.93 / 10.31mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Small Parts REJF-3
  • Reid Tool® SPF-3
  • REJF3
  • SPF3

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
