REF-048-L-CT

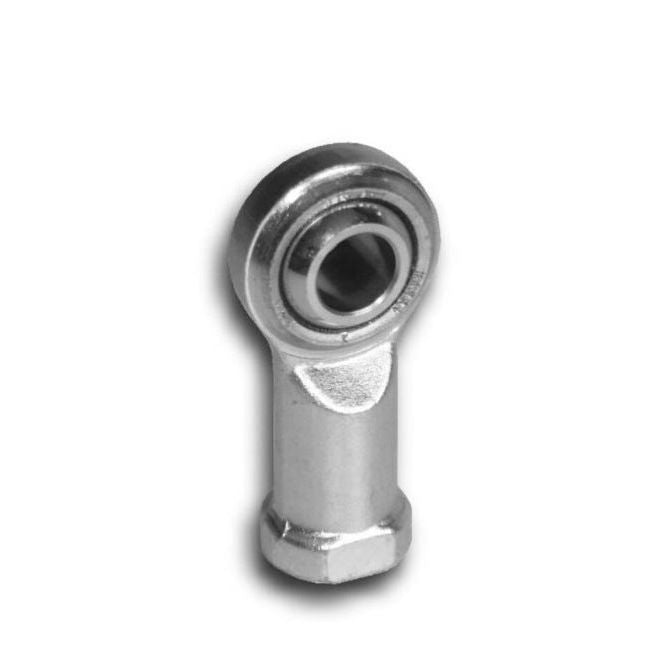

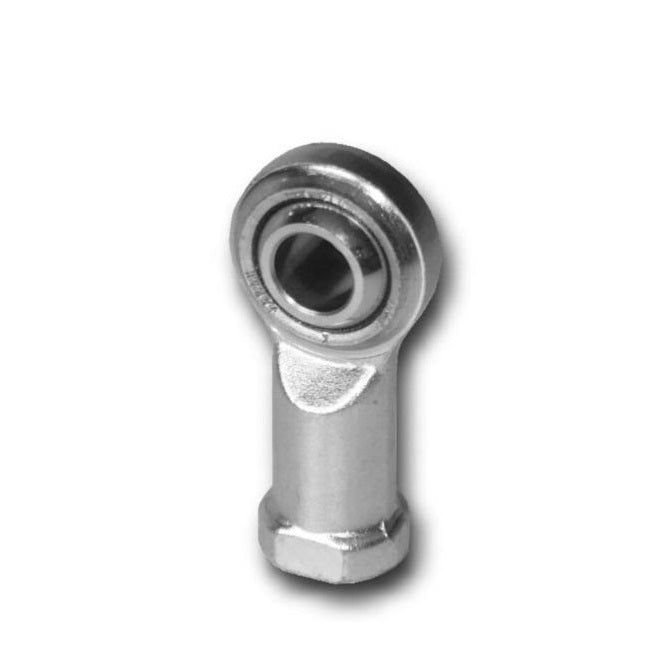

Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway

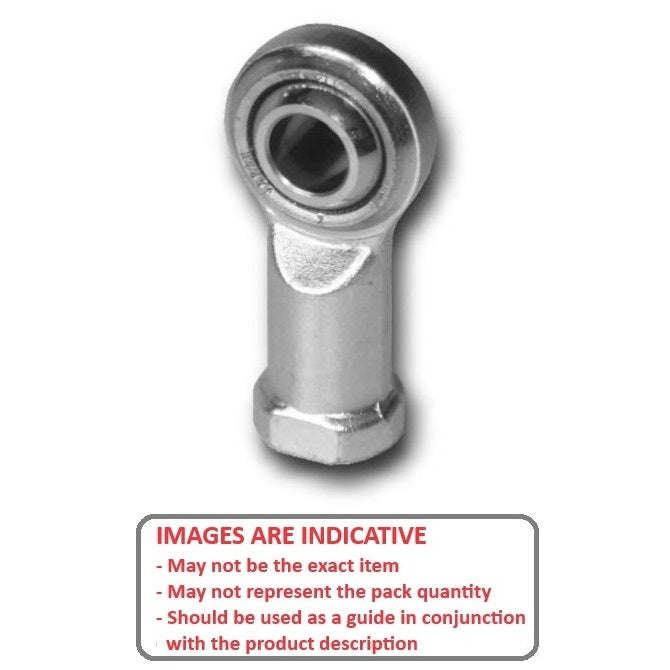

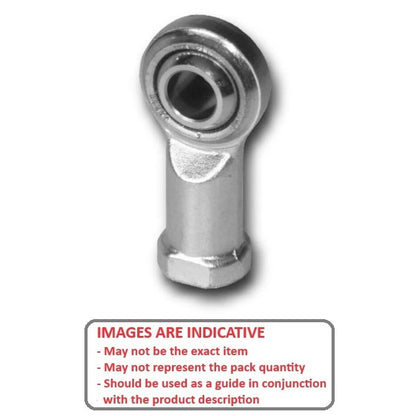

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$42.86 AUD
$42.86 AUD
Each
Out Of Stock
Order 50 or more for $38.57 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 07, 2025

Base Category: Rod Ends - Female

Top Level Category: Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit

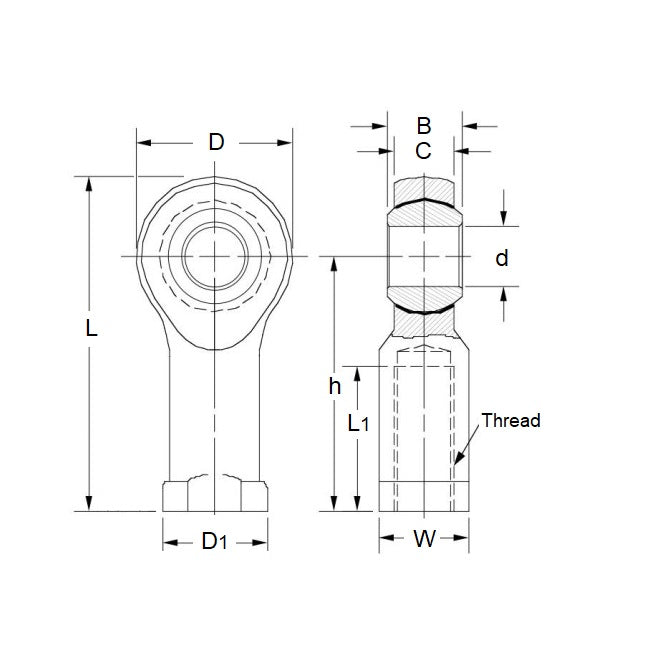

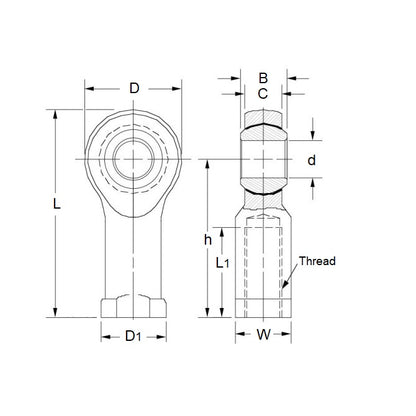

Product Details:

Eye Size (d1): 4.826mm
Steel with PTFE Lined Raceway
  • Overall Length (L): 34.93mm
  • Thread Size: 10-32 UNF Left
  • Thread Length (l2): 14.27mm
  • Head Width (W): 6.35mm
  • Eye Width (W1): 7.92mm
  • Head Diameter (D): 15.88mm
  • Centre Height (l1): 26.97mm
  • Body Width/Flange Width(W2/D3): 7.92 / 10.31mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: TFB3L, 2458K31-LEFT, 2458K31LEFT, ALTPART, KWK

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
