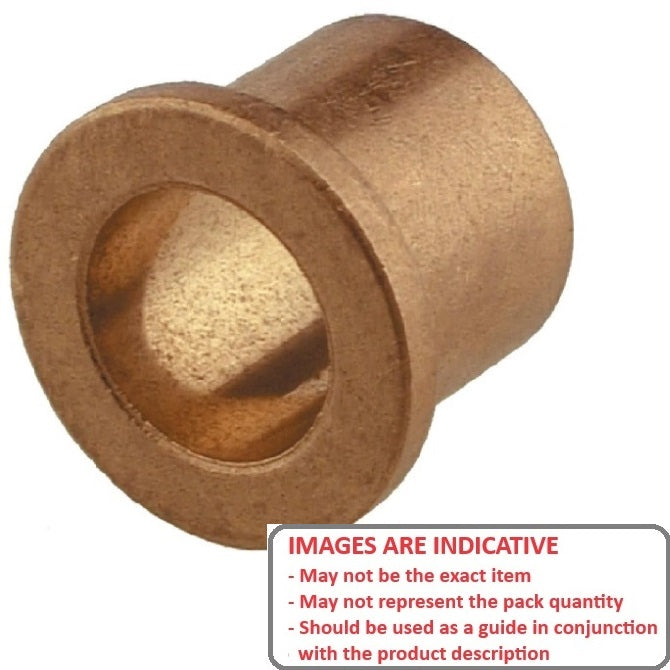

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Flanged Bushes - 4.763 mm x 7.938 mm x 3.416 mm
BF0048-0079-0034-BS1116LH

MBA

Additional resources:
Bushes PDF Catalogue
Price:
$9.05 AUD
$9.05 AUD
Each
Out Of Stock
Order 50 or more for $8.15 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Apr 02, 2025

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Bronze - Sintered

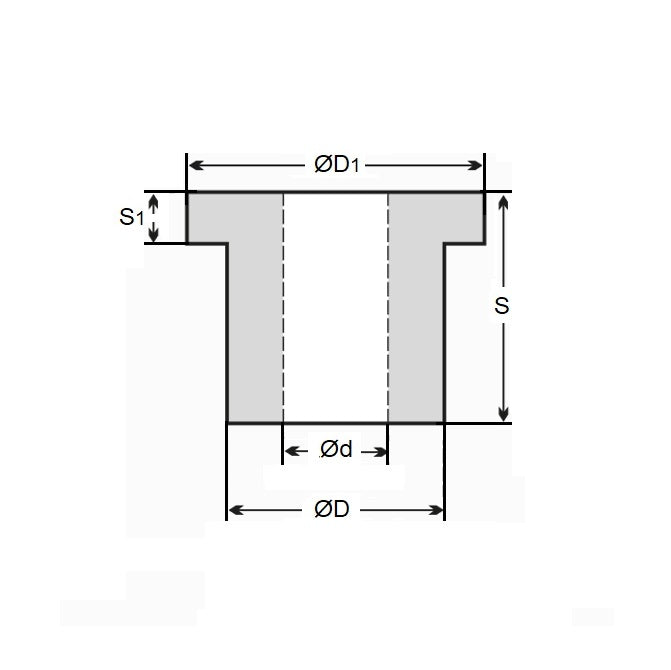

Product Details:

Nom. ID (d): 4.763mm
+ 0.000 / + 0.025

Bronze SAE 841 Sintered
  • Nom. OD (D): 7.938mm
    + 0.051 / + 0.076
  • Length (s): 3.416mm
    + 0.000 / - 0.178
  • Flange OD (D1): 11.11mm
  • Flange Thickness (S1): 1.57mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: BF004800790034BS, BF004800790034BSLH, A7B4-F040

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
