SFWR156A-ZZS-MC3 (Each)
Single Row Ball Bearings - 4.763x7.938x3.175 mm / 3.969 mm Flanged - Stainless Steel AISI 440C Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more
for $27.53 AUD Each
3/16x5/16x1/8 inch Bearing - 4.763x7.938x3.175 mm / 3.969 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per Each:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

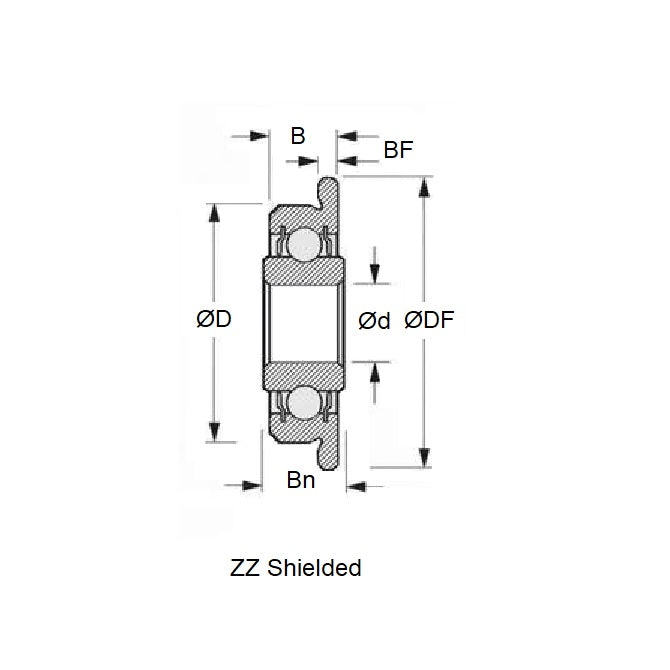

Product Details
ID (d): 4.763mm+ 0.000 / - 0.0075
(4.763mm is 0.188 in.)
Stainless Steel AISI 440C
- ID (d): 4.763mm
+ 0.000 / - 0.0075
(4.763mm is 0.188 in.)
- O.D. (D): 7.938mm
+ 0.000 / - 0.0075
(7.938mm is 0.313 in.)
- Width (B): 3.175mm
+ 0.000 / - 0.125
(3.175mm is 0.125 in.)
- Inner Ring Width (Bn): 3.969mm
- Flange Diameter (DF): 9.119mm
- Flange Width (BF): 0.914mm
- Precision Grade: Abec 1
- Closure Type: ZZS
- Bearing Type: Radial Flanged with Extended Inner
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- ALTPART
- 57155K334
- Reid Tool® DMB-57
- Stainless Alternative FWR156AZZSMC3
- Stainless Alternative FWR156A-ZZS-MC3
- MPB S5632FCHHE
- GRW SFE4763A-2Z
- Similar Part SFRW156
- Shielded Width A SFWR156/3.18
- Shielded SFWR156A / 3
- MPB SS5632FCHHE
- GRW SSFE4763A-2Z
- NHBB® SSFR156PPEE
- Similar Part SSFRW156
- Shielded Width A SSFWR156/3.18
- Shielded SSFWR156A / 3
- RMB® ULKUZ6010X
- ADR WFLAX3-16-ZZ
- SSFRW156SS
- SSFRW156ZZ
- SSFRW156-ZZ
- SSR1F-5632-ZZEE
- SSFE4763A2Z
- SSR1F5632ZZEE
- SS-R1F-5632-ZZEE
- SSFWR156A-ZZSMC3
- SSFWR156AZZSMC3
- DDR1F5632ZZEE
- DDR1F-5632-ZZEE
- DD-R1F-5632-ZZEE
- WFLAX316ZZ
- DMB57
- FWR156ABASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SFWR156AZZSMC3, FWR156A
