BFM-187-A (Each)

Flanged 2 Bolt Housing and Bearing Assembly - 4.762x45.72x10.41 mm Self Aligning - Delrin ™

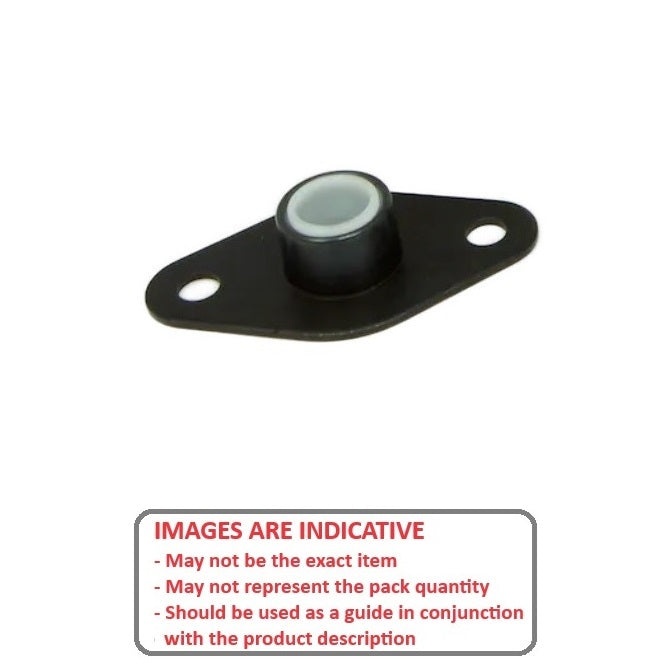

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged 2 Bolt Housing Assembly - 4.762x45.72x10.41 mm - Delrin ™
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 5 available now
Only 5 may be ordered online. If you need a large quantity, please contact us.

3/16x1 inch Housing - 4.762x45.72x10.41 mm Flanged 2 Bolt Housing and Bearing Assembly - Delrin ™ - Sold per Each:

Base Category: Housing and Bearing Assembly - Flanged 2 Bolt

Top Level Category: Housing and Bearing Assembly - Flanged 2 Bolt - Self Aligning - Plastic

Product Details


Deleted Item. Available while stocks last.

Nominal Shaft Size: 4.762mm
(4.762mm is 0.187 in.)

Delrin ™
  • Nominal Shaft Size: 4.762mm
    (4.762mm is 0.187 in.)

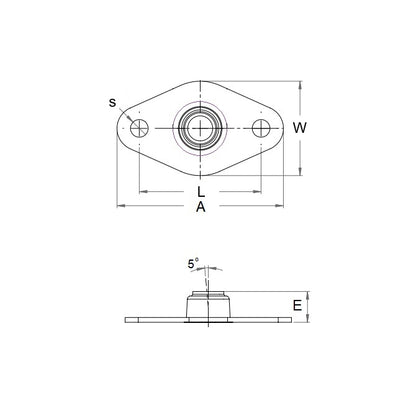

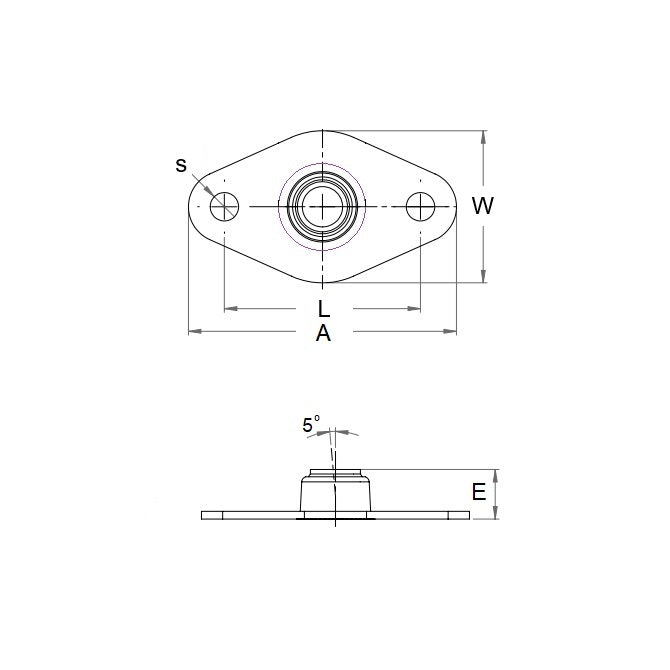

  • Width (W): 45.72mm
    (45.72mm is 1.8 in.)
  • Overall Length (A): 10.41mm
    (10.41mm is 0.41 in.)
  • Overall Height (E): 22.10mm
  • Min to Max Shaft Dia.: 4.788 to 4.839mm
  • Max. Radial Dynamic Load: 222N
  • Bolt Hole Centres (L): 30.73mm
  • Max Speed: 2010

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data


We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BFM187A, BFM187
