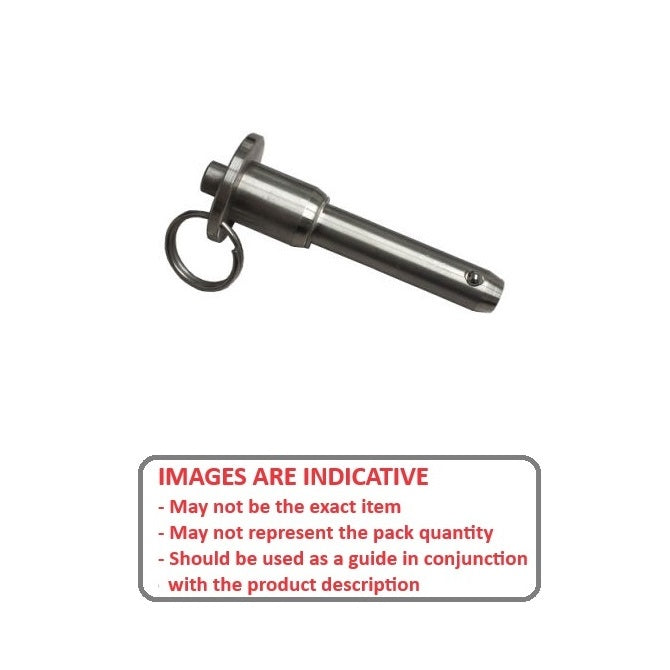

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

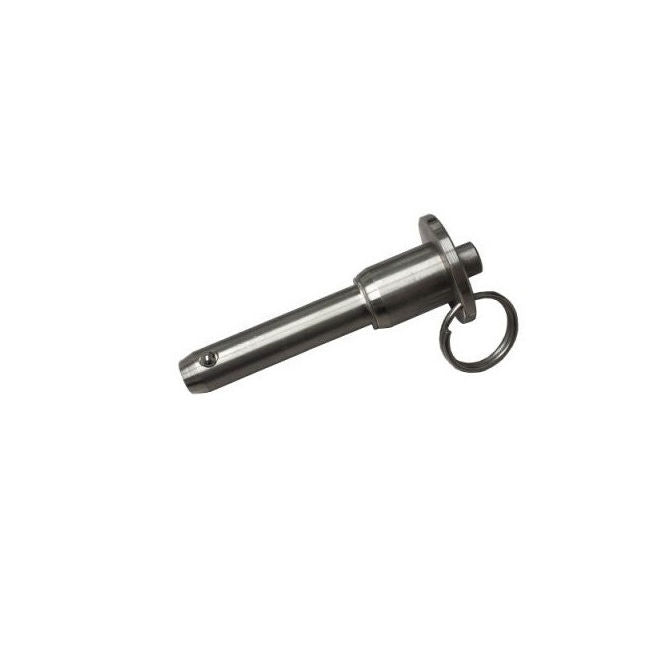

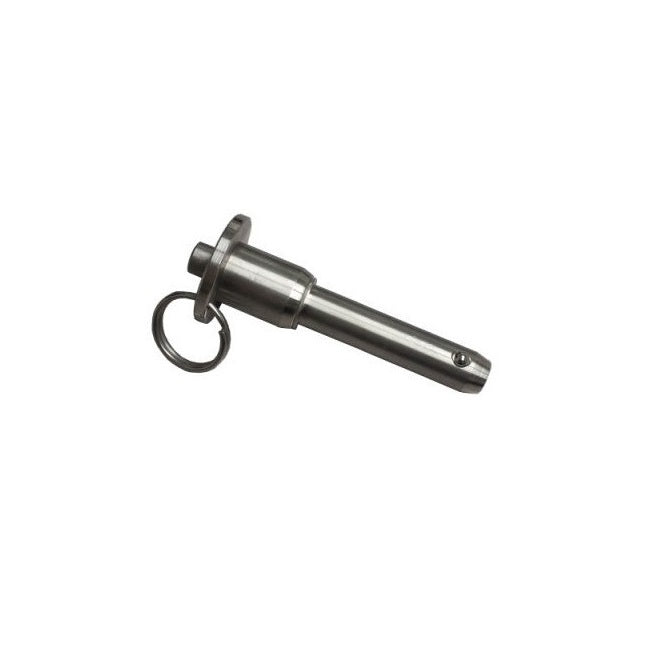

Pins - 4.76 mm x 31.75 mm 17-4 PH Stainless / Aluminium Handle
BLP-048-0318-BT-S17

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$80.23 AUD
$80.23 AUD
Each
Out Of Stock
Order 50 or more for $72.21 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 18, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Button Handle - Stainless Steel

Product Details:

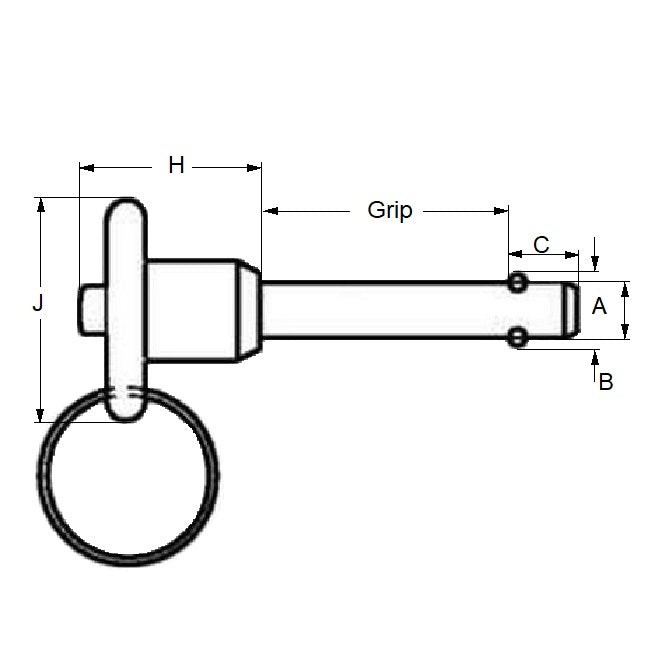

Nominal Diameter: 4.76mm
Stainless 17-4PH with Aluminium Handle
  • Grip Length: 31.75mm
  • Pin Material Grade: 17-4 PH Stainless / Aluminium Handle
  • Locking Ball to End (C): 6.60mm
  • Open Ball Distance (B): 5.58mm
  • Ring Diameter (F): 26.92mm
  • Handle Length (R): 18.54mm
  • Pull Out Strength: 90.00Kg
  • Calc. Double Shear Strength: 2330Kg
  • Max. Diameter: 4.78mm
  • Min. Diameter: 4.76mm

Brand: MBA
Country of Origin: DE

Alternatives: 90985A103, BLB-002, BLBS-0016, BLBS-0016A

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
