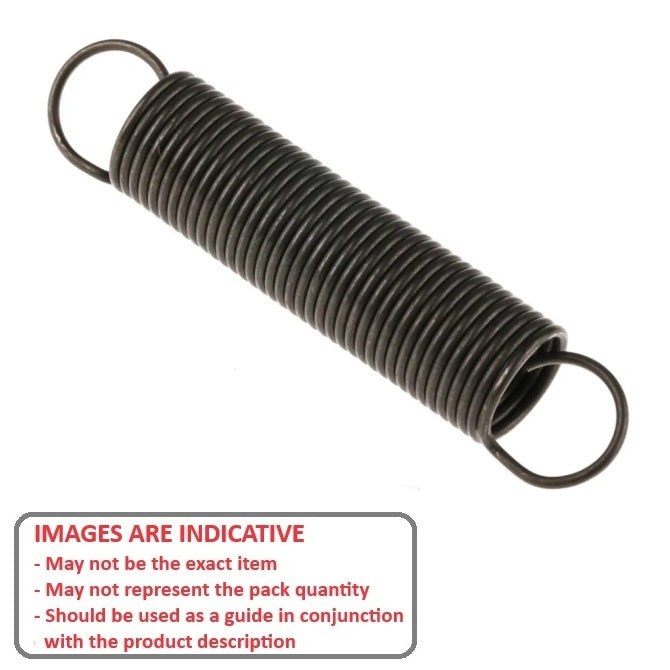

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

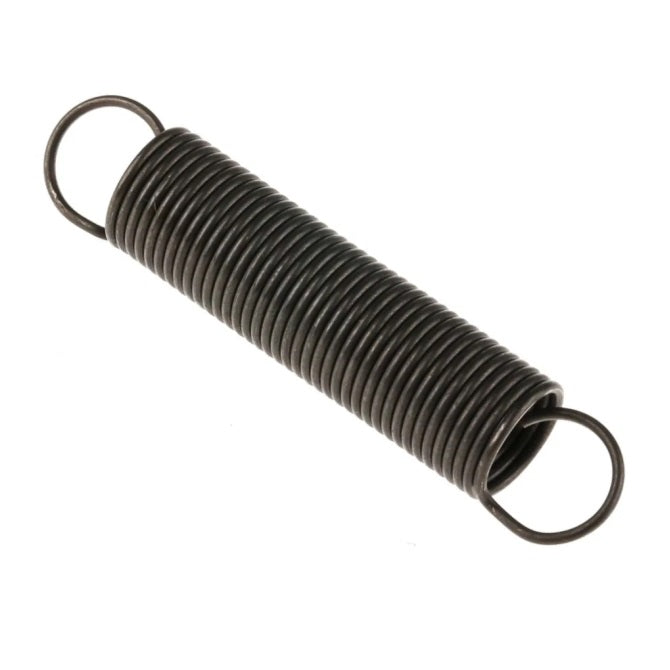

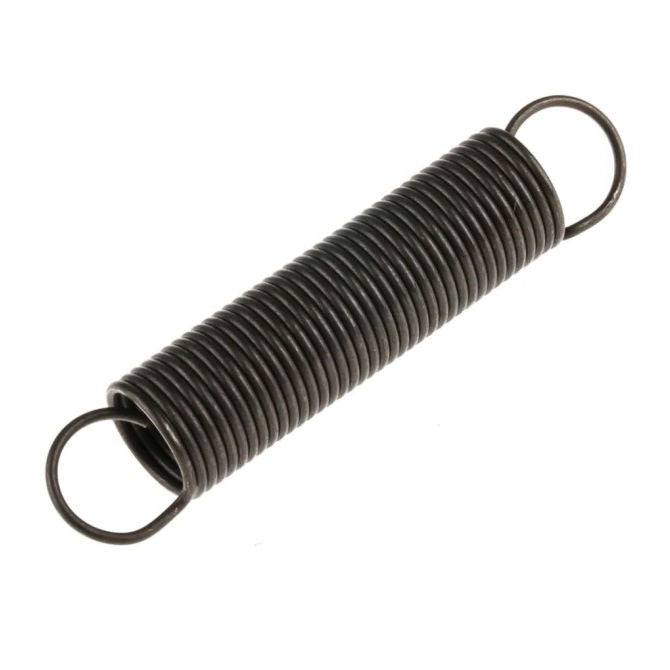

Springs - 4.57 mm x 50.8 mm x 0.89 mm
ES-0457-0508-09-M

Name: 1057631 | ES-0457-0508-09-M --- Springs - 4.57 mm x 50.8 mm x 0.89 mm
Brand: MBA
SKU: ES0457050809M
Price: 7.59 AUD
Availability: InStock

MBA

Category: Springs - Extension - Music Wire

Additional resources:
Spings Catalogue PDF
Spring Anchors

Price:

$7.59 AUD

Each
Out Of Stock
Order 50 or more for $6.83 AUD Each

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 26, 2025

Quantity

Base Category: Springs - Extension

Top Level Category: Springs - Extension - Music Wire

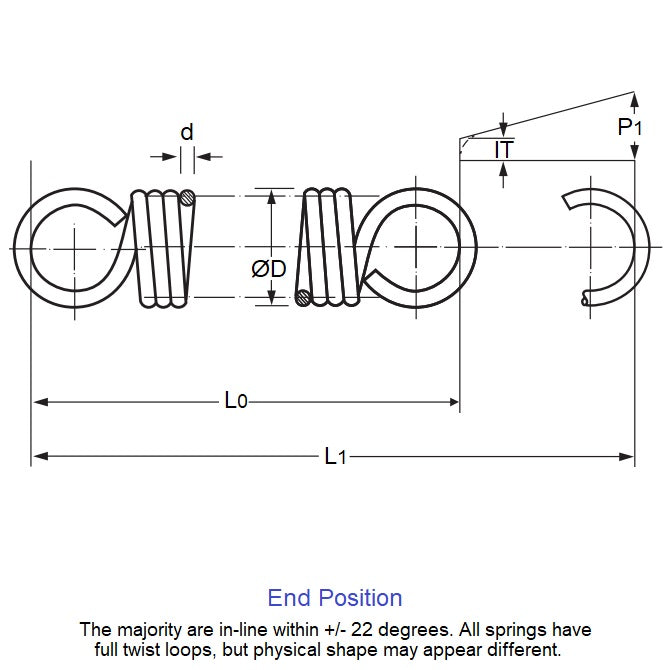

Product Details:

OD (D0): 4.57mm
Steel

Overall Length (L0): 50.8mm
Wire Diameter (d): 0.89mm
Max. Extension (L1): 67.820mm
Spring Rate: 2.140N/mm
Initial Tension (IT): 3.6N
Load at L1: 39.900N
End Type: Closed - Full Loop

Brand: MBA
Country of Origin: AU

Alternatives: E0180-035-2000
