W0042-T-009-008-W3-S2 (PK-100)

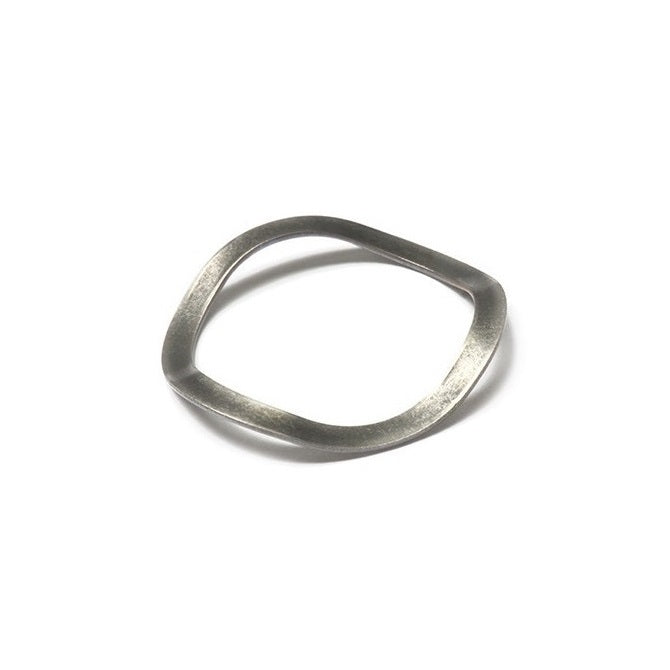

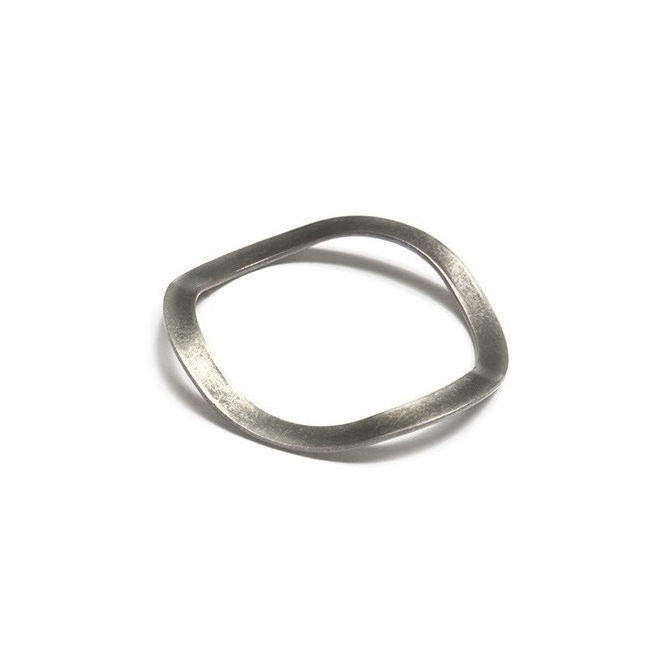

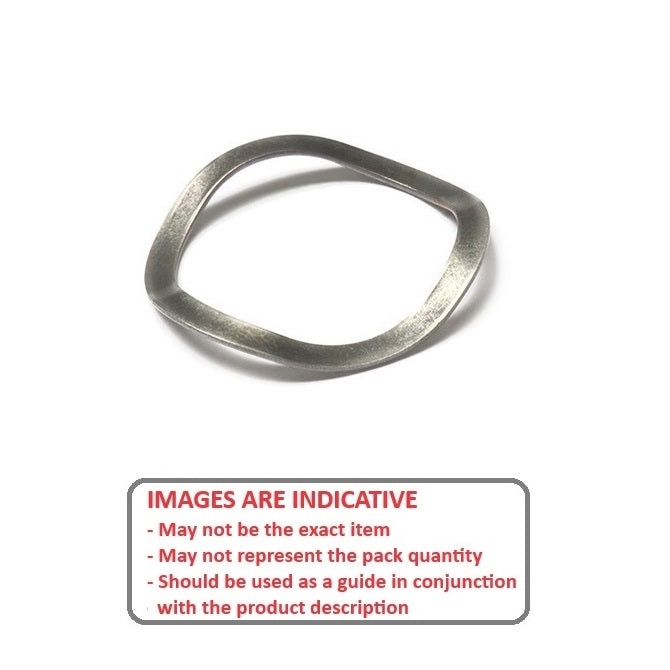

Spring Washers - 4.17x8.64x0.76 mm Wave - Stainless Steel 302/304 Similar to A2 or 18-8 Washer
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Assortment Kits
Screws
4.17x8.64x0.76 mm Spring Washers - Stainless Steel 302/304 (Similar to A2, 18-8) - Sold per pack of 100:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - 302 Stainless Steel
Product Details
Deleted Item. Available while stocks last.

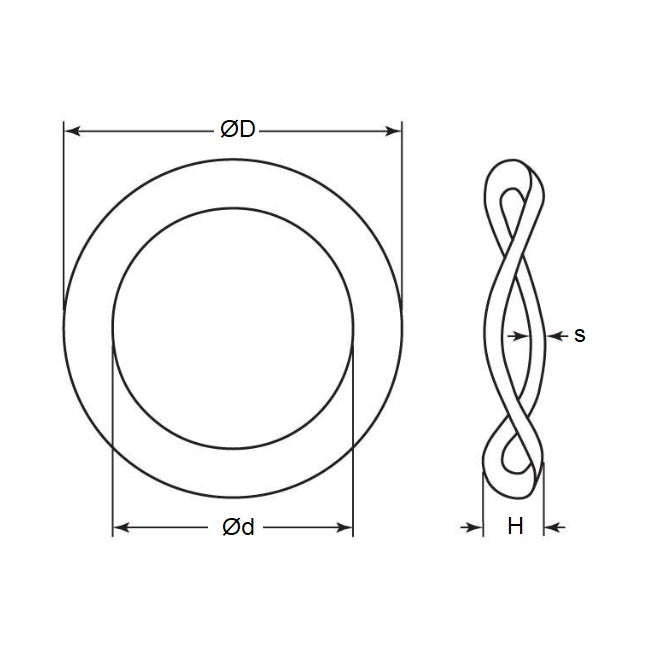

Nominal Inside Diameter (d): 4.17mm
(4.17mm is 0.164 in.)
Stainless Steel 302/304 (Similar to A2, 18-8)
- Nominal Inside Diameter (d): 4.17mm
(4.17mm is 0.164 in.)
- Nominal Outside Diameter (D): 8.64mm
(8.64mm is 0.34 in.)
- Nom. Height (H): 0.76mm
(0.76mm is 0.03 in.)
- Thickness (s): 0.25mm
- Type: 3 Wave
- Nominal Screw Size: M4, 5/32, 8-32, 8-36
- Actual ID (Ref): 4.5mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- MB3401XP340X010
- MB3401-XP340X010
- AB3401XP340X010
- AB3401-XP340X010
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0042T009008W3S2, W0042T009
