STSI3201550

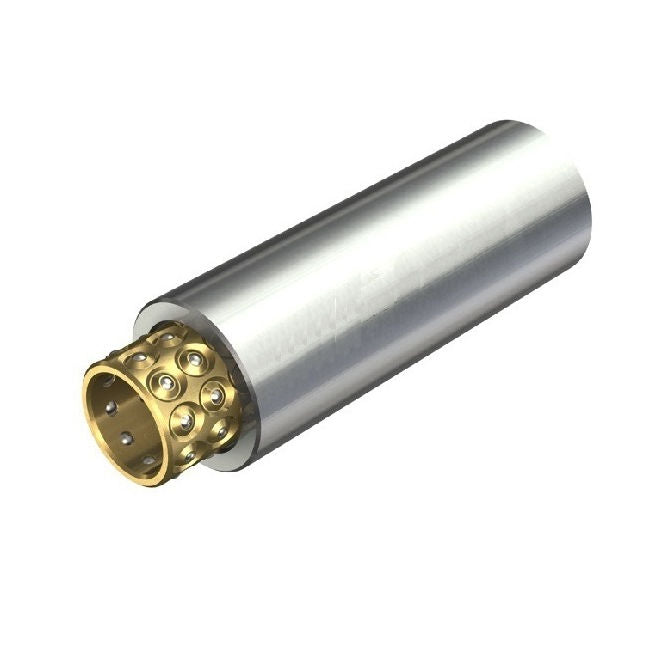

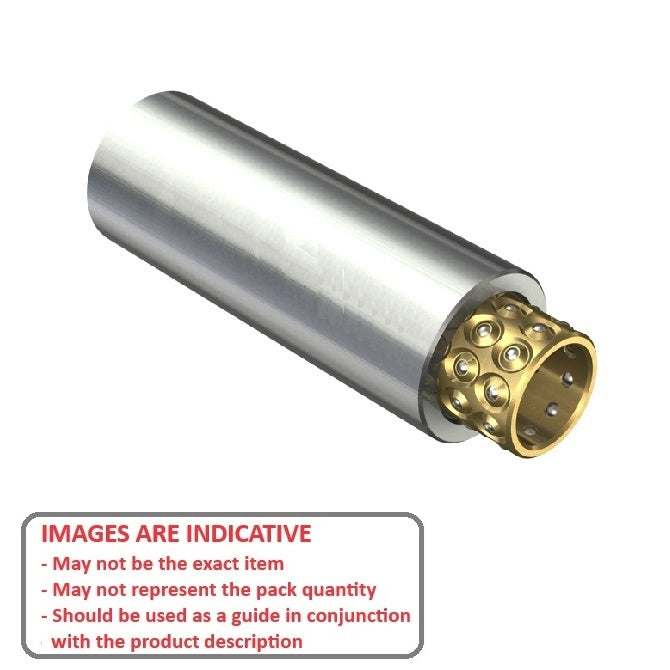

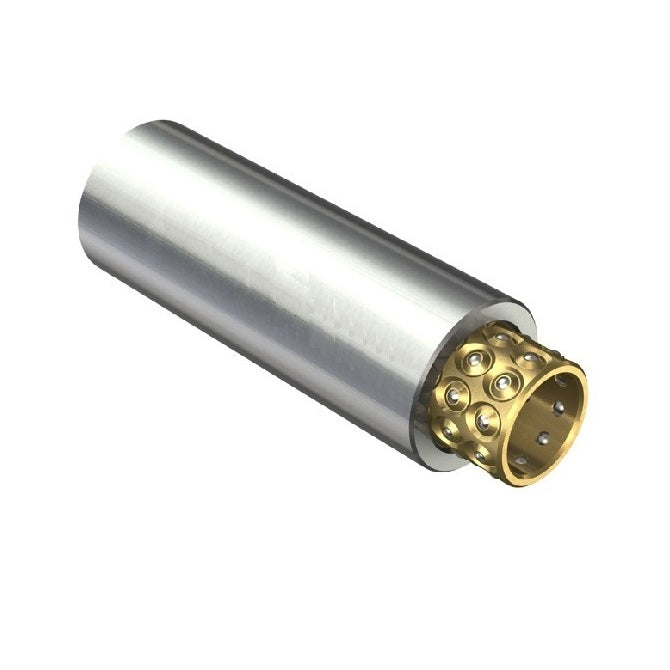

Stroke Rotary Bushings - 3x7x20 mm

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$204.23 AUD
$204.23 AUD
Each
Out Of Stock
Order 50 or more for $183.81 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before May 21, 2025

Base Category: Bushings - Stroke Rotary

Top Level Category: Bushings - Stroke Rotary - Miniature

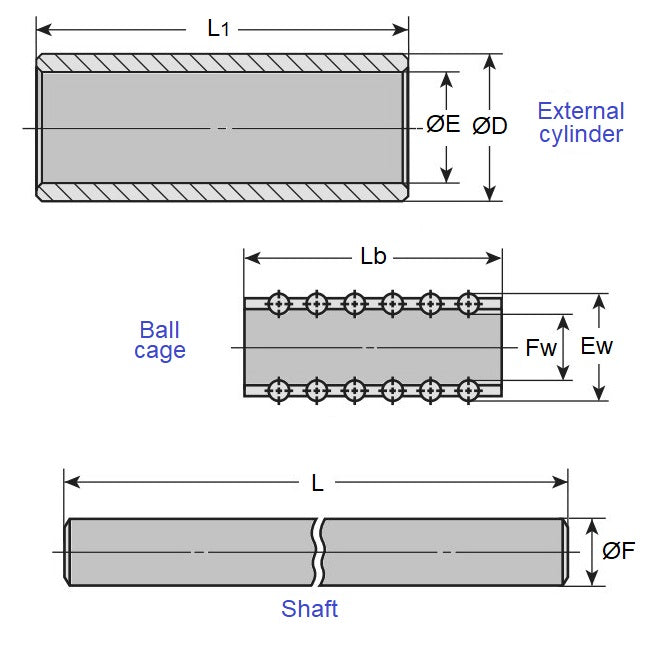

Product Details:

Shaft Diameter (F): 3.000mm
  • Outer Ring Diameter (D): 7.000mm
  • Outer Ring Length (L1): 20.00mm
    + 0 / - 0.0006
  • Outer Ring Bore Size (E): 5.000mm
  • Max. Radial Runout on Dia. D: 0.01
  • Basic Static Load Rating: 57.70Co N
  • Ball Cage Bore (Fw): 3.00mm
  • Ball Cage Diameter (Ew): 5.00mm
  • Ball Cage Length (Lb): 15.00mm
  • Shaft Length (L): 50.00mm

Brand: MBA
Country of Origin: JP

Alternative Parts Include: STSI3-201550, STSI3201550, ISO

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
