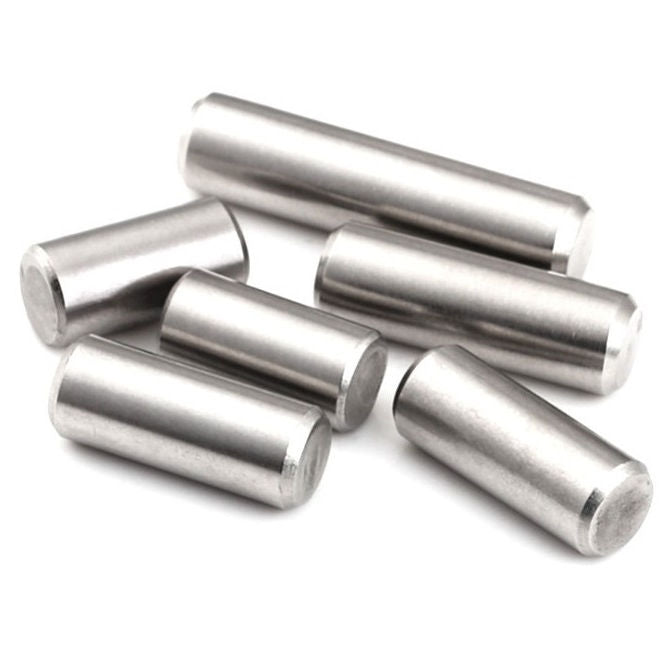

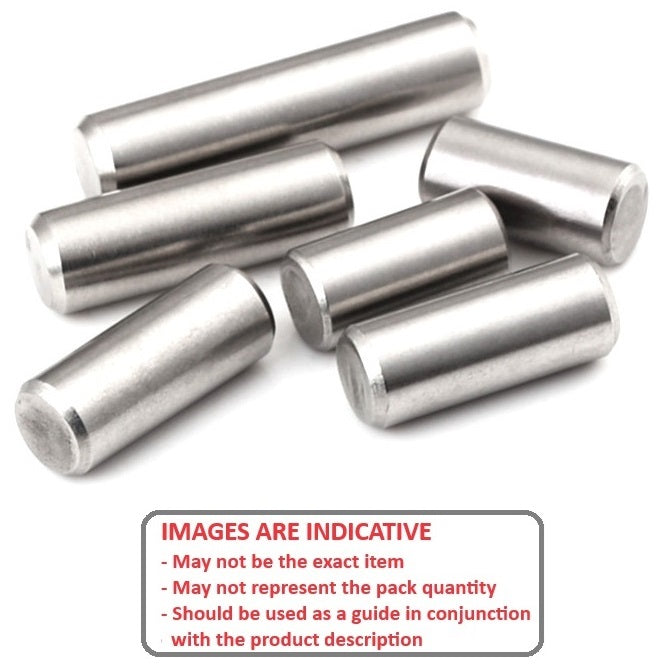

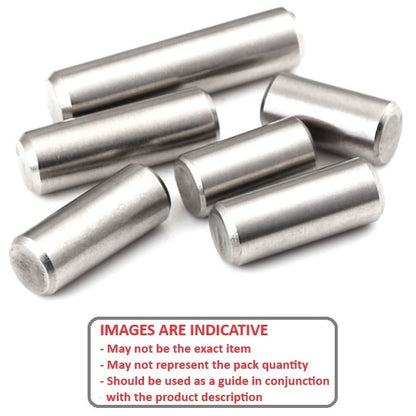

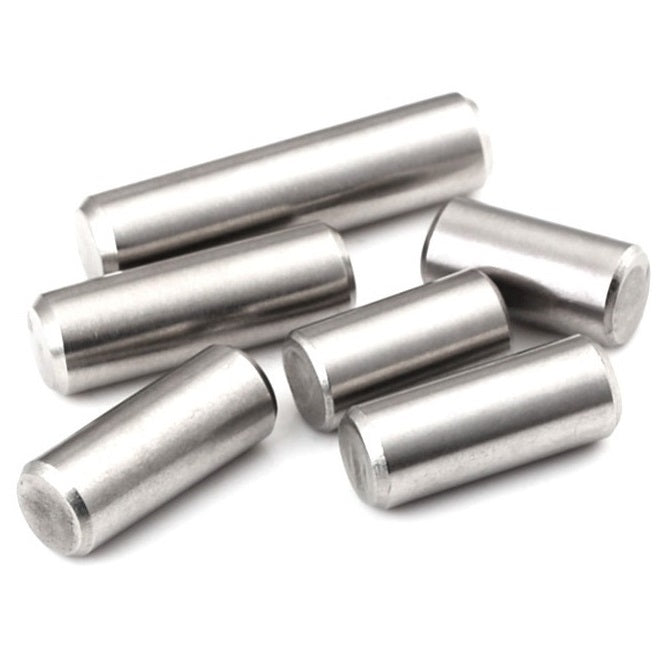

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

Pins - 3 mm x 5 mm x 5 mm
DP030-005-303-2 (100 Pcs)

Name: 1046008 | DP030-005-303-2 (100 Pcs) --- Pins - 3 mm x 5 mm x 5 mm
Brand: MBA
SKU: DP0300053032
Price: 6.86 AUD
Availability: InStock

MBA

Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$6.86 AUD

~~$10.30 AUD~~ $6.86 AUD

per 100
Qty: 8 available now (800 pcs)

Similar Items

Only 8 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 3.000mm
_{+0.004/+0.012}

303 Stainless HRB80

Length (L): 5.00mm
_+/-0.254
Overall Length: 5.00mm
_+/-0.254

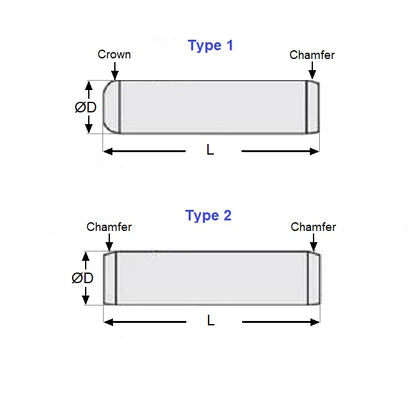

Type: 2 (See diagram)
Chamfer: 0.50 x 15 Deg
Standard: Based on ISO 2338

Brand: NoCor
Country of Origin: IN

Alternatives: DOWMS-030-005

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
