DP030-025-CH-1 (20 Pcs)

Dowel Pins - 3x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62

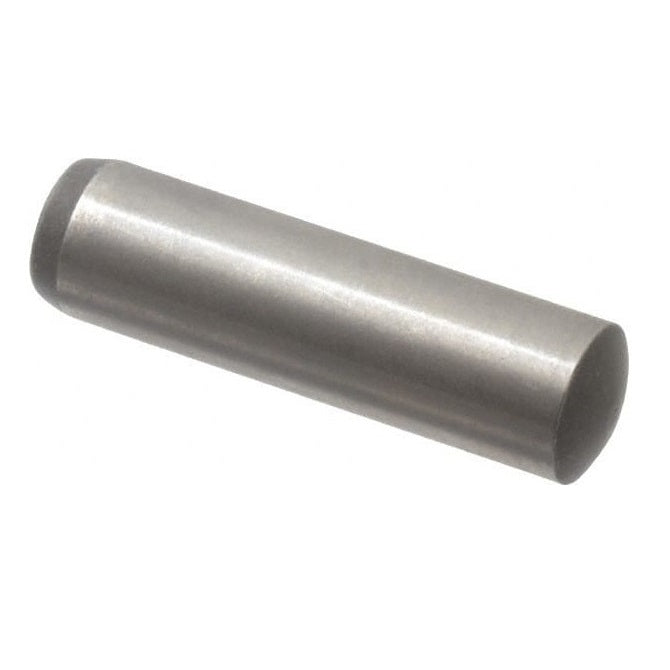

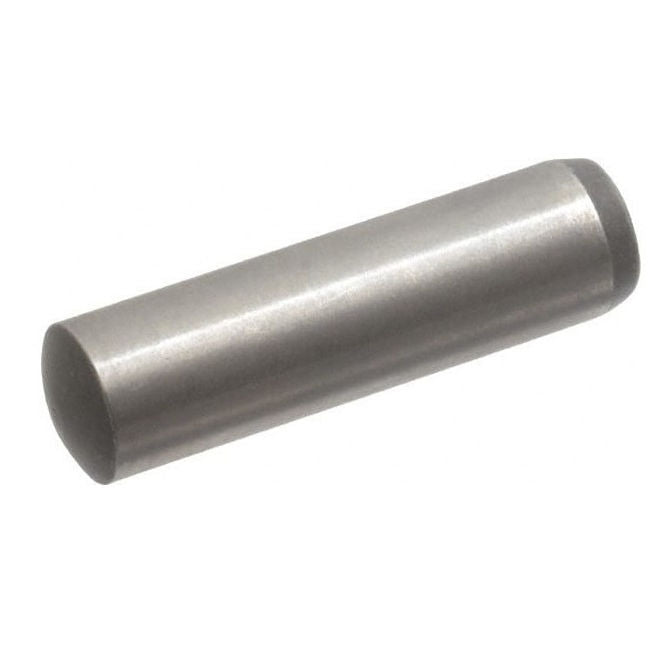

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$8.59 AUD
$8.59 AUD
per 20
Qty: 23 available now (460 pcs)
Order 50 or more (1000 pcs) for $7.73 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 26, 2025

Pickup available at Shop location

Usually ready in 4 hours

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 14058


Diameter (D): 3.000mm
+ 0.004 / + 0.012
(3.000mm is 0.118 in.)

Steel Alloy - Heat Treated and Ground Rc 58-62
  • Length (L): 25.00mm
    +/- 0.420
    (25.00mm is 0.984 in.)
  • Approx. Overall Length: 25.00mm
    +/ - 0.420
    (25.00mm is 0.984 in.)

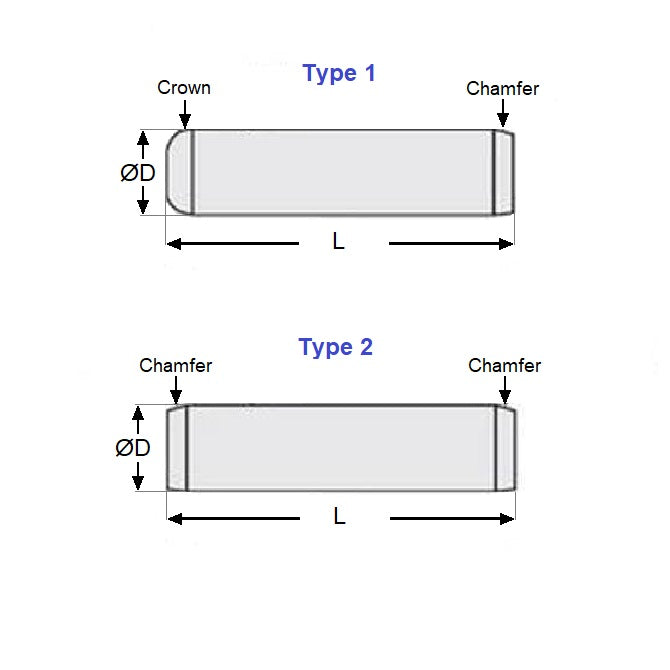

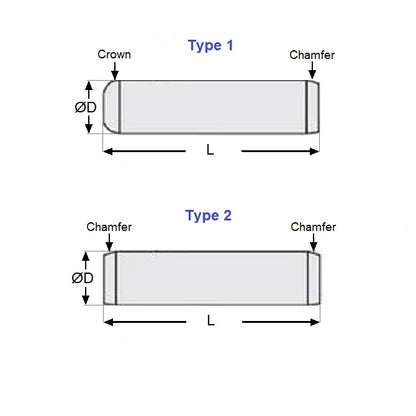

  • Type: 1 (Chamfer One End)
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternative Parts Include: DOWMH030025, DOWMH-030-025, 536016, Brighton Best, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
