Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

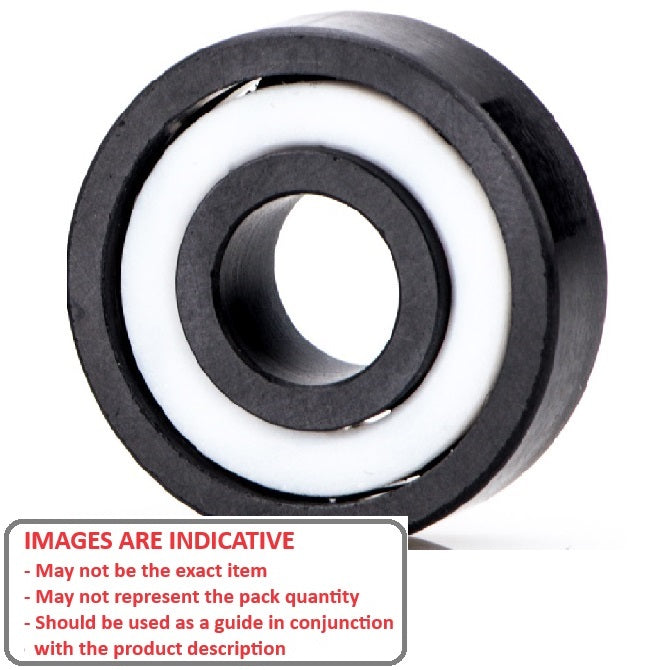

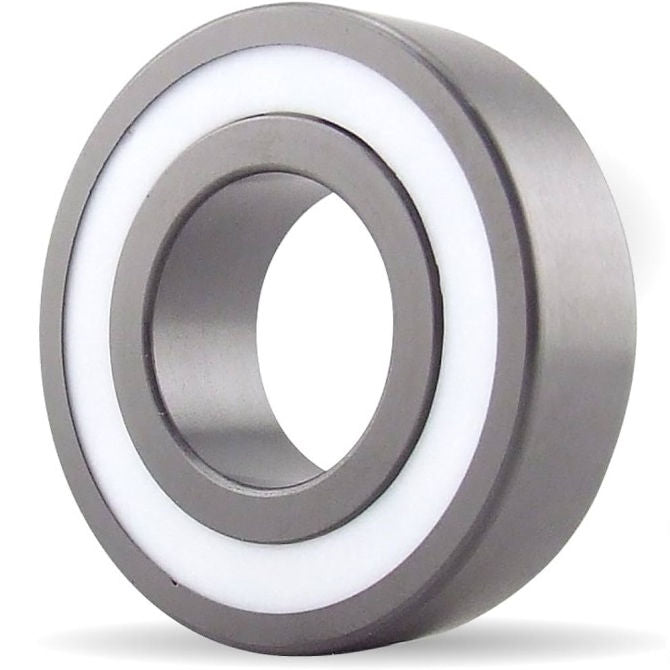

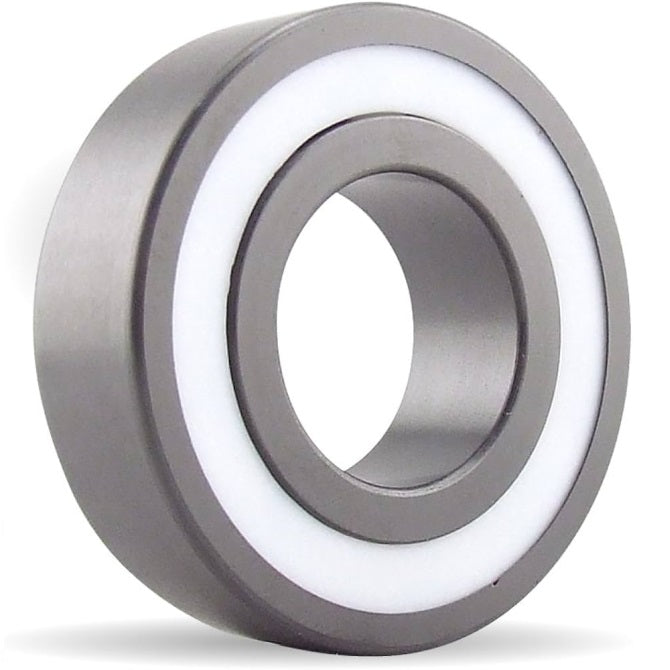

Bearings - 3 mm x 10 mm x 4 mm
CSN-623-TTS-MC34-PK-DRY

Name: 1046896 | CSN-623-TTS-MC34-PK-DRY --- Bearings - 3 mm x 10 mm x 4 mm
Brand: MBA
SKU: CSN623TTSMC34PKDRY
Price: 38.32 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Ceramic Bearings PDF Download

Price:

$38.32 AUD

Each
Qty: 2 available now
Order 50 or more for $34.49 AUD Each

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 27, 2024

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4

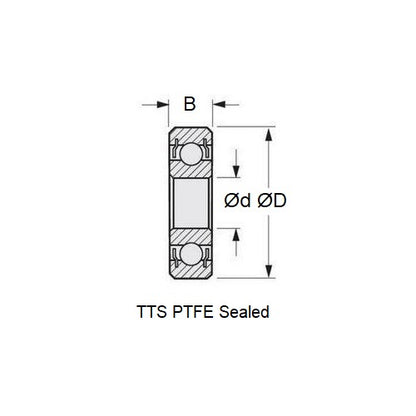

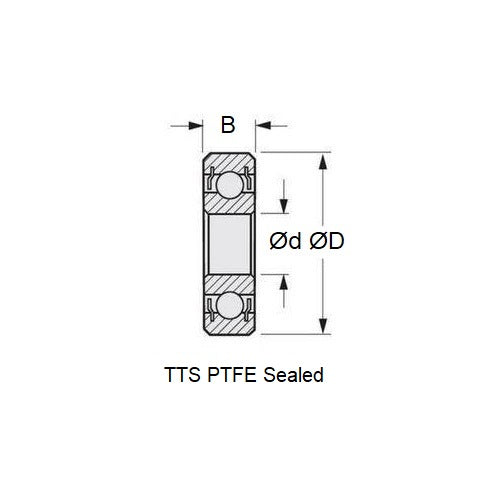

Product Details:

ID (d): 3.000mm
_{+0.000/-0.0075}

Silicon Nitride / PEEK Cage / PTFE Seals

OD (D): 10.000mm
_{+0.000/-0.0075}
Width (B): 4.000mm
_{+0.000/-0.125}
Precision Grade: Abec 1
Closure Type: TTS
Bearing Type: Radial
Lubricant: No Lube

Brand: MBA
Country of Origin: TW

Alternatives: CSN623PKTTS, CSN623PKTTSDRY, CSN623PKTTSMC34DRY, CSN623TTSMC34PKDRY, CSN623TTSTFMC34PKDRY

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for Fishing Reel Parts. Brands: Abu Garcia, Shimano. Models: 10000C-1988, 4500C, 4600C, 5600, 6500, 6500C - 6500C3, 6600C, 7000, 7000-C3, 7500, 9000C, Bantam 10X, Bass One, BM3600C, BM5600C, Calais CL200 / CL200-5, Calcutta 50-100-150-200-250-251-400-600, Chronarch 100SF, Curado 200, PM1600C, SM1600C, T3000C, ULT.

View full details
