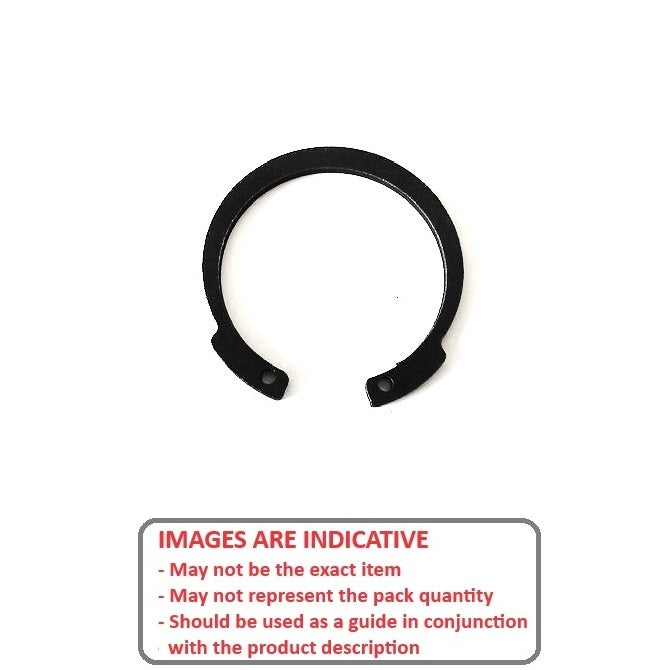

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

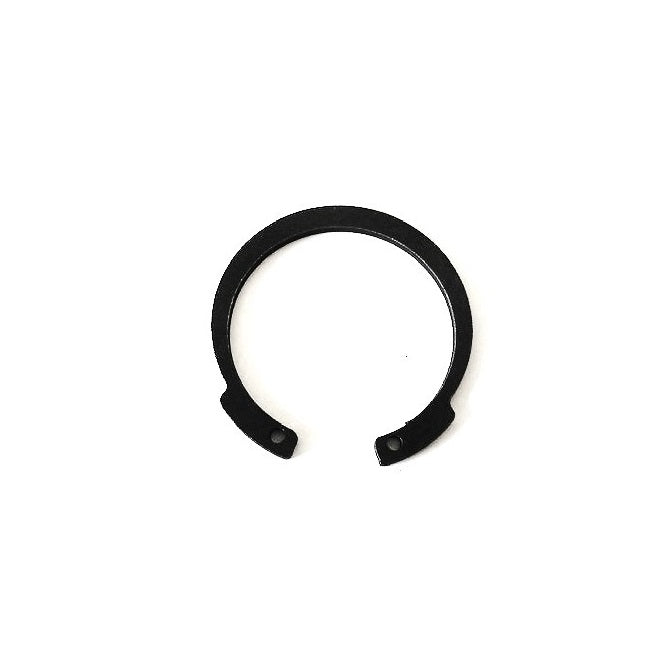

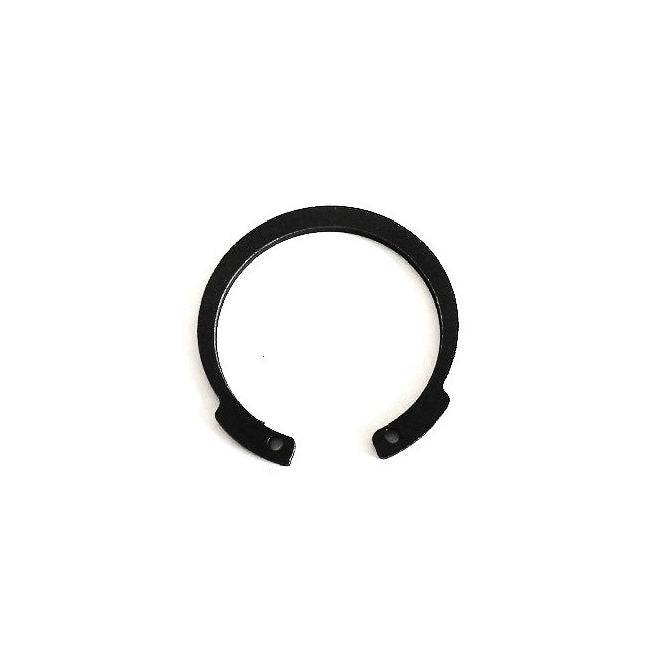

Internal Retaining Rings - 39.67 mm x 1.57 mm x 42.11 mm
CCI-03967-C-V (5 Pcs)

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Price:
$14.23 AUD
$14.23 AUD
per 5
Out Of Stock
Order 50 or more (250 pcs) for $12.81 AUD per 5
Pre-Order now! Backorders for more than the stock quantity are expected before Apr 16, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Inverted

Product Details:

Additional stock available from USA subject to Prior Sale = 500

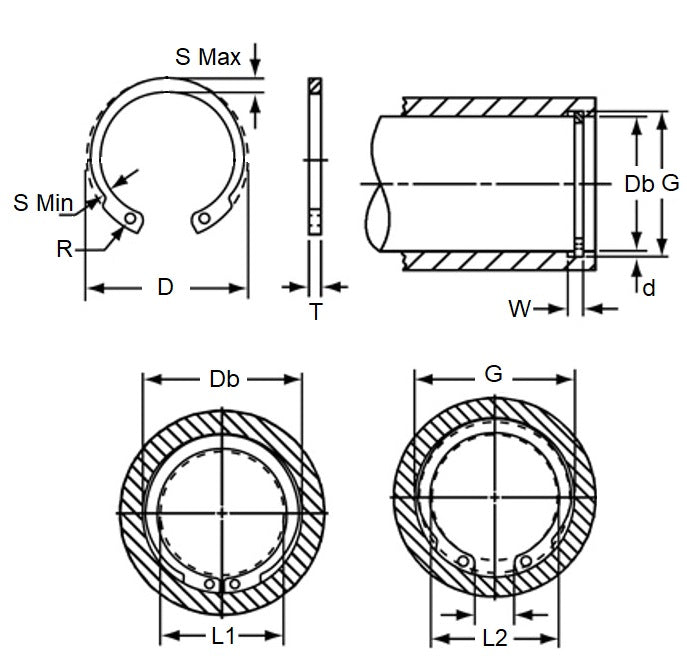

Housing Bore (B): 39.67mm
Carbon Steel
  • Clip Thickness (T): 1.57mm
    +/- 0.127
  • Groove Dia. (Dg): 42.11mm
    +/- 0.076
  • Approx. Loose Circlip OD (Dr): 44.04mm
  • Radial Wall Max (S): 1.88 - 4.01
  • Groove Width (W): 1.73mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: HOI-156, 90442A716, N1308-0156, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
