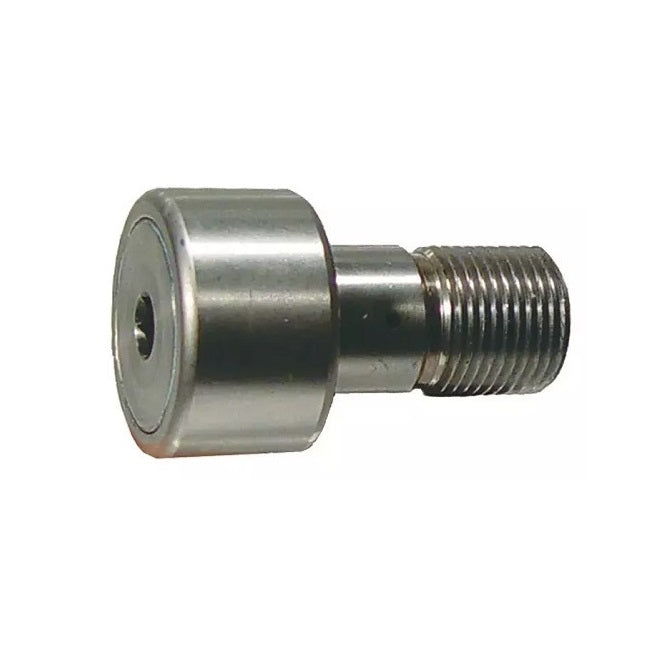

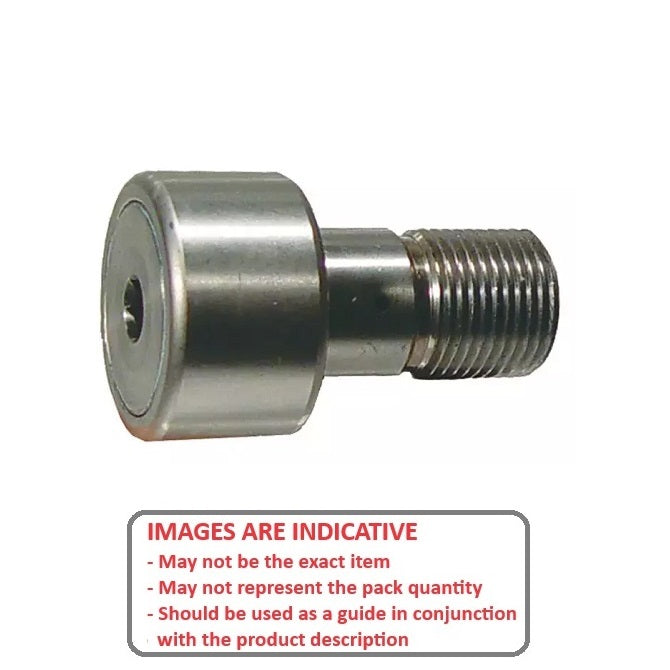

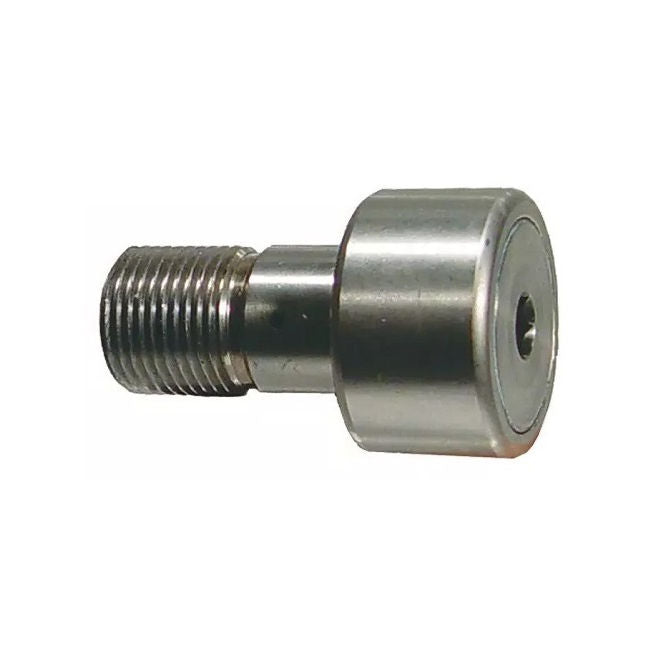

Cam - 38.1 mm x 60.325 mm 5/8-18 UNF
CCF390RS
Out Of Stock
Order 50 or more for $423.77 AUD Each
Base Category: Cam Followers - Needle Roller Type
Top Level Category: Cam Followers - Needle Roller Type - Standard

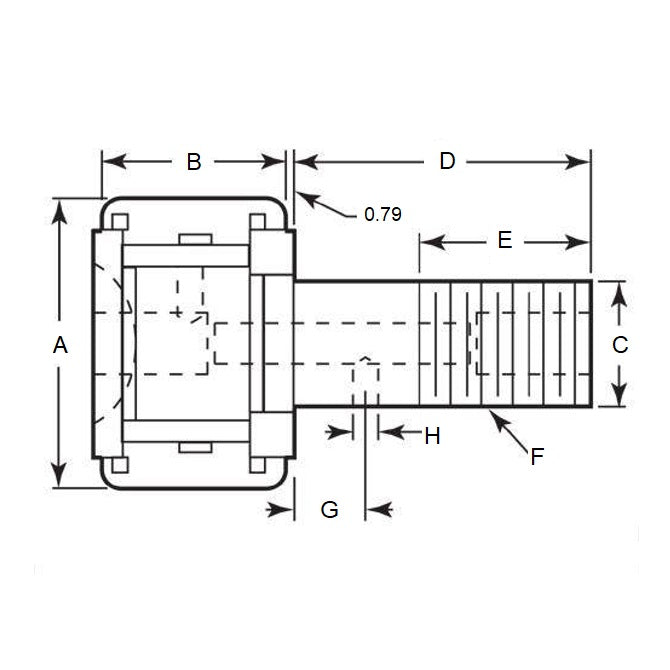

Product Details:Diameter (A): 38.100mm
Stainless
- Length (B+D): 60.325mm
- Thread (F): 5/8-18 UNF
- Thread Length (E): 19.050mm
- Roller Width (B): 22.225mm
- Dynamic Load Rating: 1973kg
- Static Load Rating: 1814kg
- More Information: Please Contact us for more information
Brand: MBA
Country of Origin: US
Alternatives: CCF-390
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
