CIB-03653-C (PK-38)
Internal Retaining Rings - 36.53x1.22x39.17 mm Circlips - Carbon Steel Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
1-7/16 inch Circlip - 36.53x1.22x39.17 mm Internal Retaining Rings - Carbon Steel - Sold per pack of 38:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Bevelled
Product Details

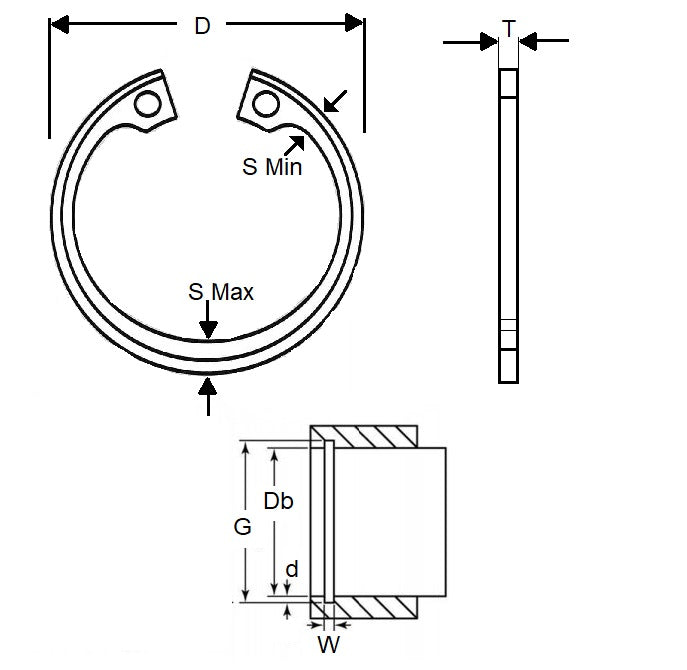

Housing Bore (B): 36.53mm(36.53mm is 1.438 in.)
Carbon Steel
- Housing Bore (B): 36.53mm
(36.53mm is 1.438 in.)
- Clip Thickness (T): 1.22mm
+/- 0.05
(1.22mm is 0.048 in.)
- Groove Dia. (Dg): 39.17mm
+ 0.10 / - 0.00
(39.17mm is 1.542 in.)
- Approx. Loose Circlip OD (Dr): 40.03mm
+ 1.14 / - 0.00
- Groove Width (W): 1.02mm
+ 0.03 / - 0.00
- Tool: PRS-I070
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- NoCor® VHO-143
- VHO143
- N13020143
- N1302-0143
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CIB03653C, CIB03653
