RPI-365-366-C (PK-500)

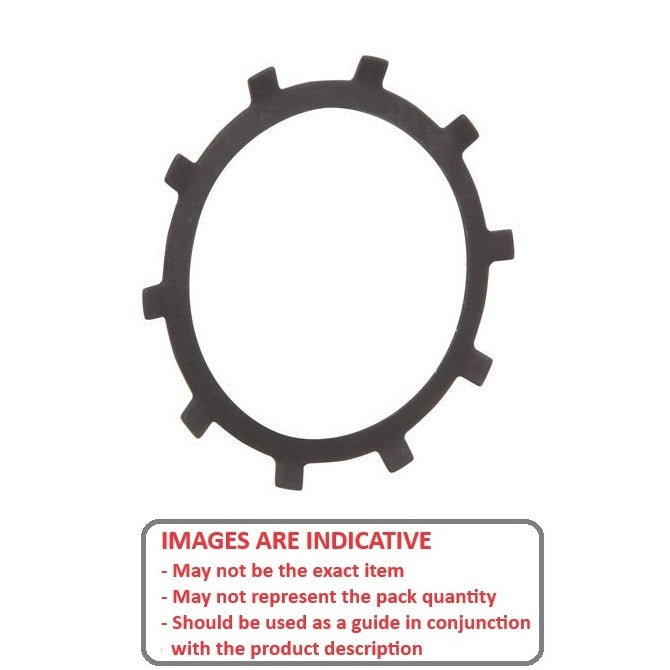

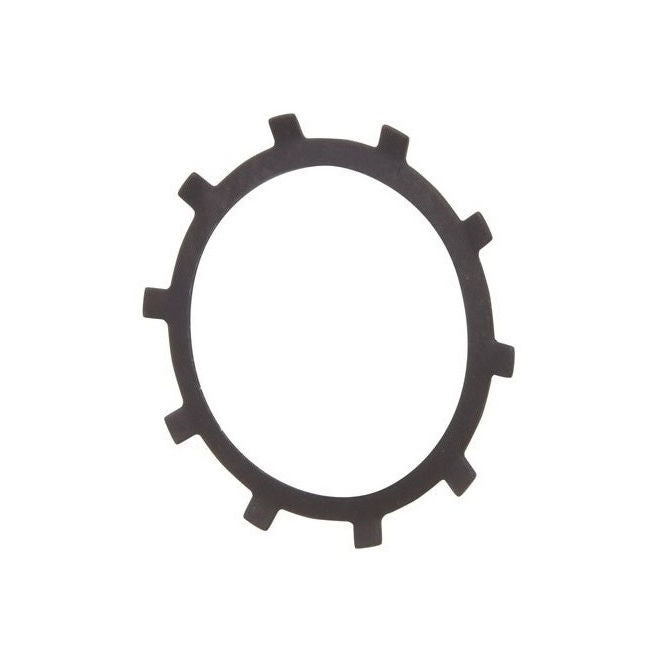

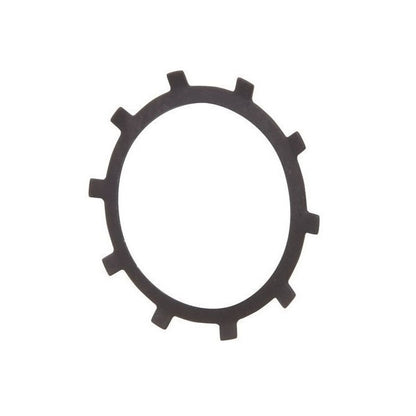

Push In Carbon Steel Retaining Rings - 36.45x36.55x28.58 mm - Carbon Spring Steel Self Finish
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 500 (25000 pcs)
for $537.91 AUD per 500 pack
36.45x36.55x28.58 mm Push In Carbon Steel Retaining Rings - Carbon Spring Steel Self Finish - Sold per pack of 500:
Base Category: Retaining Rings - Push In Carbon Steel
Top Level Category: Retaining Rings - Push In Carbon Steel
Product Details

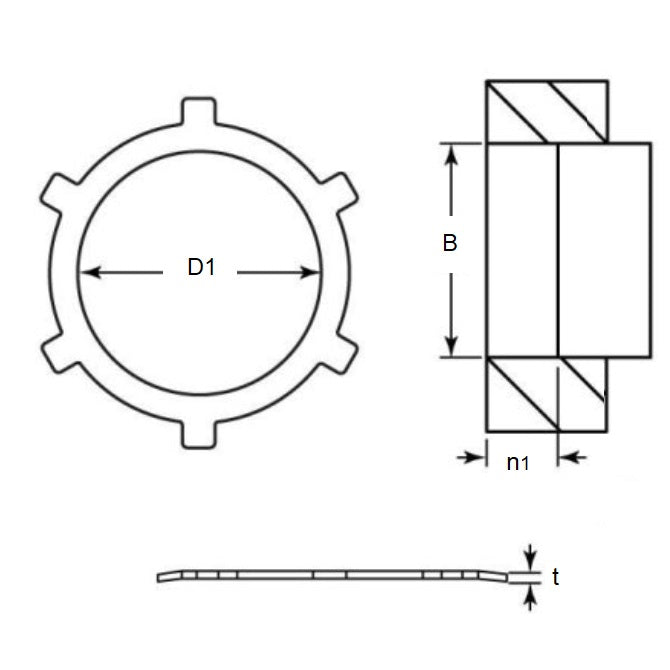

Housing Bore (B) Min: 36.45mm(36.45mm is 1.435 in.)
Carbon Spring Steel Self Finish
- Housing Bore (B) Min: 36.45mm
(36.45mm is 1.435 in.)
- Housing Bore (B) Max: 36.55mm
(36.55mm is 1.439 in.)
- Inside Clearance (D1): 28.58mm
+ / - 0.50
(28.58mm is 1.125 in.)
- Thickness (t): 0.38mm
+/- 0.06
- Recommended Depth (n1): 1.52mm
- Thrust Load: 829kg.cm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® TI-143
- NoCor® TI-143
- TI143
- S73PH1PIR005144
- S73PH1-PIR005144
- N13050143APP
- N1305-0143-APP
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RPI365366C, RPI365
