RPI-317-318-Z (PK-500)

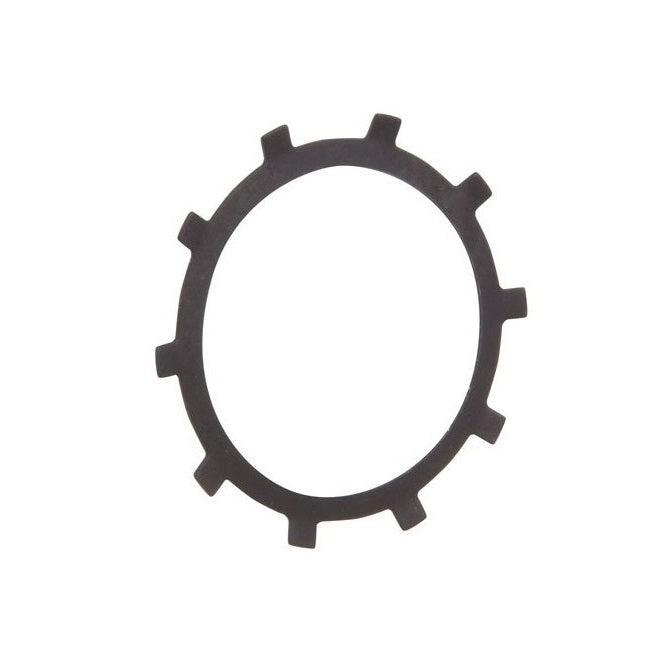

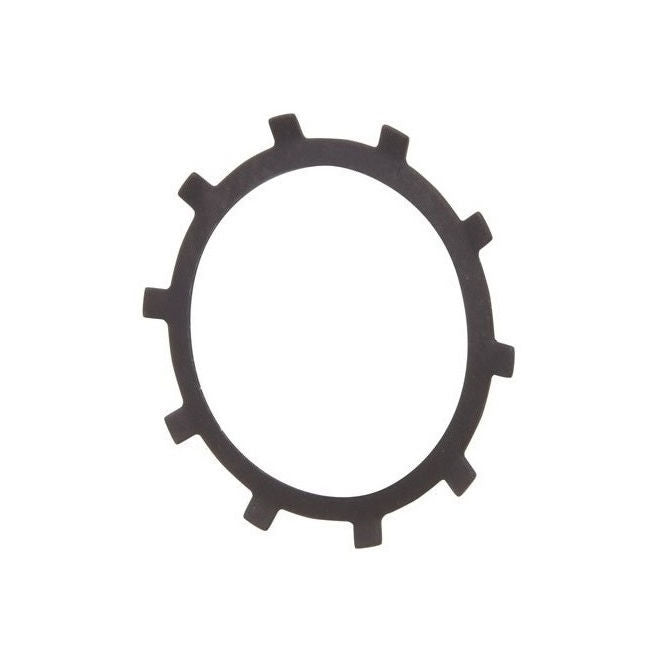

Push In Carbon Steel Retaining Rings - 31.7x31.8x23.83 mm - Steel Zinc Plated Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 500 (25000 pcs)
for $554.77 AUD per 500 pack
1-1/4x1-1/4x15/16 inch Ring - 31.7x31.8x23.83 mm Push In Carbon Steel Retaining Rings - Steel Zinc Plated - Sold per pack of 500:
Base Category: Retaining Rings - Push In Carbon Steel
Top Level Category: Retaining Rings - Push In Carbon Steel
Product Details

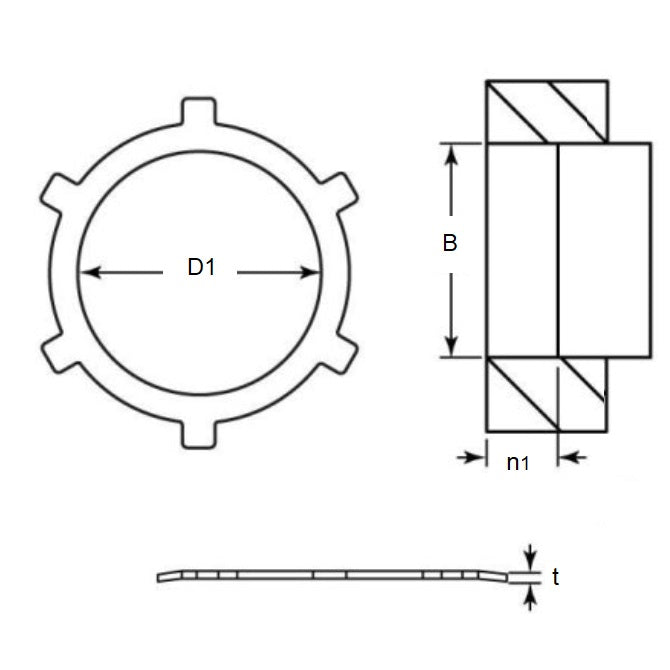

Housing Bore (B) Min: 31.70mm(31.70mm is 1.248 in.)
Steel Zinc Plated
- Housing Bore (B) Min: 31.70mm
(31.70mm is 1.248 in.)
- Housing Bore (B) Max: 31.80mm
(31.80mm is 1.252 in.)
- Inside Clearance (D1): 23.83mm
+ / - 0.26
(23.83mm is 0.938 in.)
- Thickness (t): 0.38mm
+/- 0.06
- Recommended Depth (n1): 1.52mm
- Thrust Load: 829kg.cm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® TI-125-ZD
- NoCor® TI-125-ZD
- TI125ZD
- S73PH1-PIR005125
- S73PH1PIR005125
- N13050125APP
- N1305-0125APP
- N1305-0125-APP
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RPI317318Z, RPI317
